Home >> Pontiac >> 1997 >> Sunfire L4-2.2L VIN 4 >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Compressor HVAC >> Direct Mounted

Direct Mounted

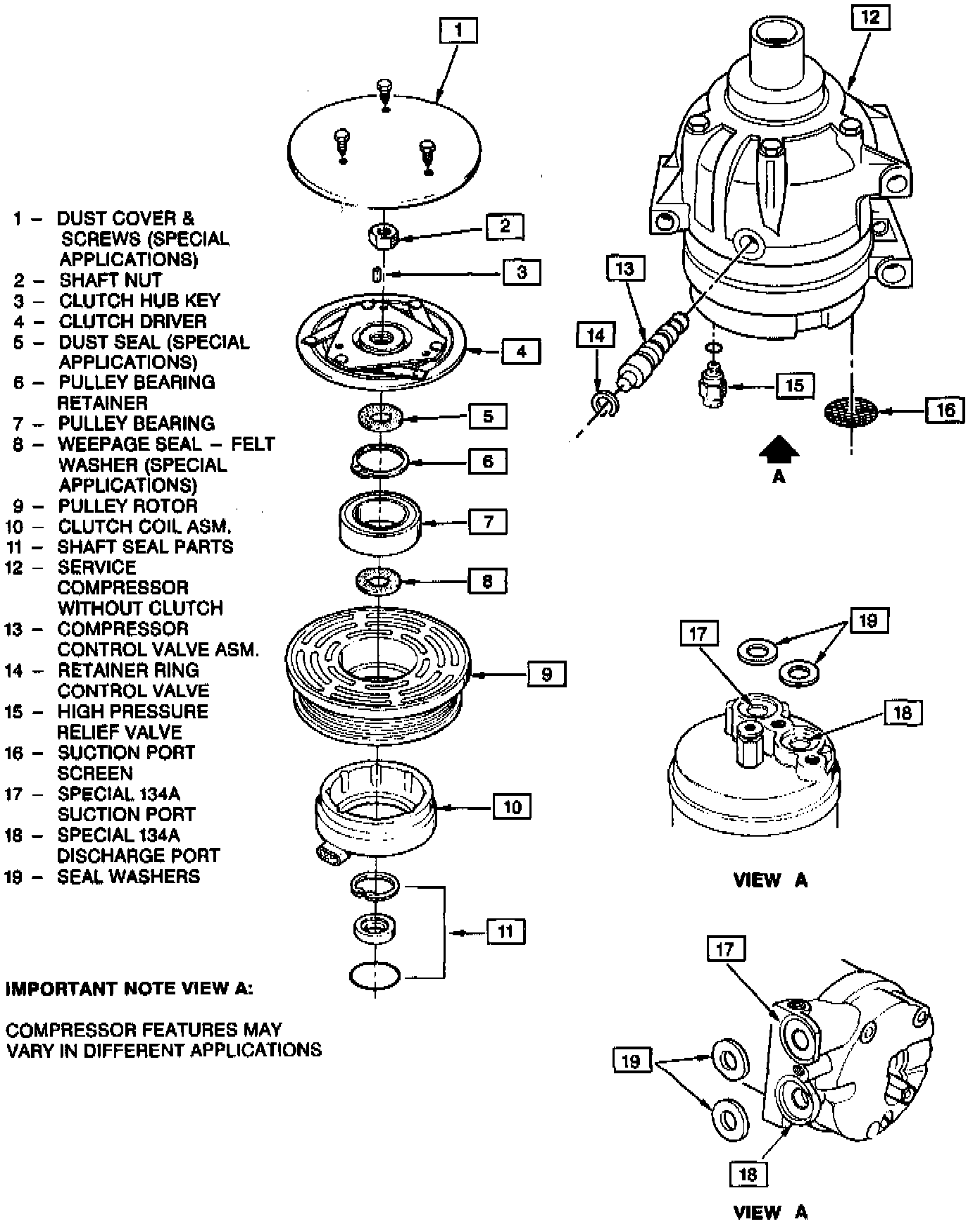

Compressor Components - Disassembled View:
