Control Module HVAC: Service and Repair

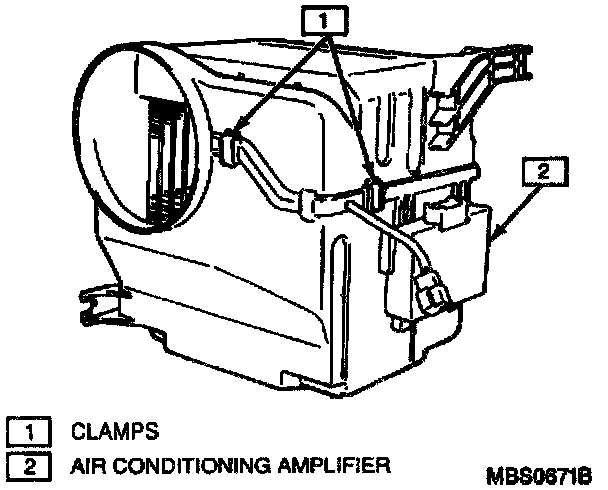

A/C Amplifier:

Remove or Disconnect

1. Negative (-) battery cable.
2. A/C amplifier from evaporator case; unsnap and slide A/C amplifier up and remove from case.
3. A/C amplifier electrical connector and remove from vehicle.

Install or Connect

1. A/C amplifier to vehicle; connect electrical connector.
2. A/C amplifier to evaporator case; slide and snap into place.
3. Negative (-) battery cable.
