Home >> Pontiac >> 1996 >> Firefly (CANADA) L4-1.3L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module >> C2

C2

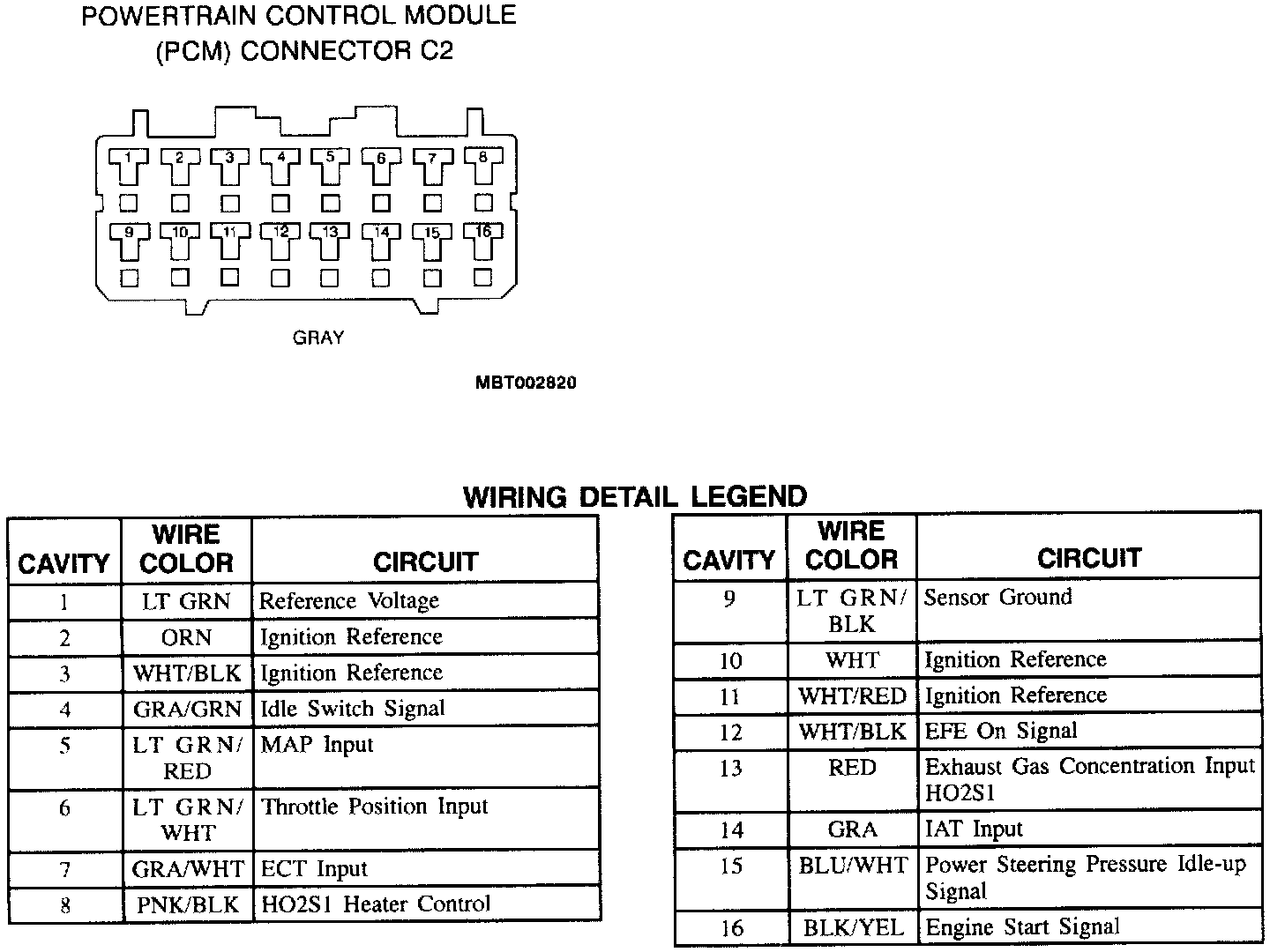

Powertrain Control Module (PCM) Connector C2:
