Home >> Pontiac >> 1995 >> Sunfire L4-2.2L VIN 4 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module >> C1 >> Pinout Description

Pinout Description

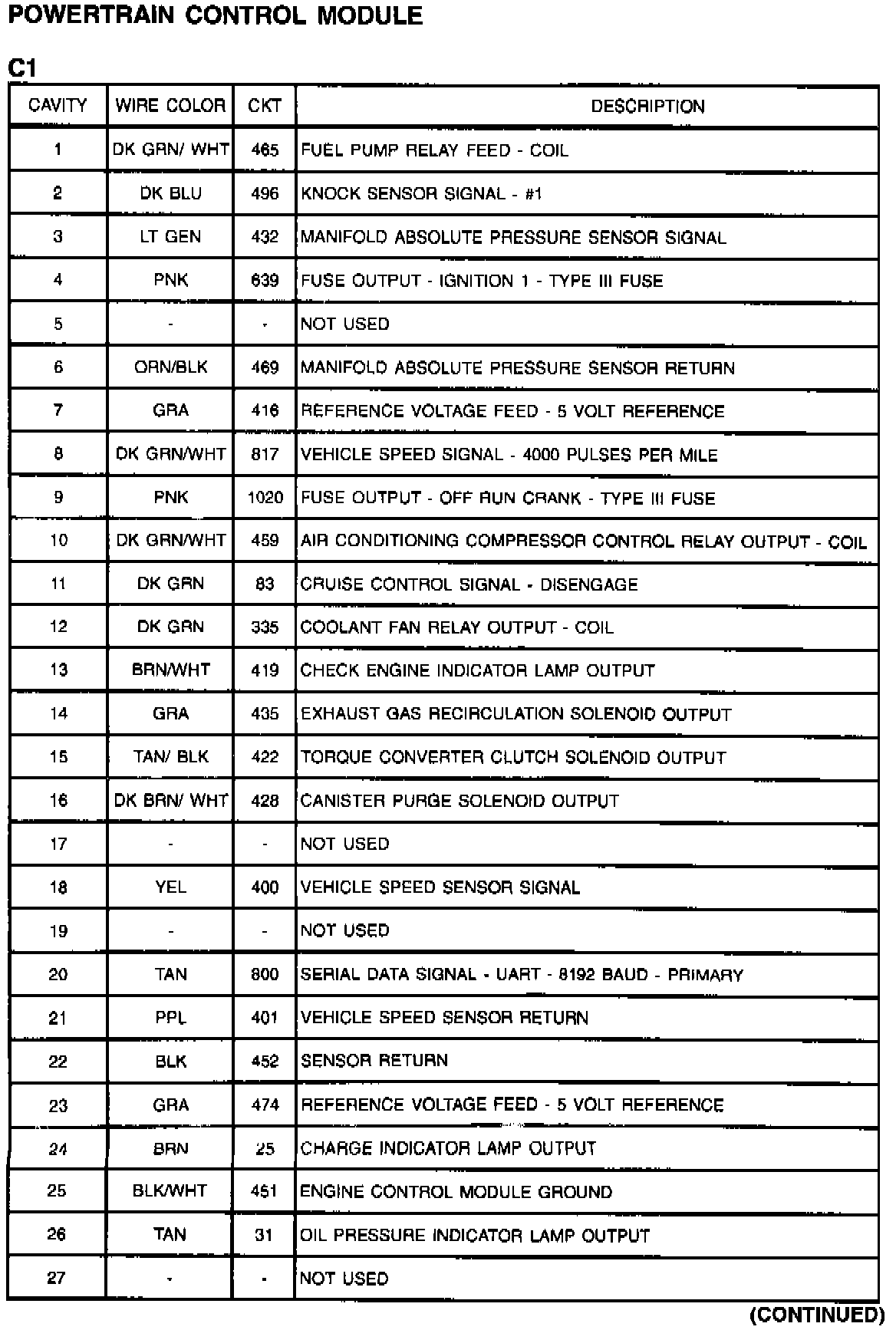

Powertrain Control Module: C1 (Part 1 Of 2):

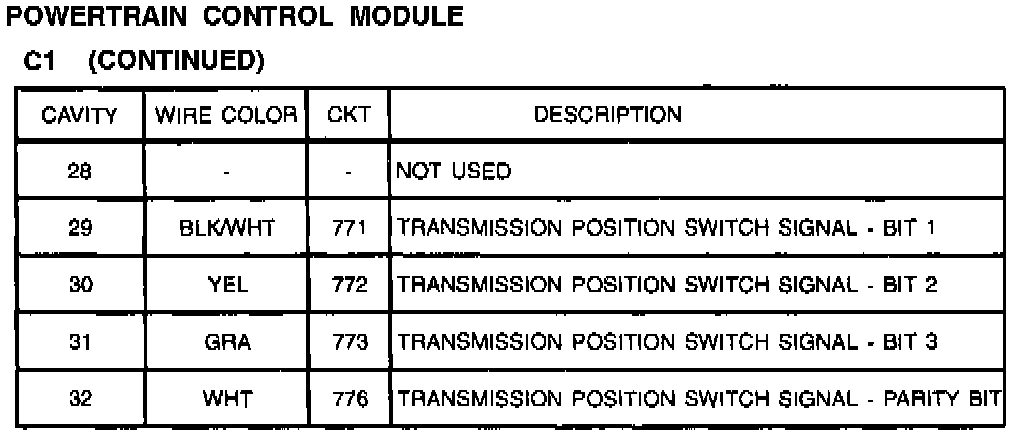

Powertrain Control Module: C1 (Part 2 Of 2):
