Home >> Pontiac >> 1995 >> Sunfire L4-2.2L VIN 4 >> Repair and Diagnosis >> Diagrams >> Components >> Miscellaneous Components >> MAT Sensor Lead

MAT Sensor Lead

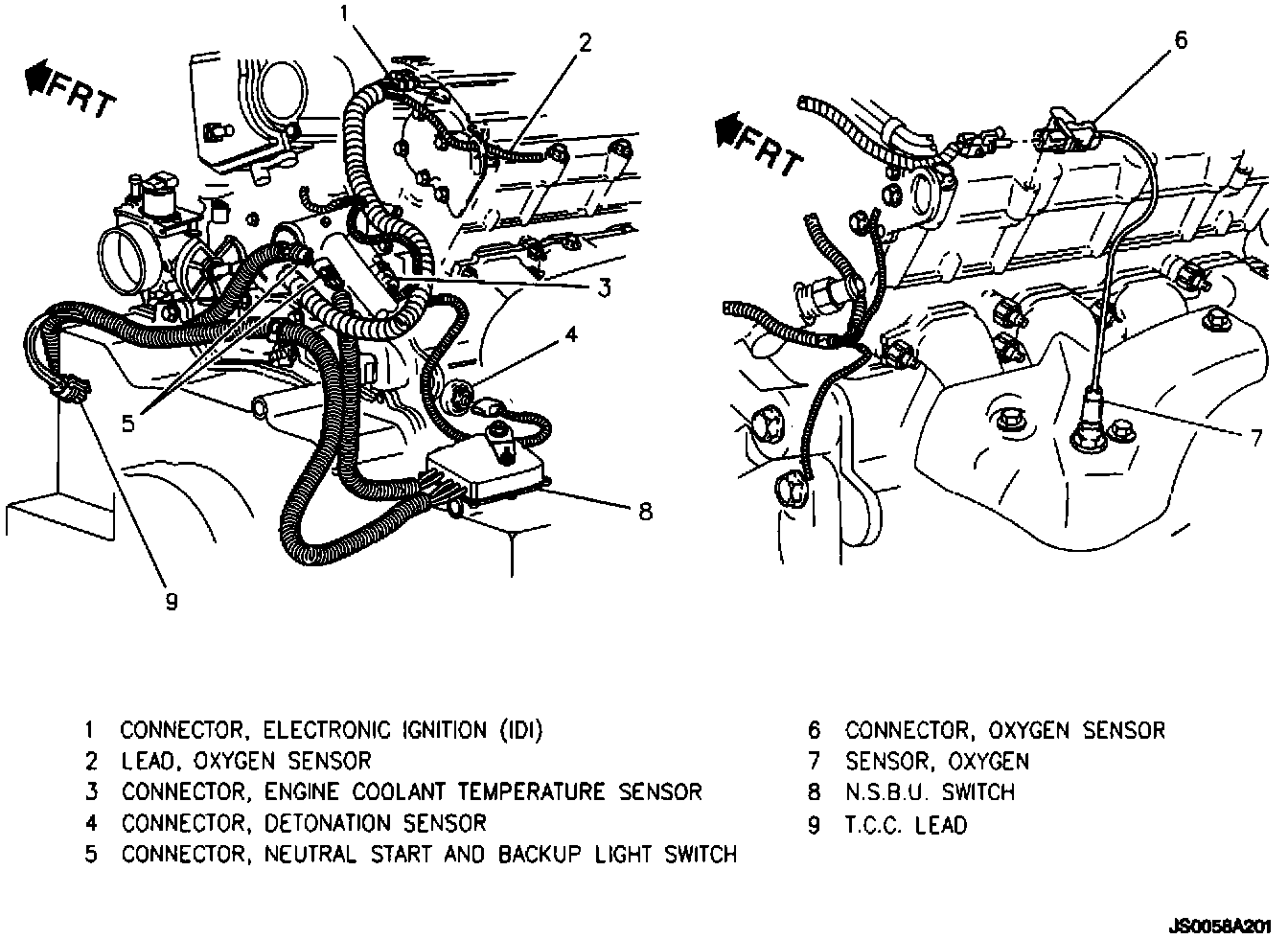

LH Front Of Engine/Transaxle:

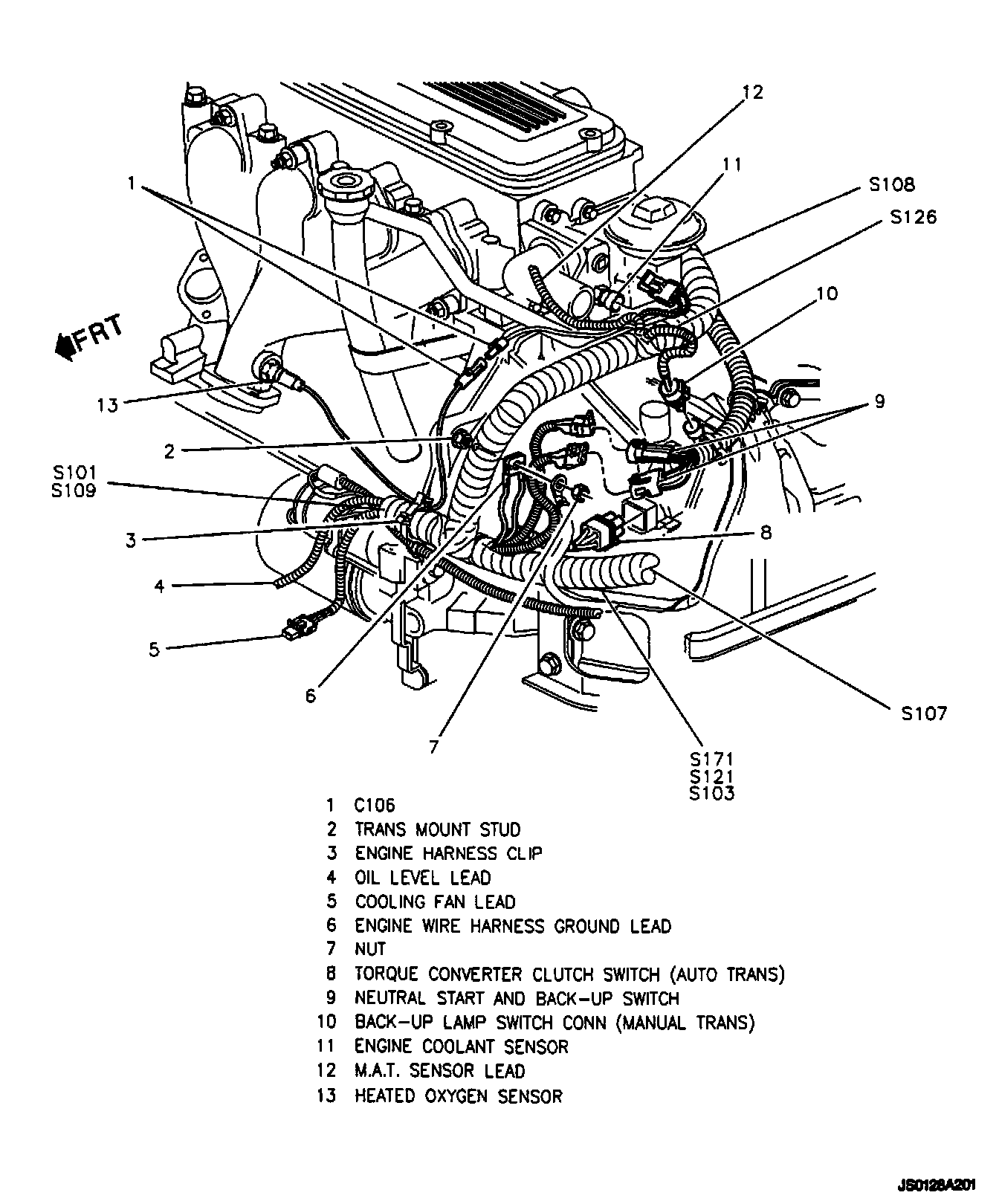

LH Rear Of Engine:
