Pontiac
>>
1995
>>
Sunfire L4-2.2L VIN 4
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
>>
Miscellaneous Components
>>
Fuse/Relay Center
Fuse/Relay Center

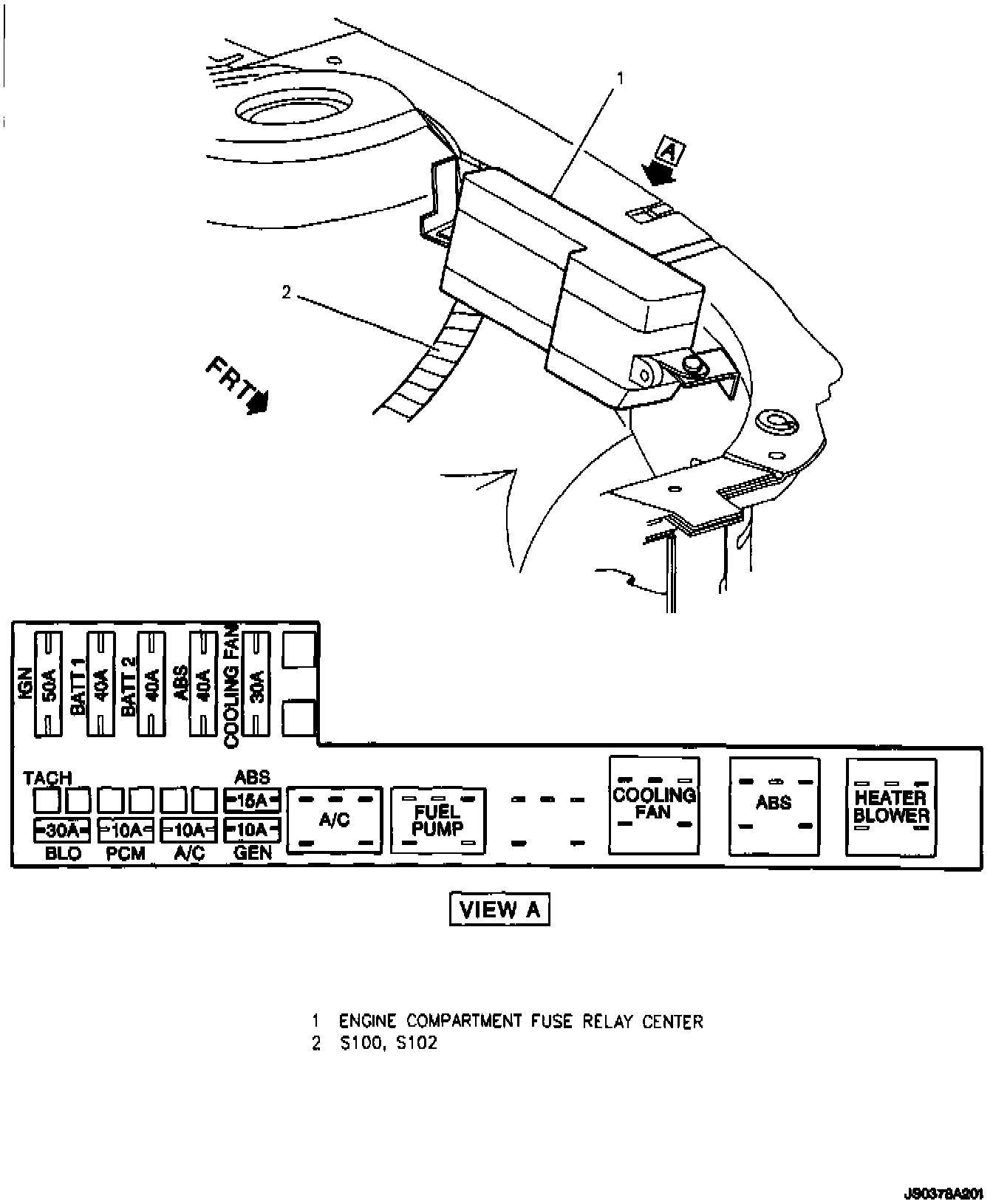

LH Front Of Engine Compartment:

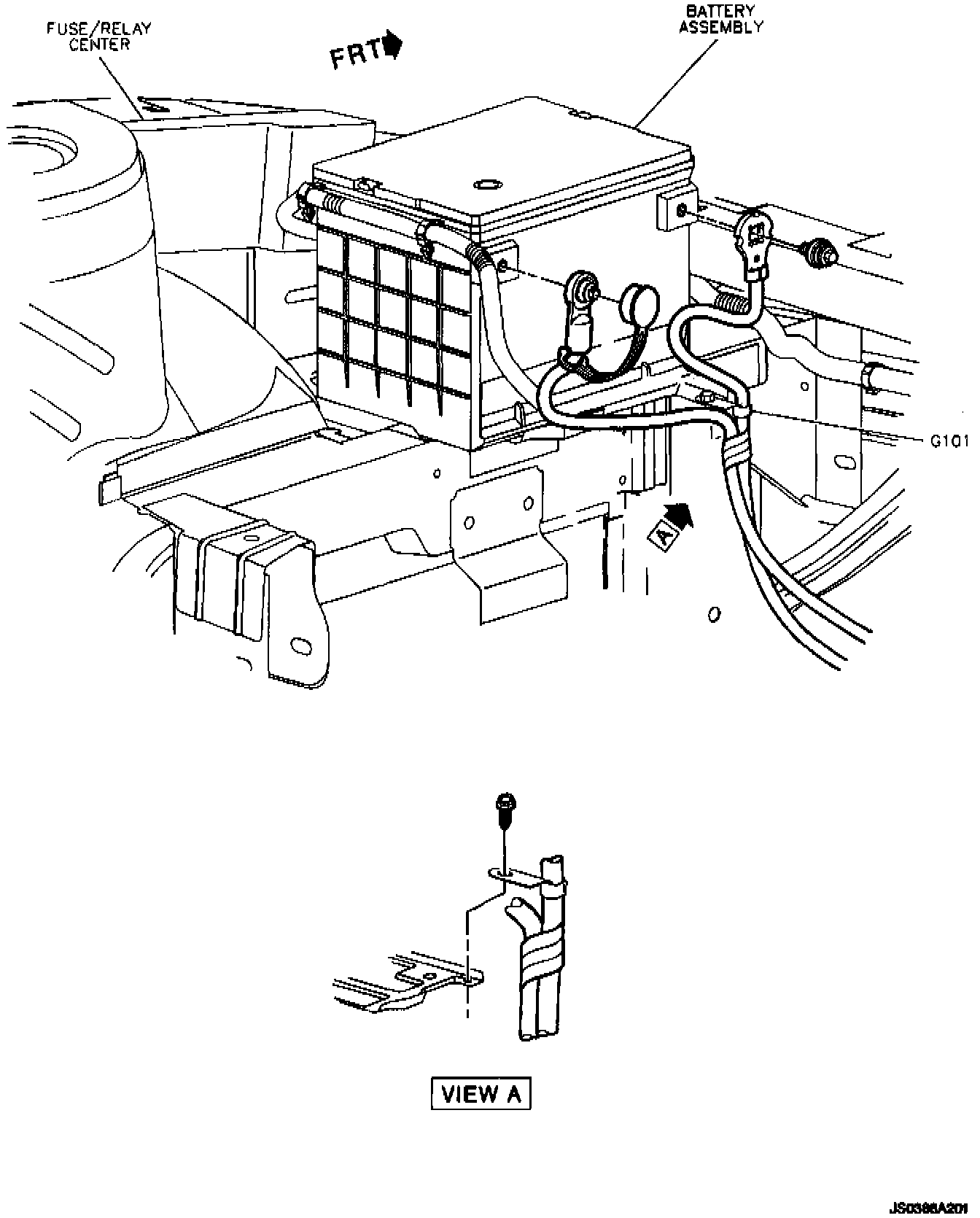

LH Center Of Engine Compartment:
