Pontiac
>>
1995
>>
Sunfire L4-2.2L VIN 4
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
>>
Miscellaneous Components
>>
A/C Compressor
A/C Compressor

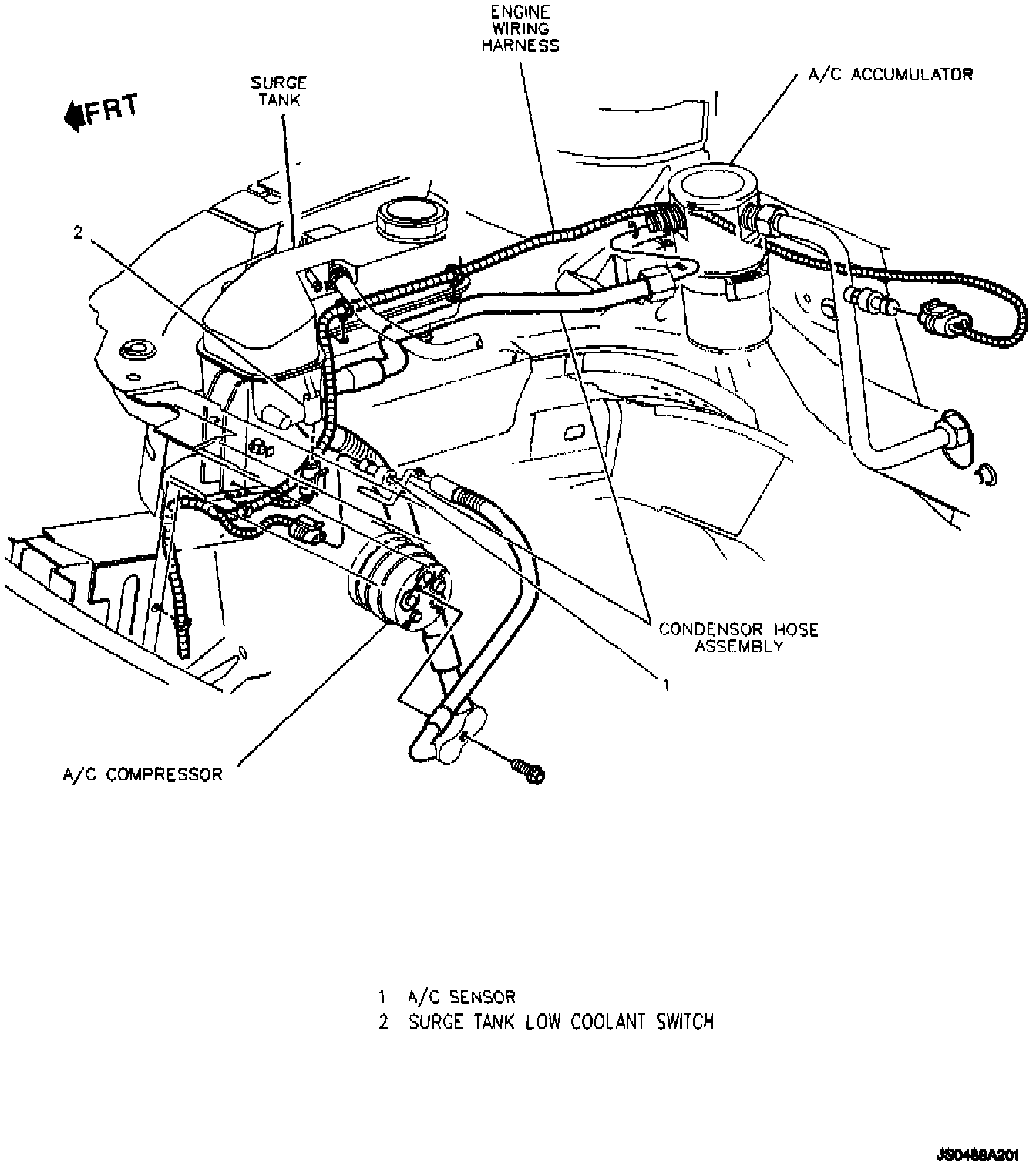

RH Side Of Engine Compartment:

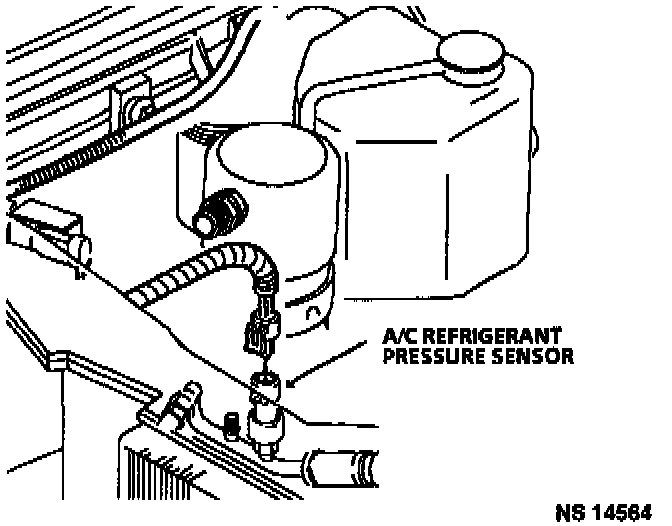

A/C Refrigerant Pressure Sensor Location:
