Home >> Pontiac >> 1994 >> J2000/Sunbird L4-121 2.0L >> Repair and Diagnosis >> Diagrams >> Components >> Miscellaneous Components >> Fuse Block

Fuse Block

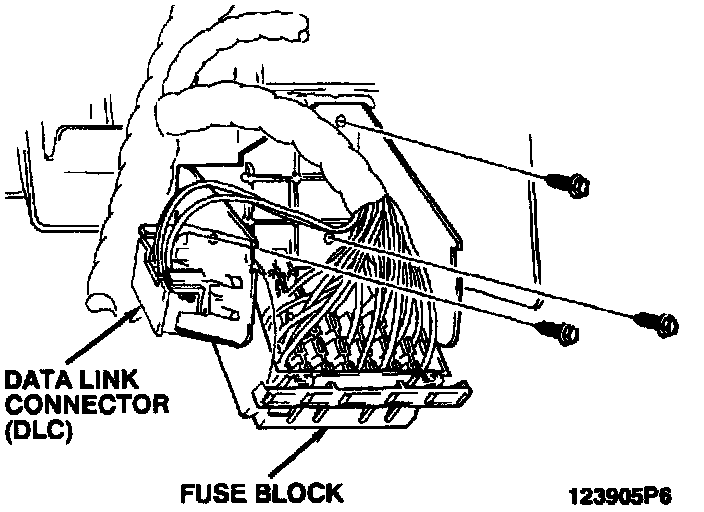

Behind LH Side Of I/P:

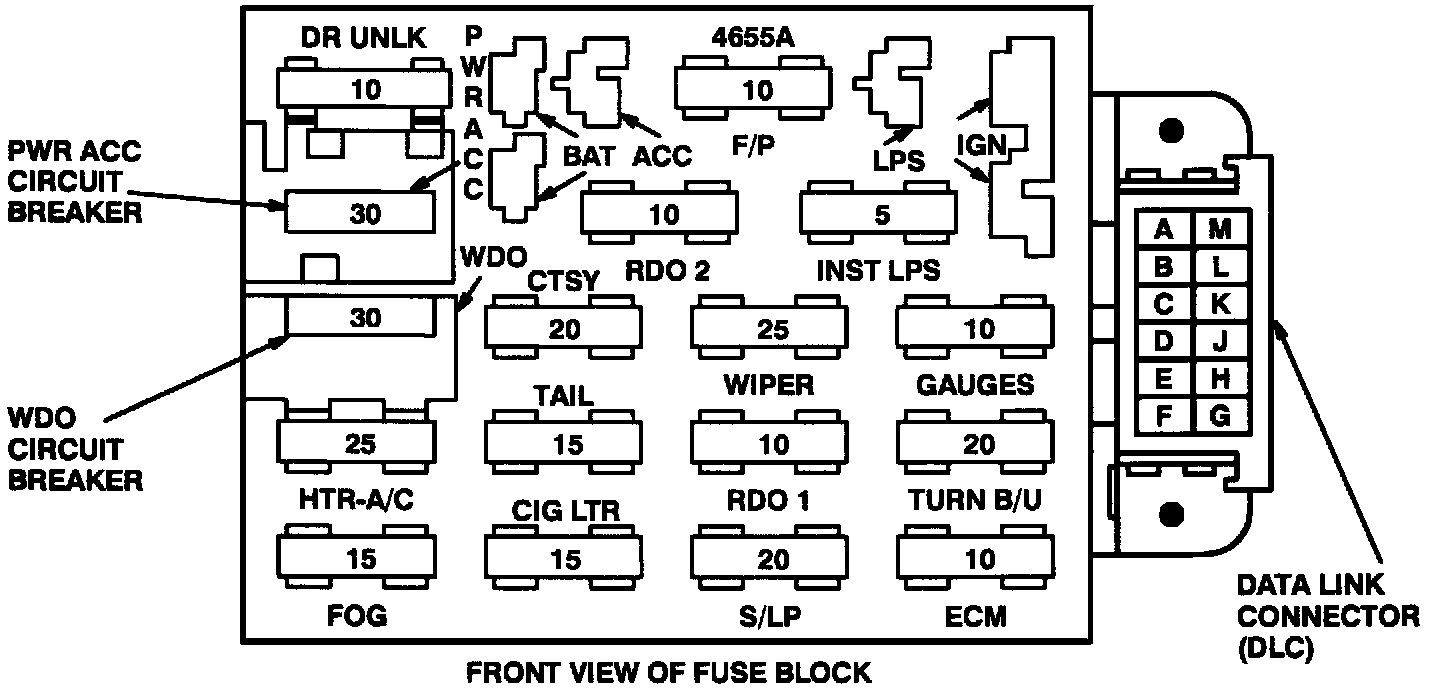

Fuse Block Details: Front View Of Fuse Block:
