Home >> Pontiac >> 1994 >> Firebird V8-350 5.7L >> Repair and Diagnosis >> Specifications >> Electrical Specifications >> Engine Control Module >> Connector A (Red)

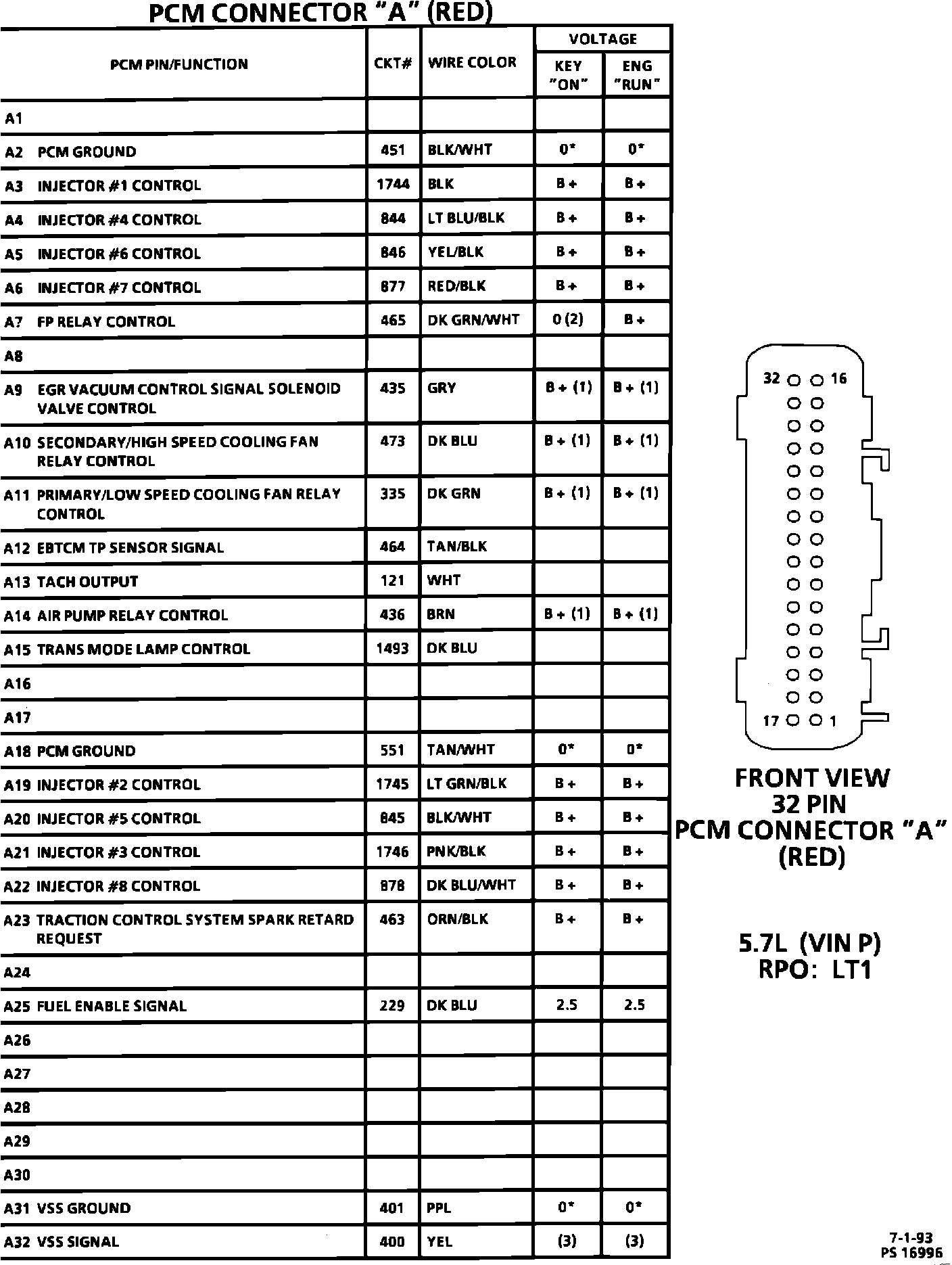

Connector A (Red)

PCM Terminal Voltage:
