Home >> Pontiac >> 1994 >> Firebird V8-350 5.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module >> Connector A >> Pinout Description

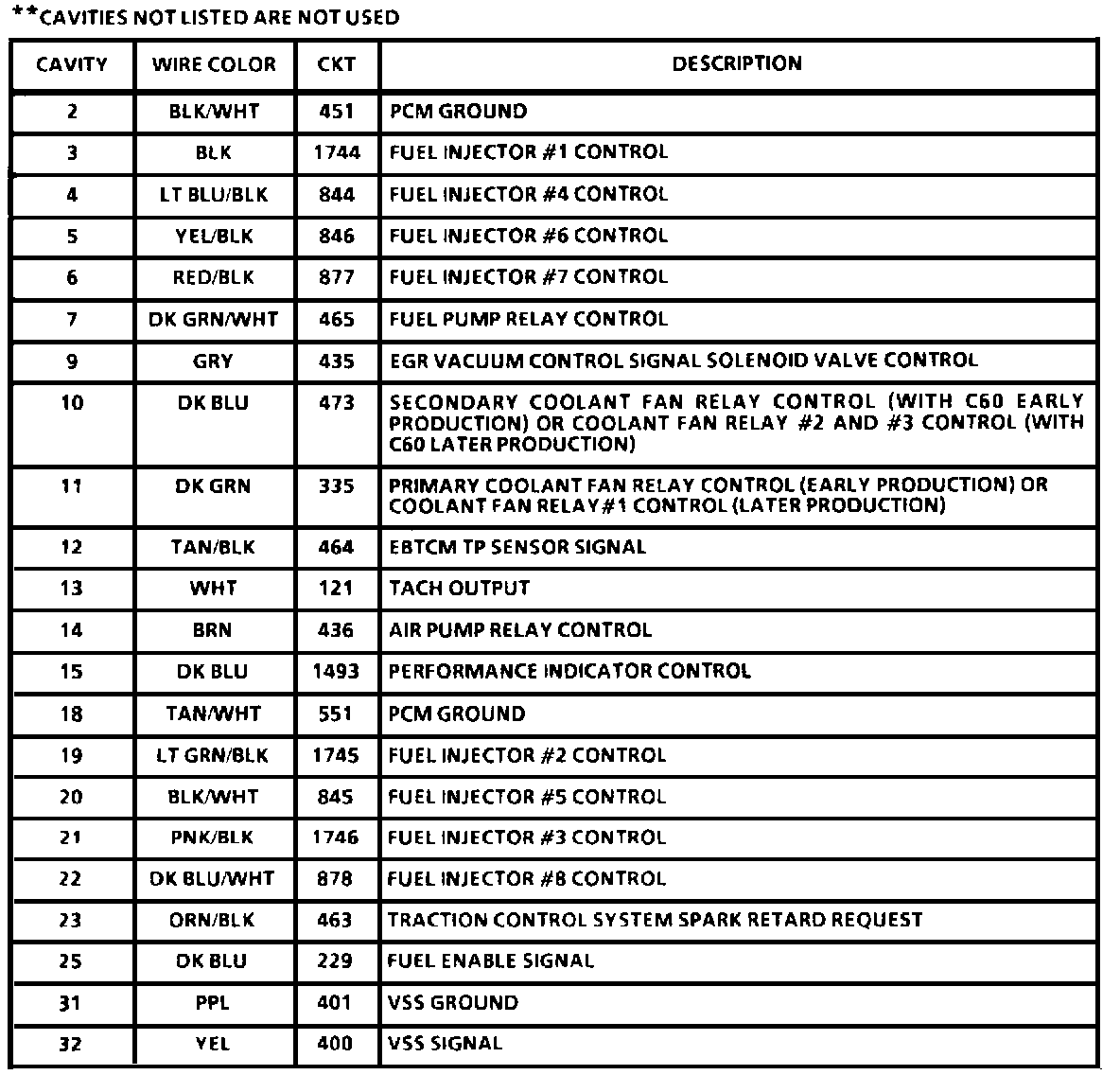

Pinout Description

Powertrain Control Module (PCM): A:
