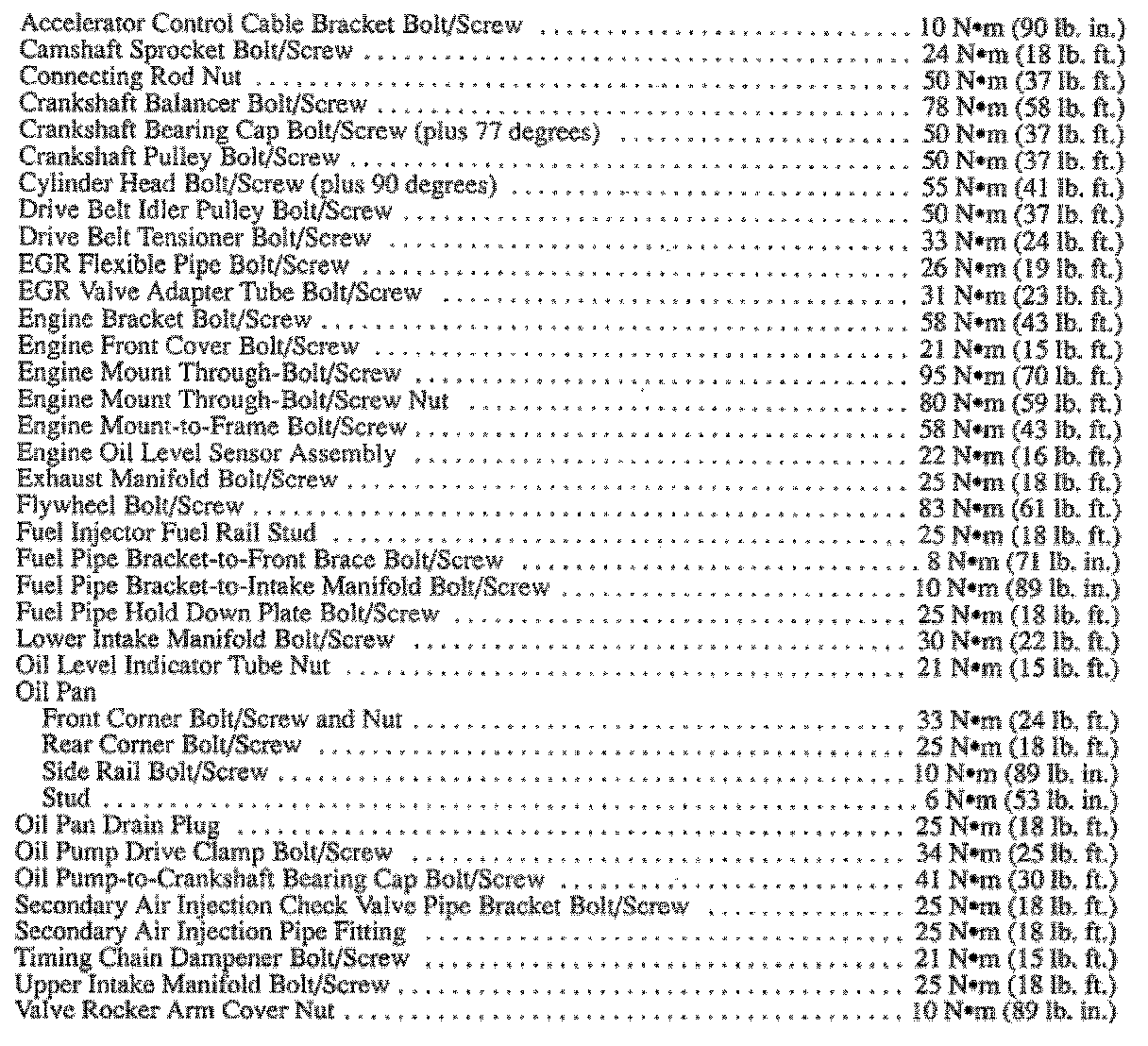

Engine Specifications


Notice: This component uses torque-to-yield bolts. When servicing this component, do not re-use the bolts. New torque-to-yield bolts must be installed. Re-using used torque-to-yield bolts will not provide proper bolt torque and clamp load. Failure to install NEW torque-to-yield bolts may lead to engine damage.

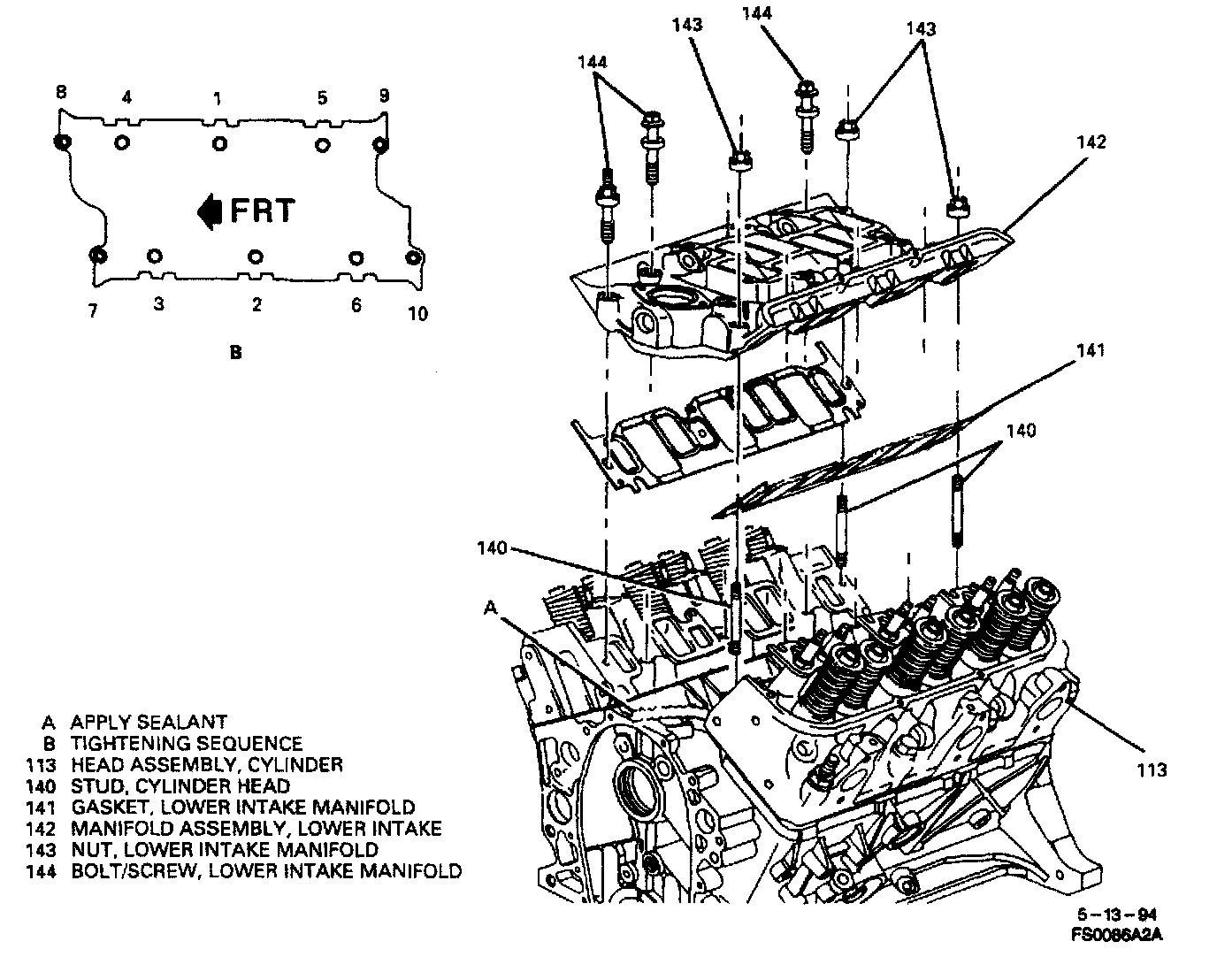

Lower Intake Manifold Tightening Sequence:

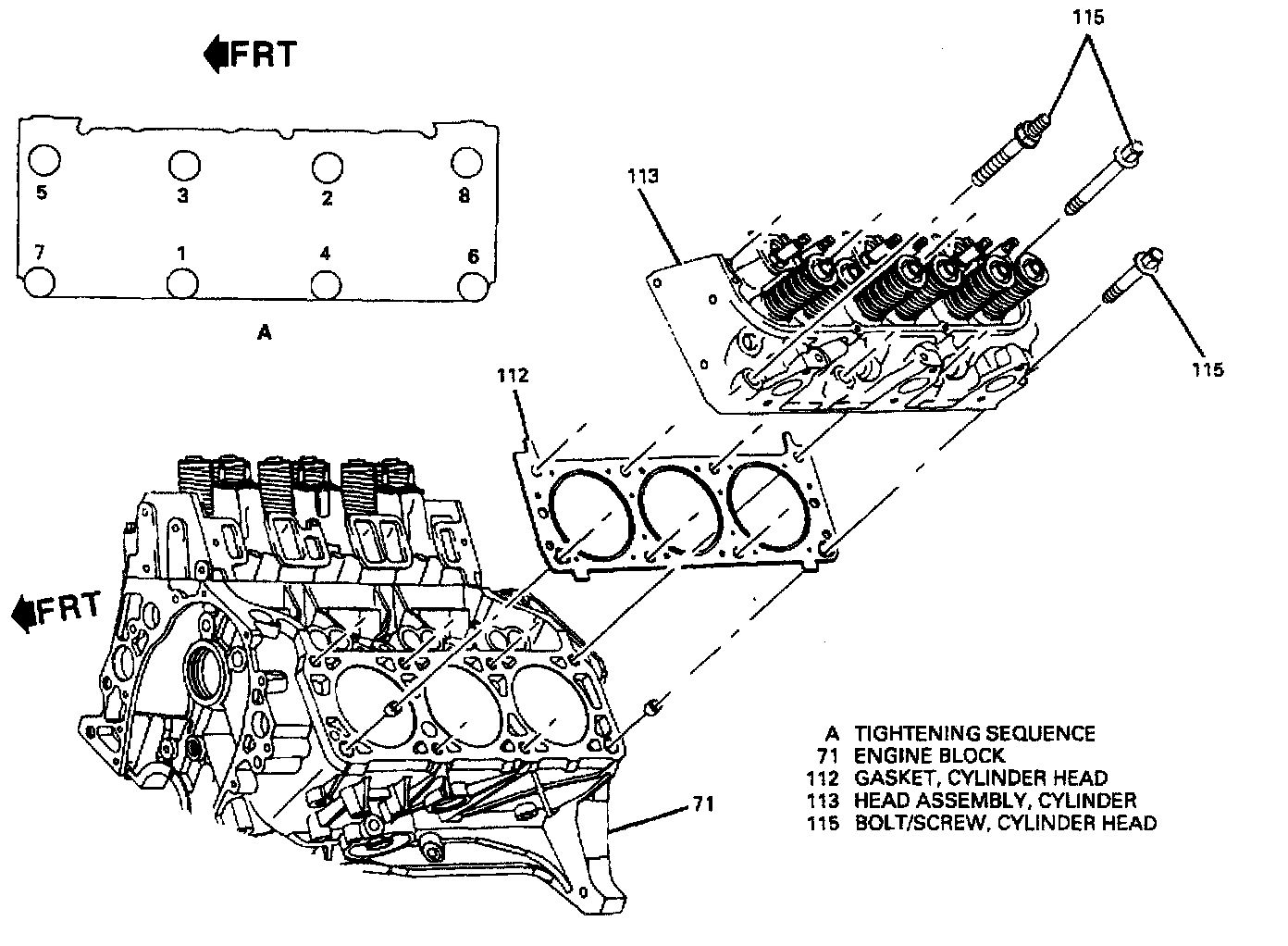

Cylinder Head Tightening Sequence:
