Firebird V6-204 3.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Engine
>>
System Diagram
>>

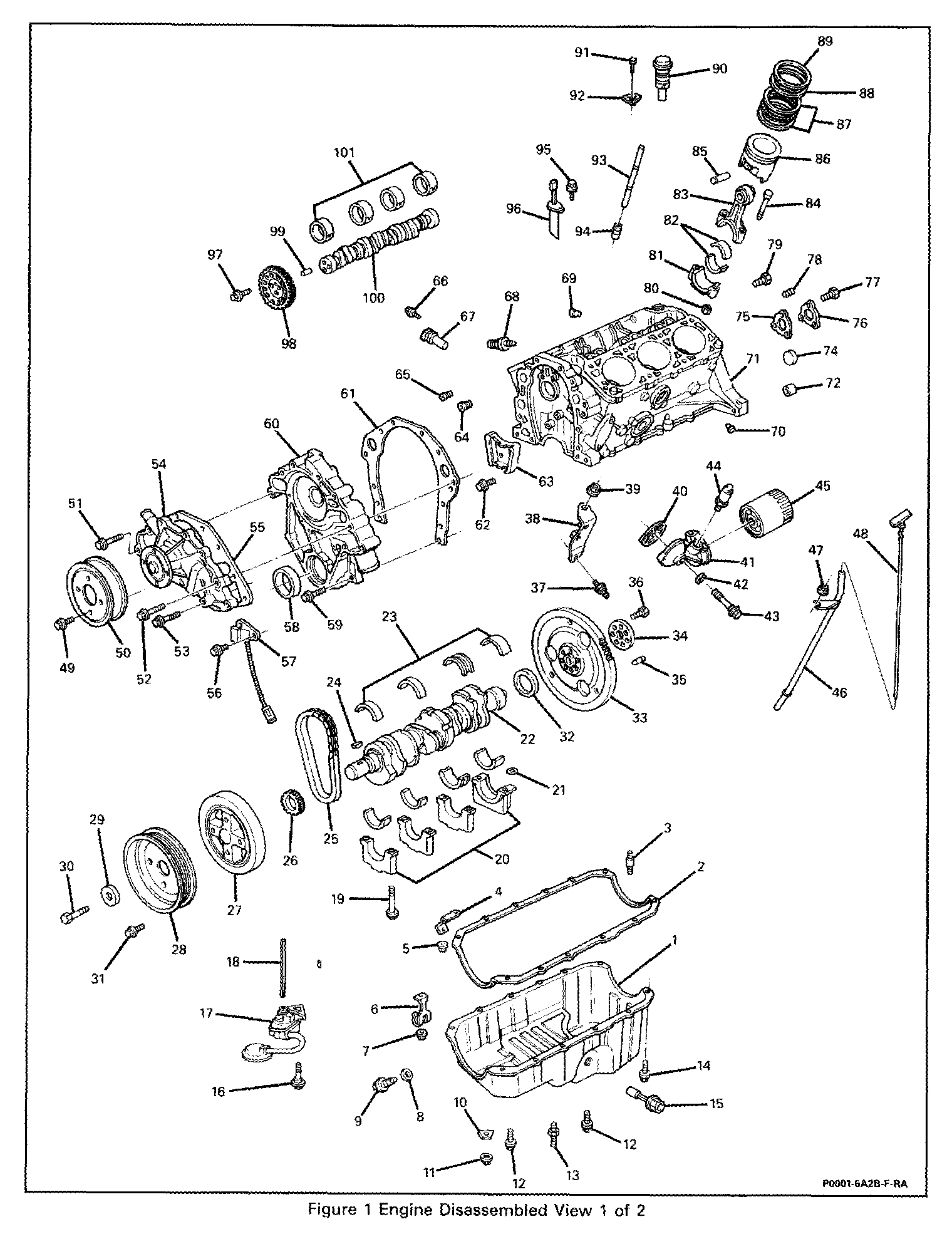

Exploded Views With Numbered Components

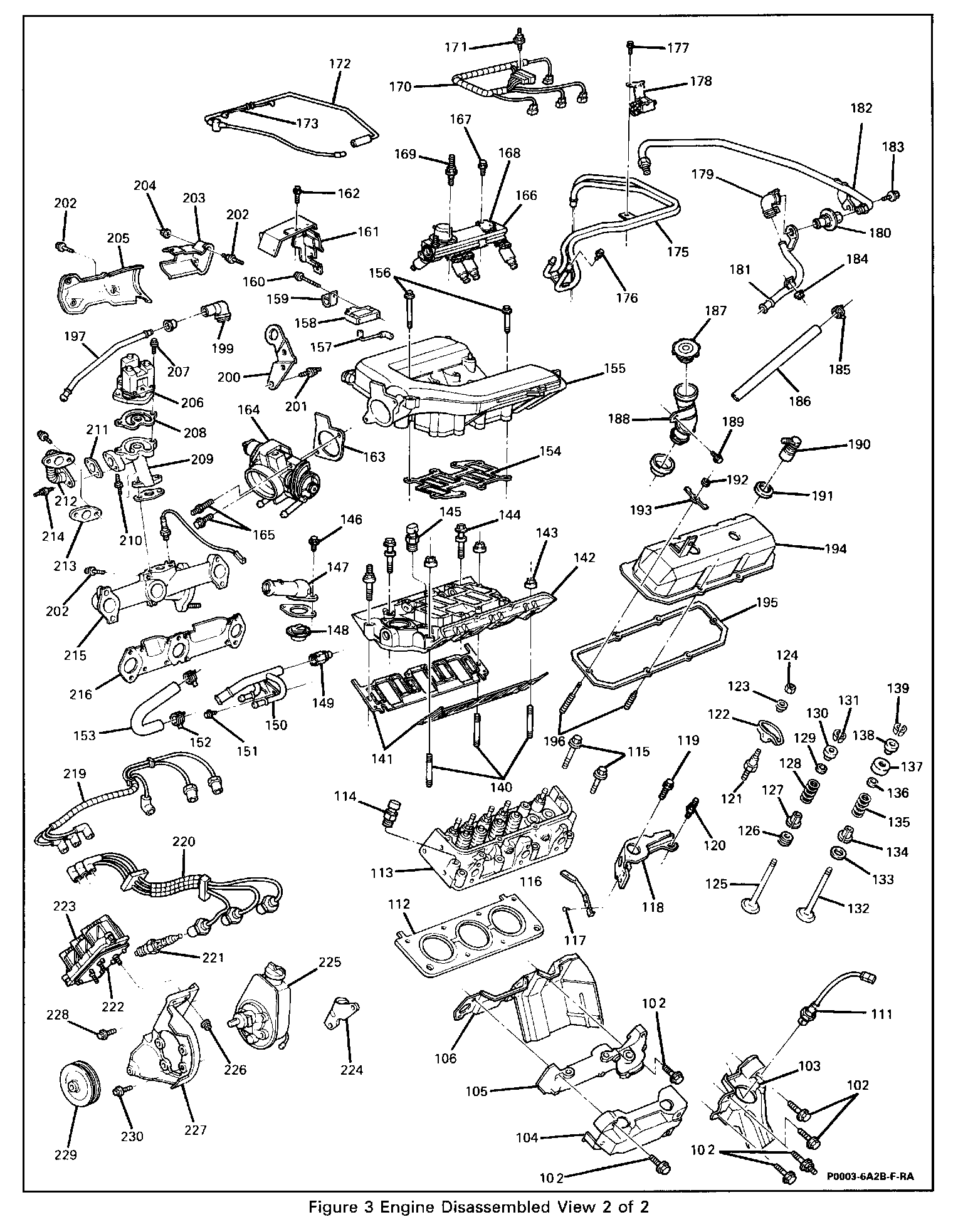

Exploded Views With Numbered Components
