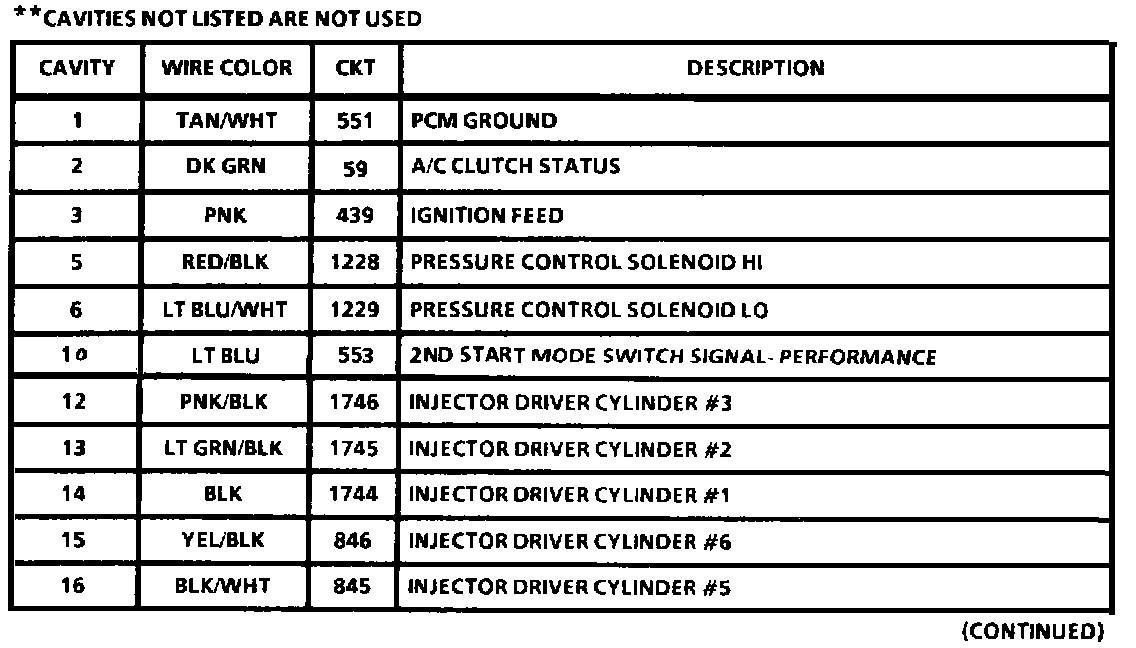

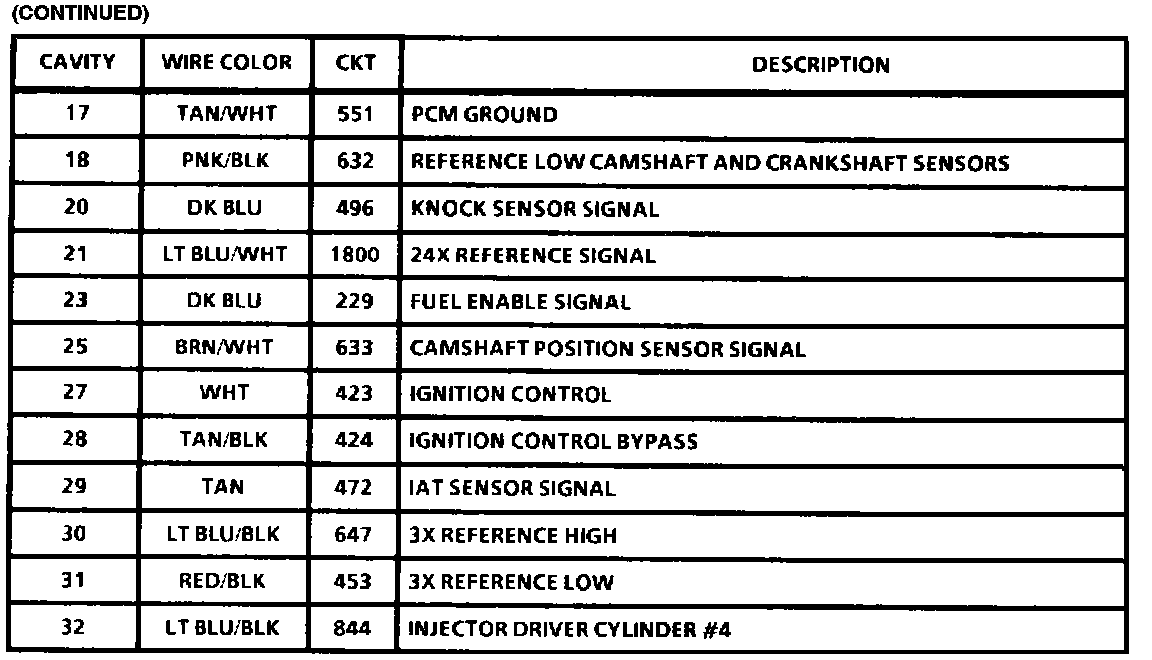

Pinout Description
Pinout Description
Powertrain Control Module (PCM): C:
Powertrain Control Module (PCM): C:
