Home >> Pontiac >> 1993 >> J2000/Sunbird L4-121 2.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Electronic Brake Control Module

Electronic Brake Control Module

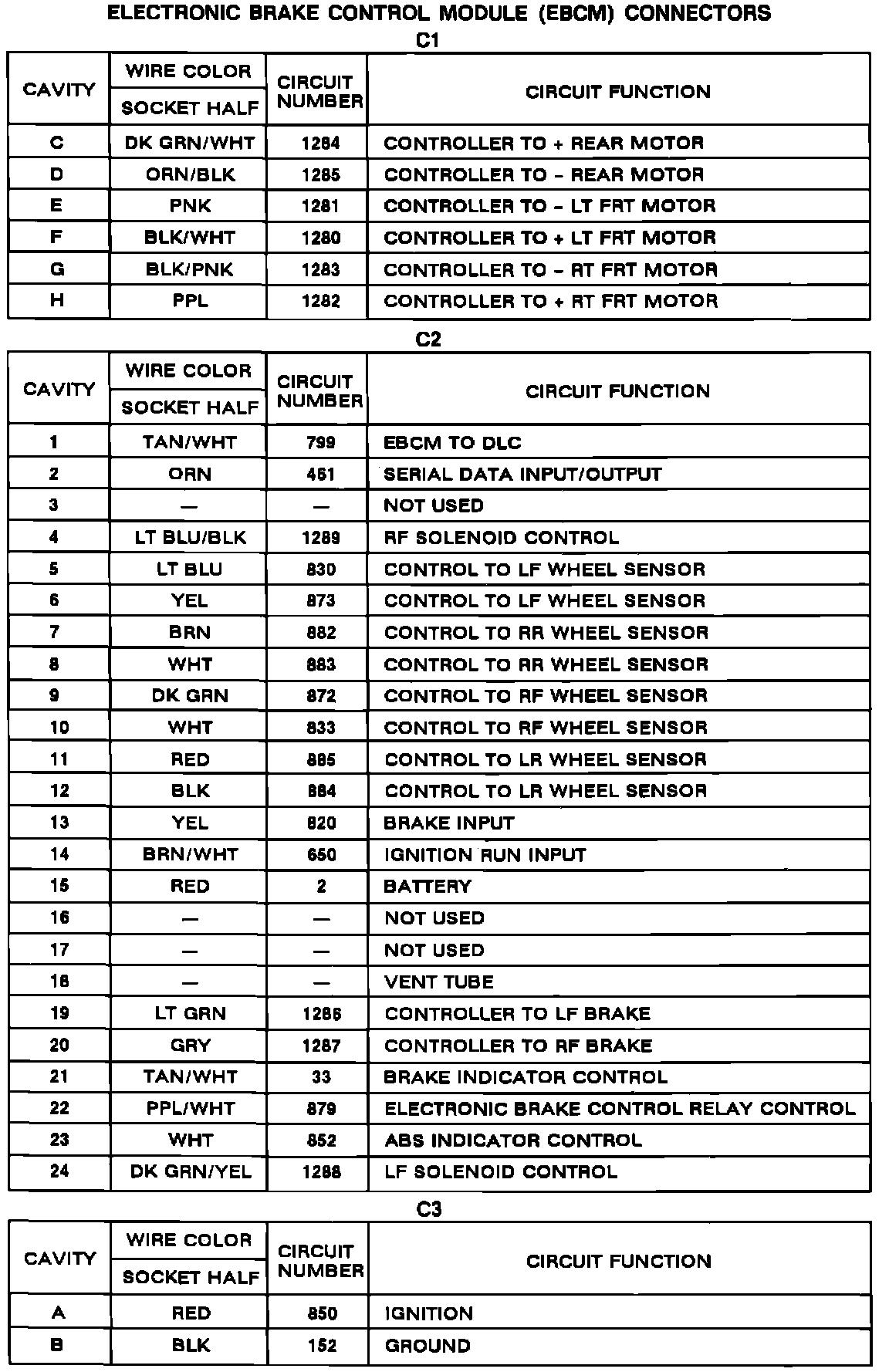

Electronic Brake Control Module Connector:

Electronic Brake Control Module Connector:
