Home >> Pontiac >> 1993 >> Firebird V8-350 5.7L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications

System Specifications

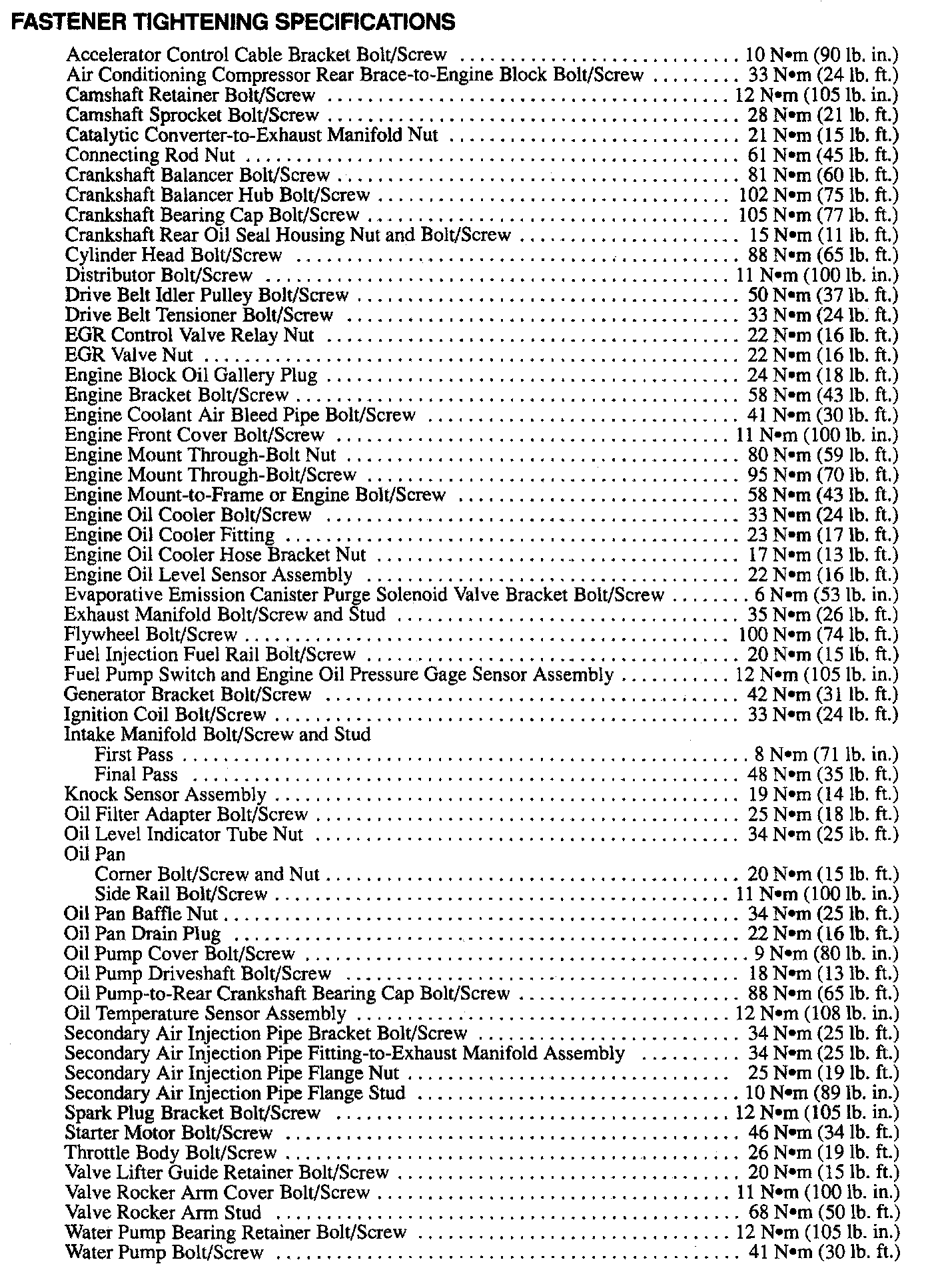

Torque Specifications:

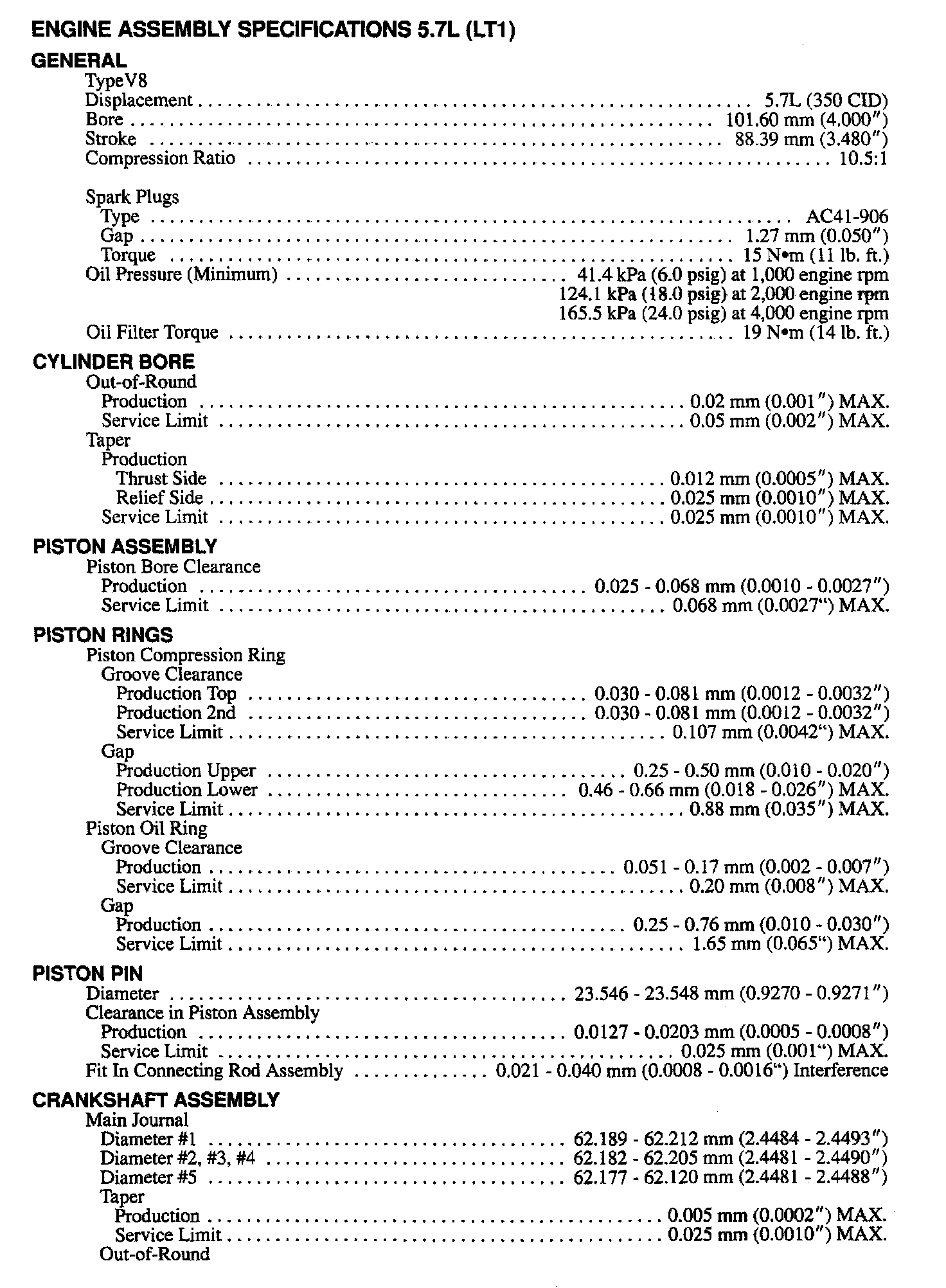

Engine Specifications:

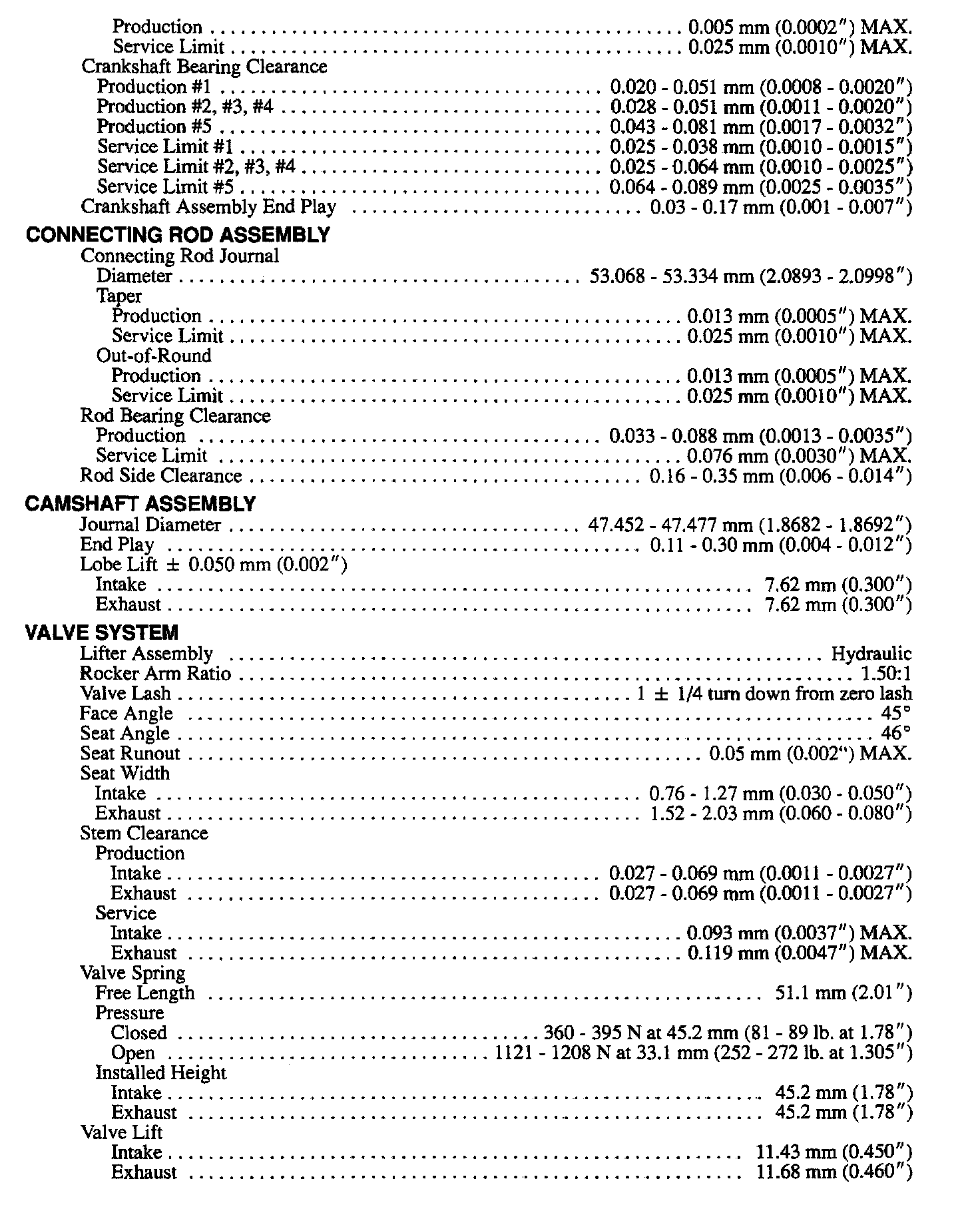

Continued Engine Specifications:






Intake Manifold Sequence:

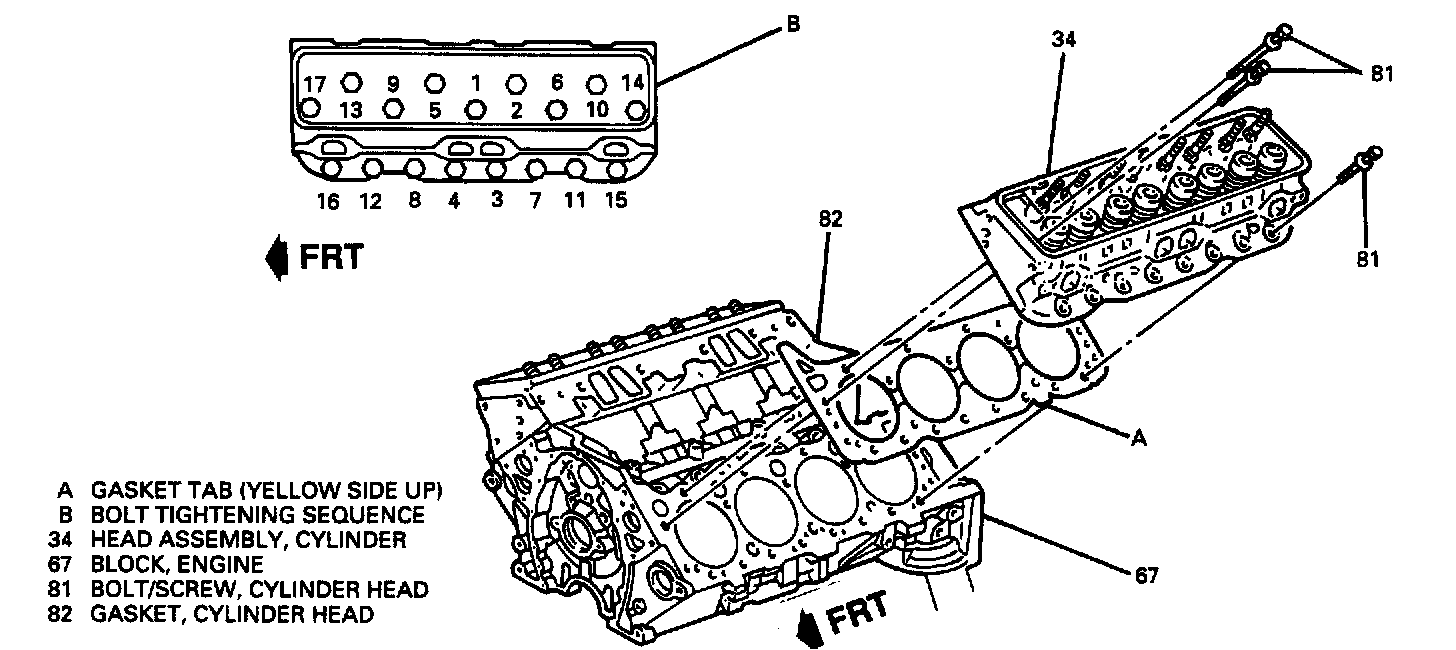

Cylinder Head Sequence:
