Home >> Pontiac >> 1993 >> Firebird V8-350 5.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Powertrain Management >> Computers and Control Systems >> Engine Control Module >> Connector A

Connector A

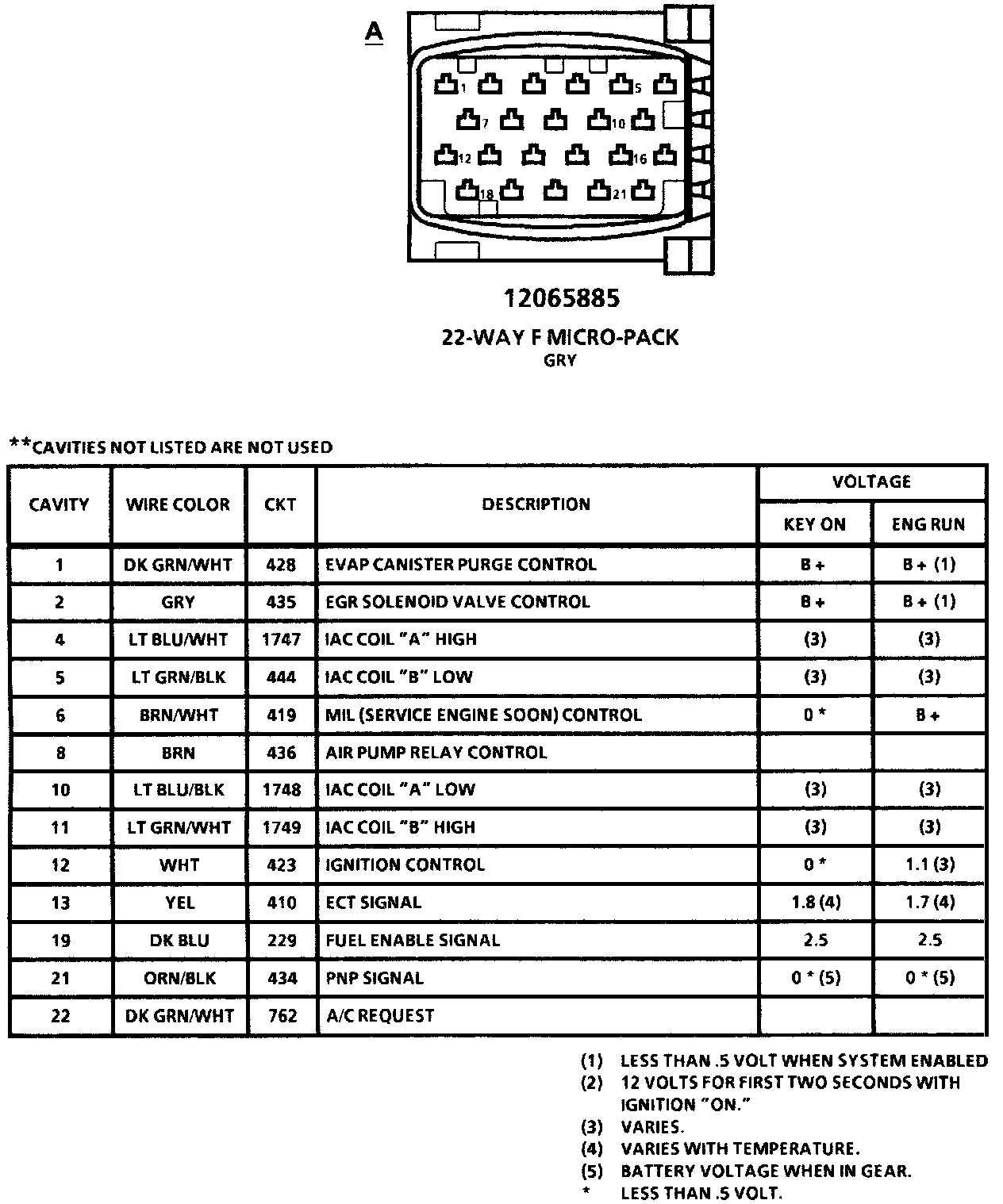

Multiport Fuel Injection V8 VIN P: ECM Connector A:
