Passkey Decoder Module Terminal Identification and Pinout
Passkey Decoder Module Terminal Identification and Pinout

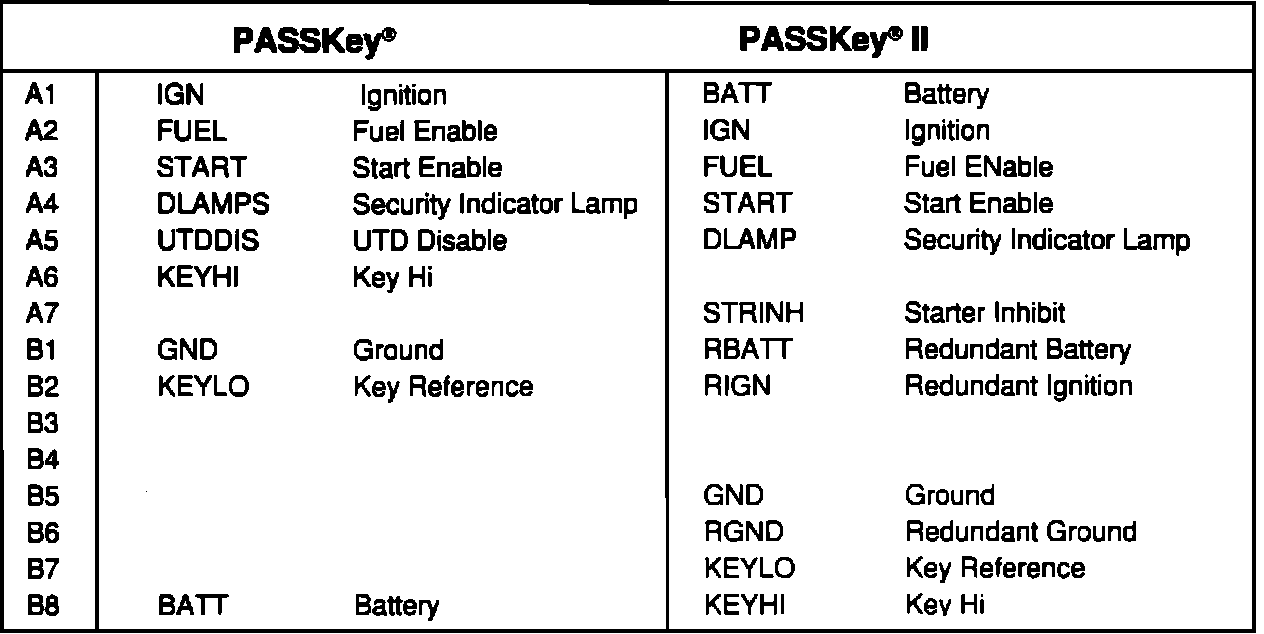

Passkey And Passkey II Module Pinout Table:
Passkey Module Connector Pinout:
