Home >> Pontiac >> 1992 >> J2000/Sunbird L4-121 2.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module >> Pinout Description

Pinout Description

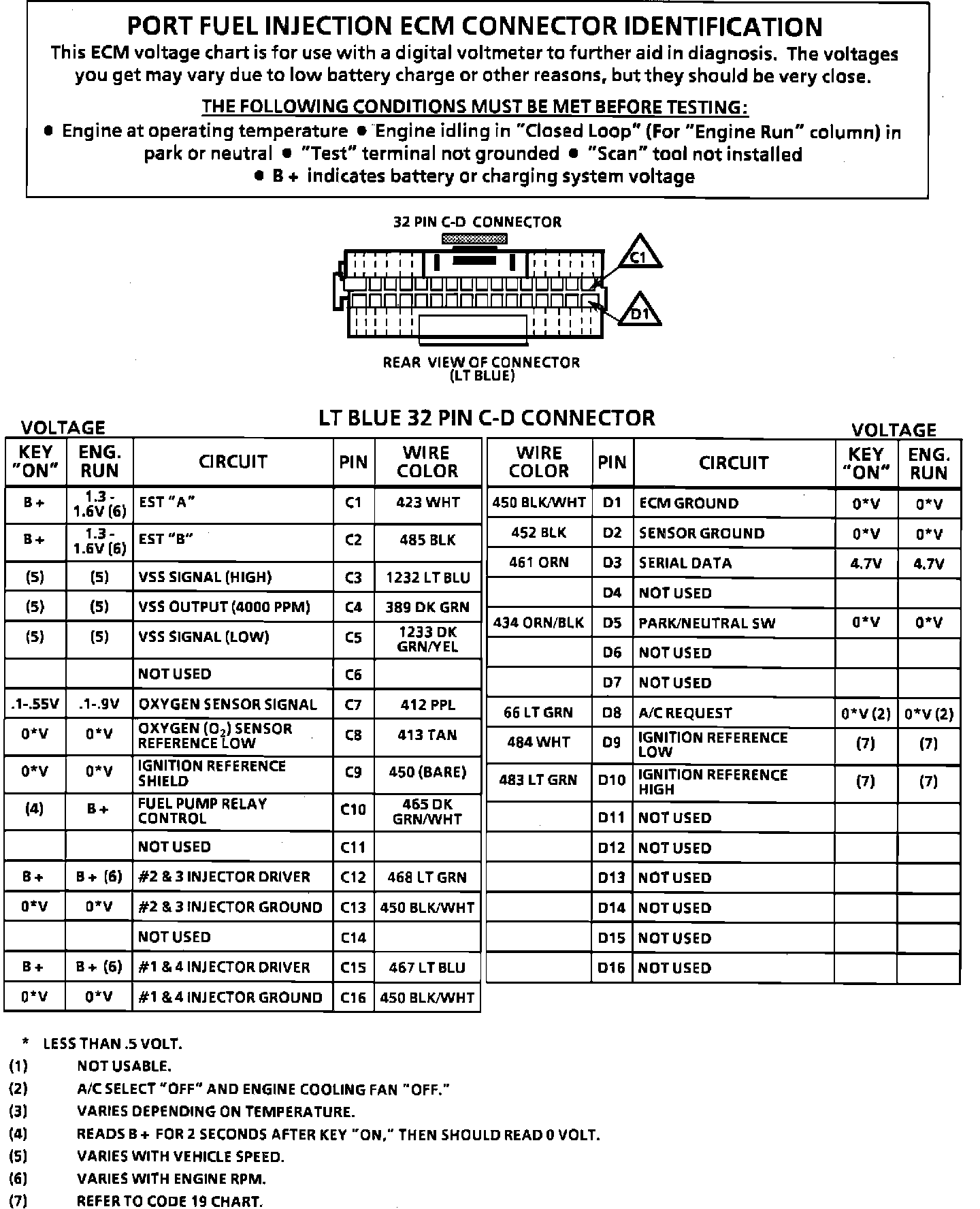

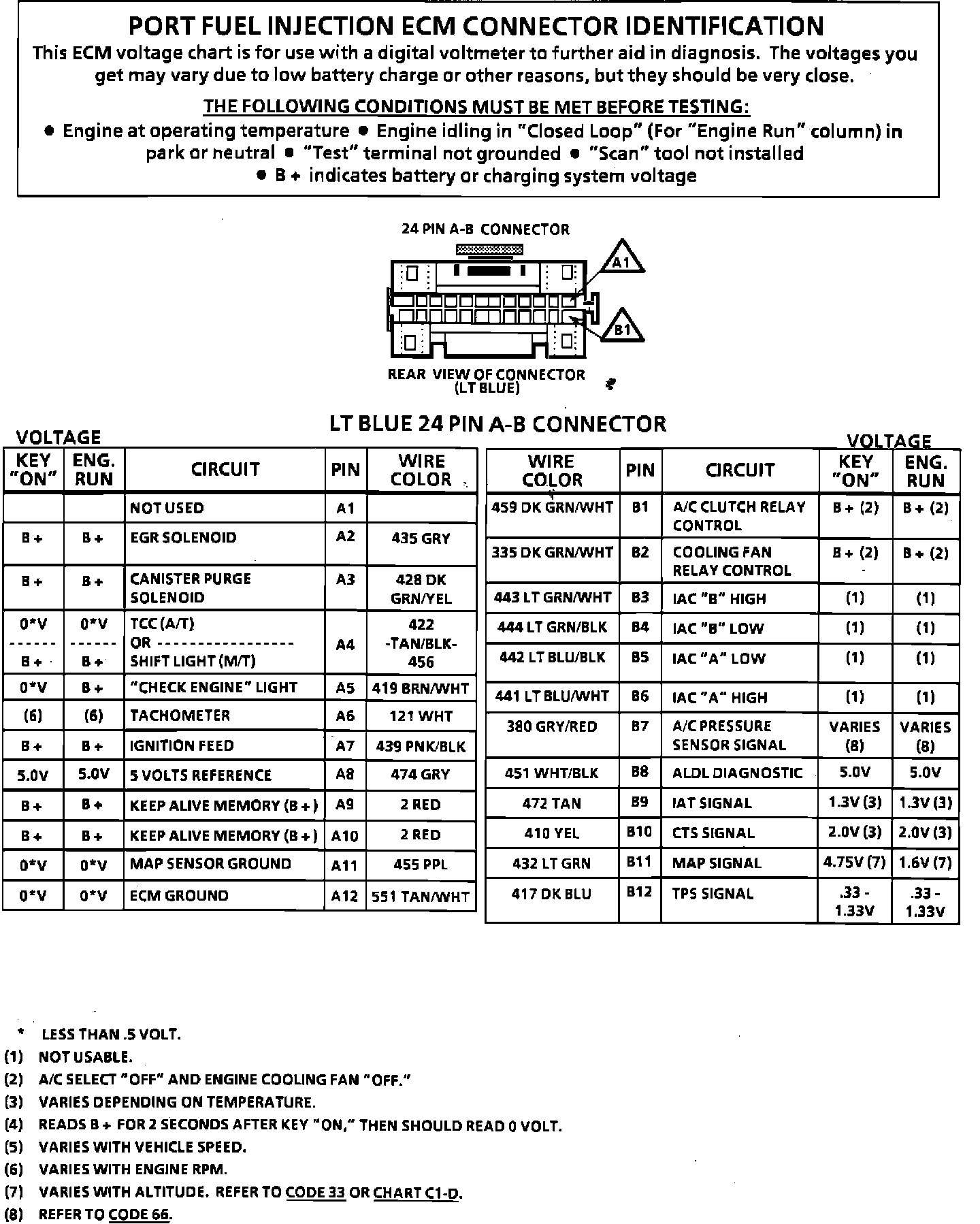

ECM Connector Pin-Out:

ECM Connector Pin-Out:
