Home >> Pontiac >> 1992 >> Firebird V8-350 5.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module

Engine Control Module

Multi-Port Fuel Injection And Tuned Port Injection:



Multi-Port Fuel Injection And Tuned Port Injection:

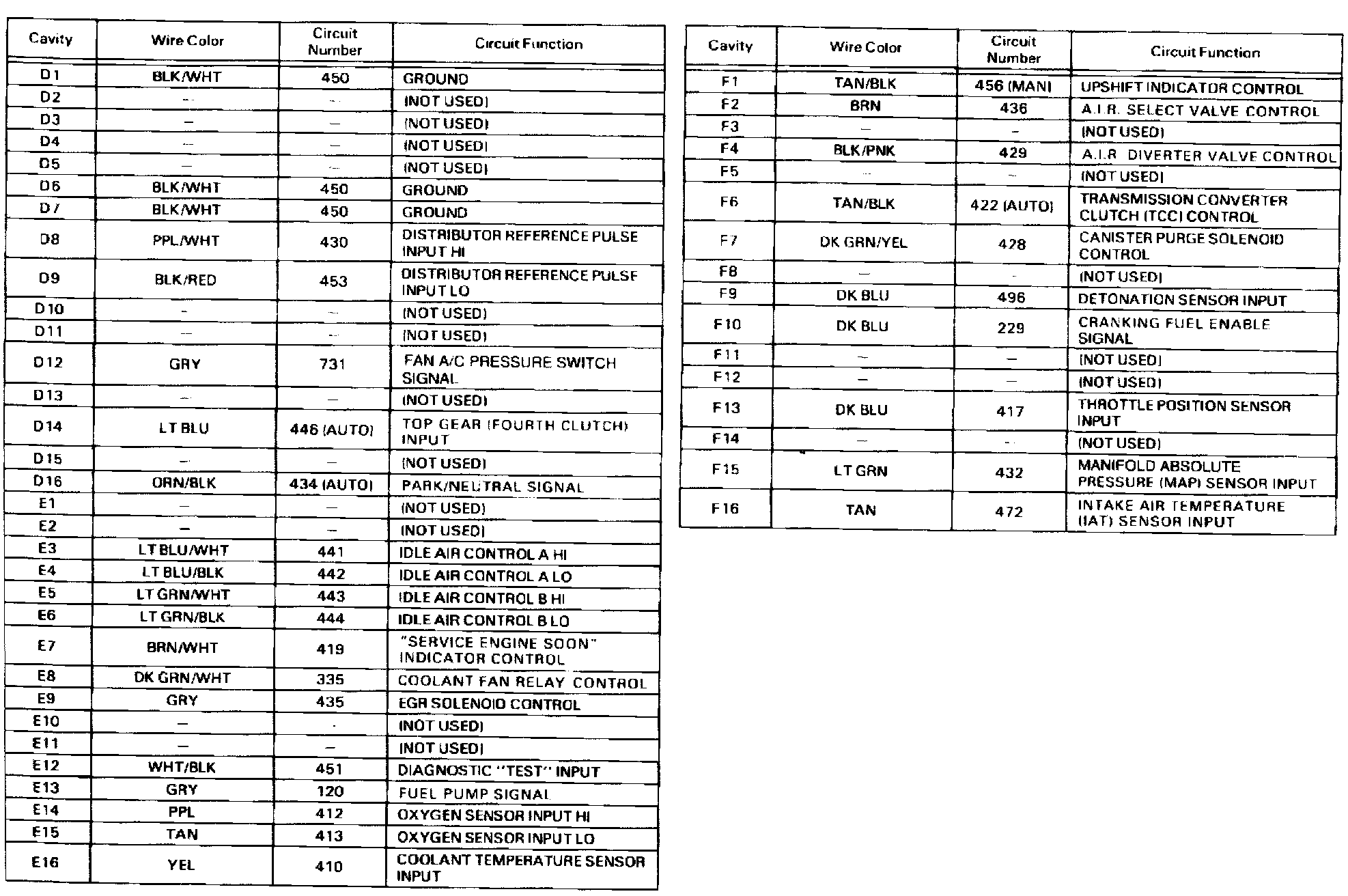

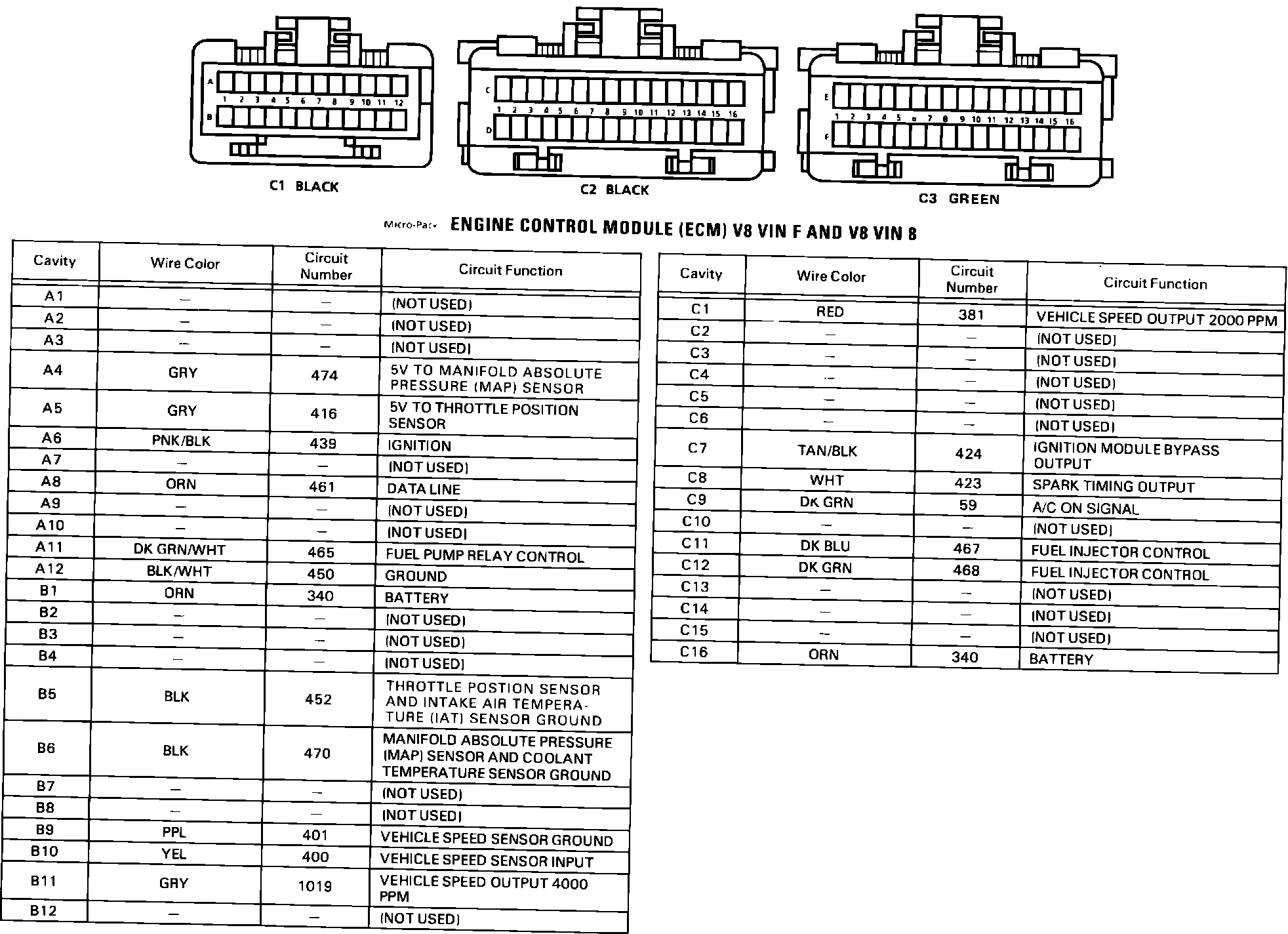

Engine Control Module (ECM) Connectors:

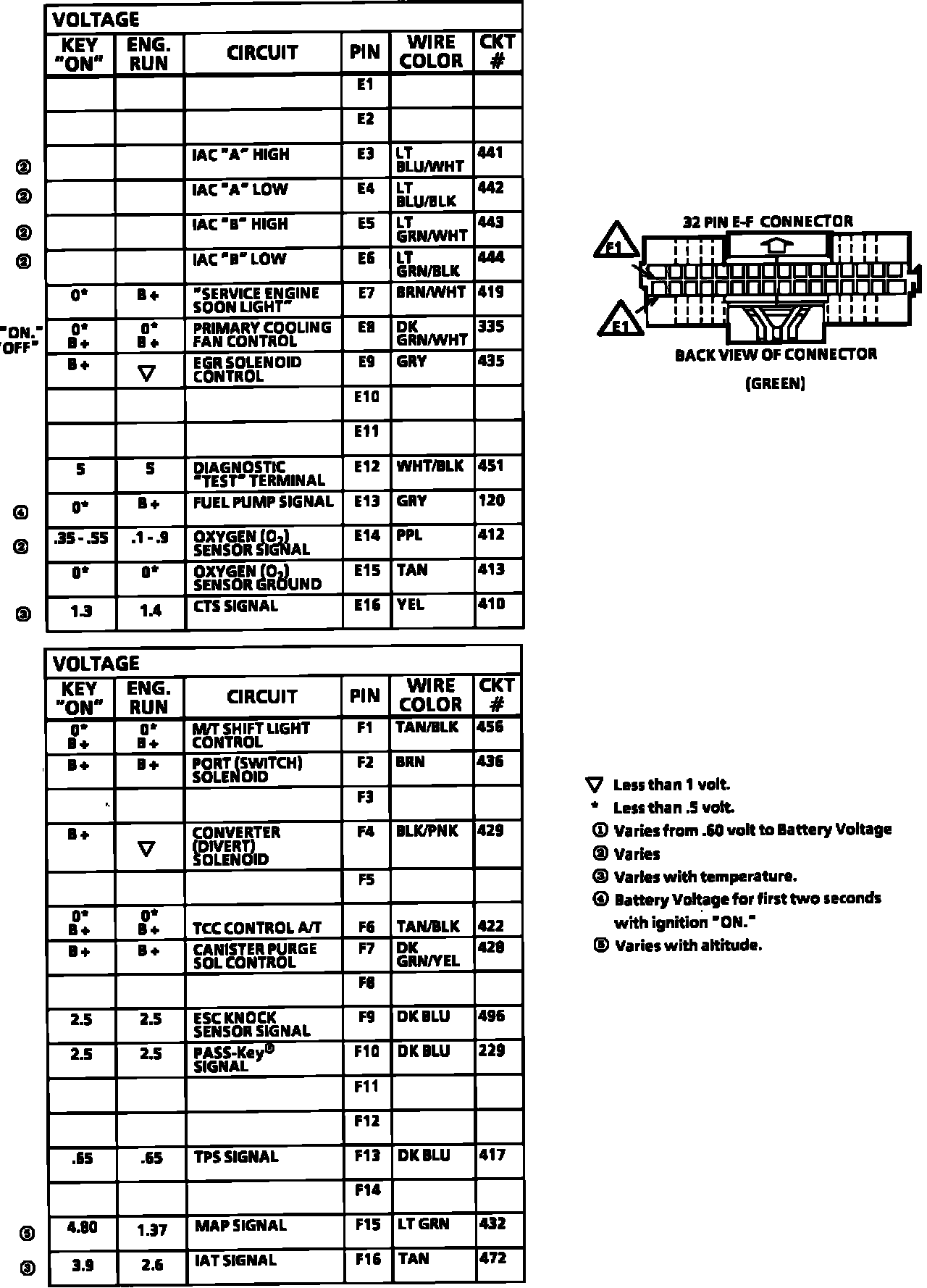

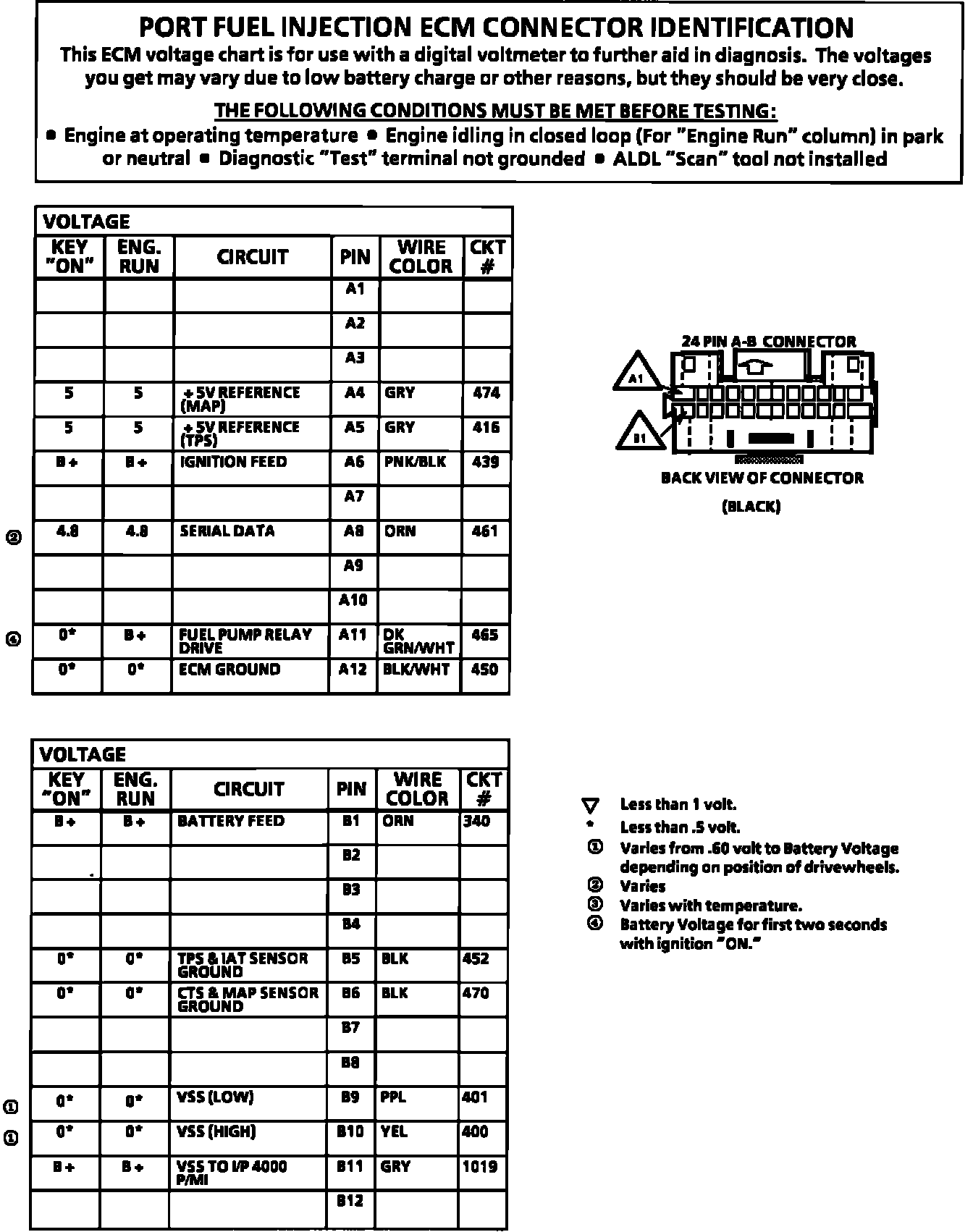

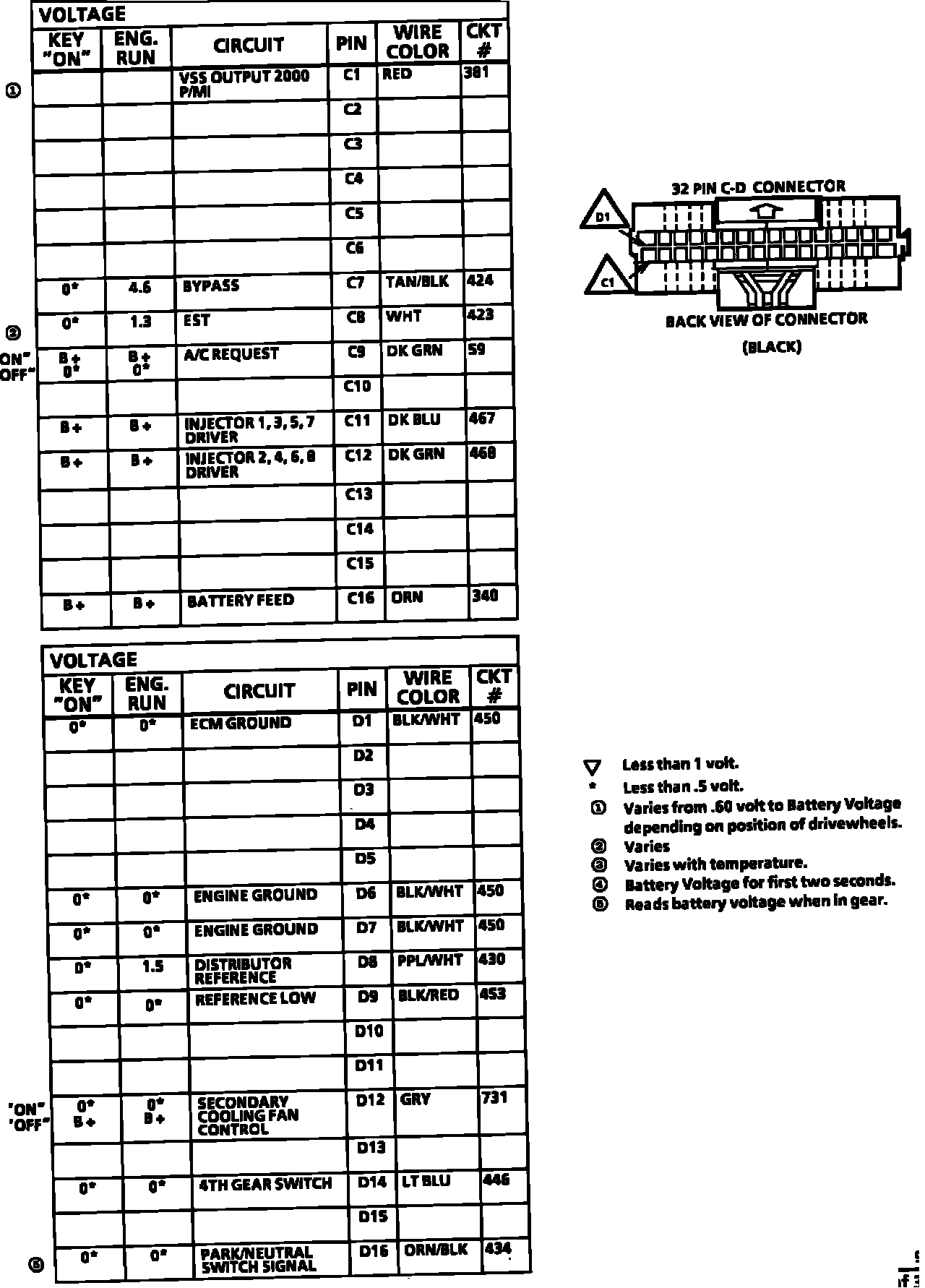

ECM Voltage Chart:



ECM Voltage Chart:



ECM Voltage Chart:
