Pontiac
>>
1992
>>
Firebird V8-350 5.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
>>
Miscellaneous Components
>>
Fuse Block
Fuse Block

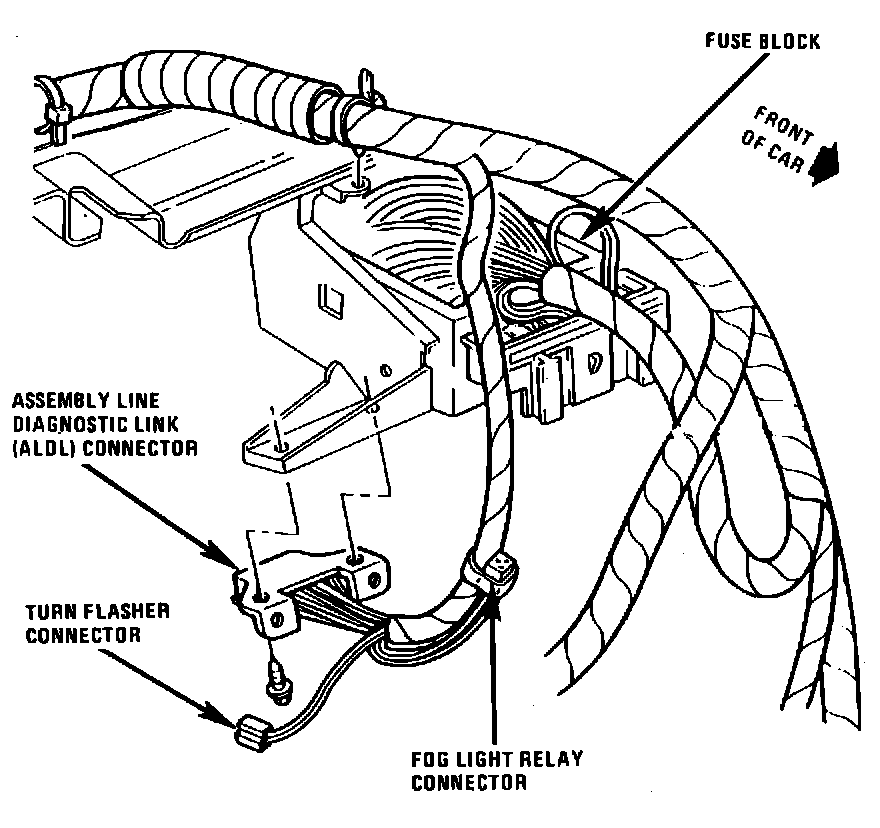

Behind LH Side Of I/P:

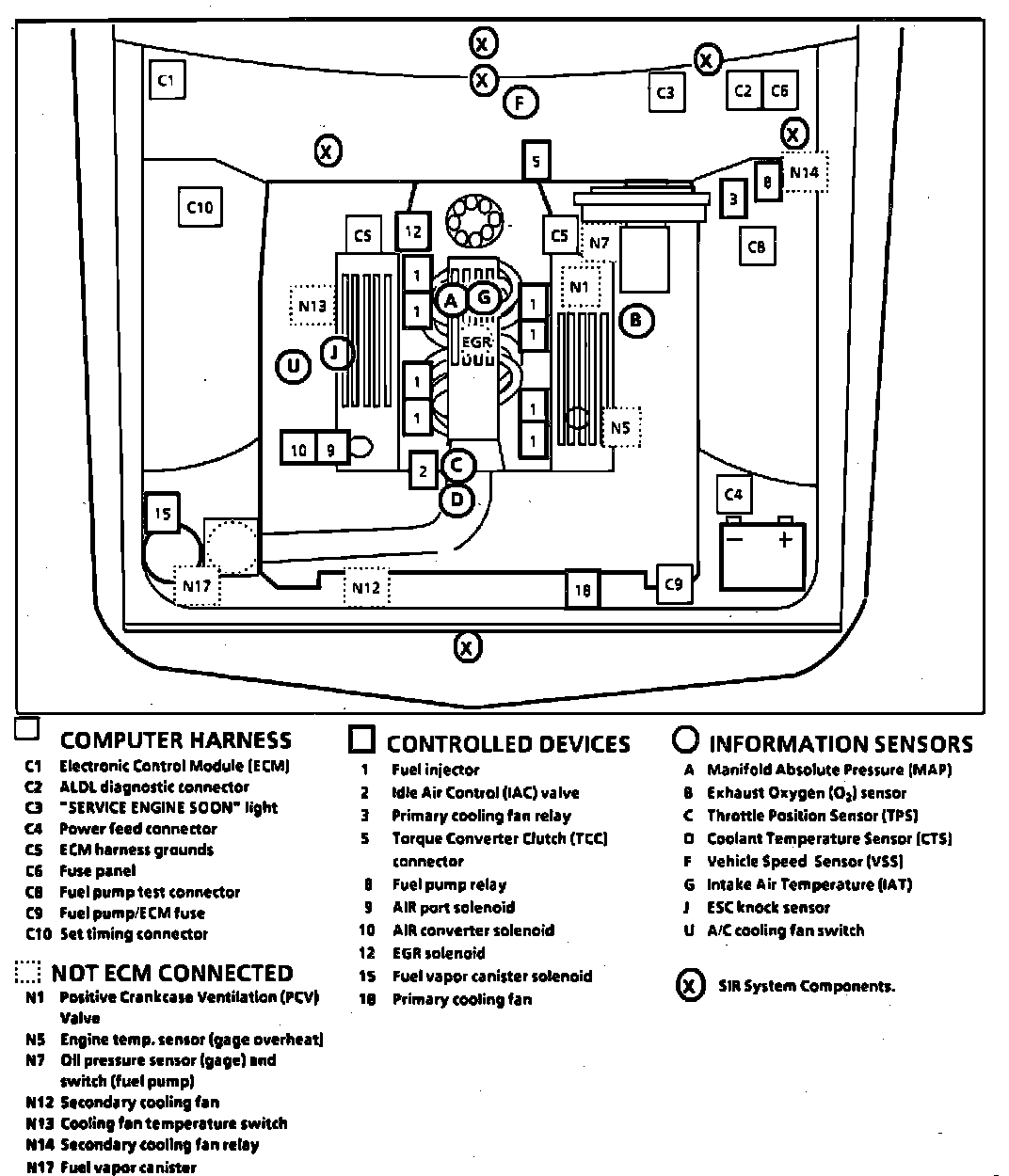

Engine Compartment Components.:
Behind LH Side Of I/P
