Home >> Pontiac >> 1992 >> Firebird V6-191 3.1L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications

System Specifications

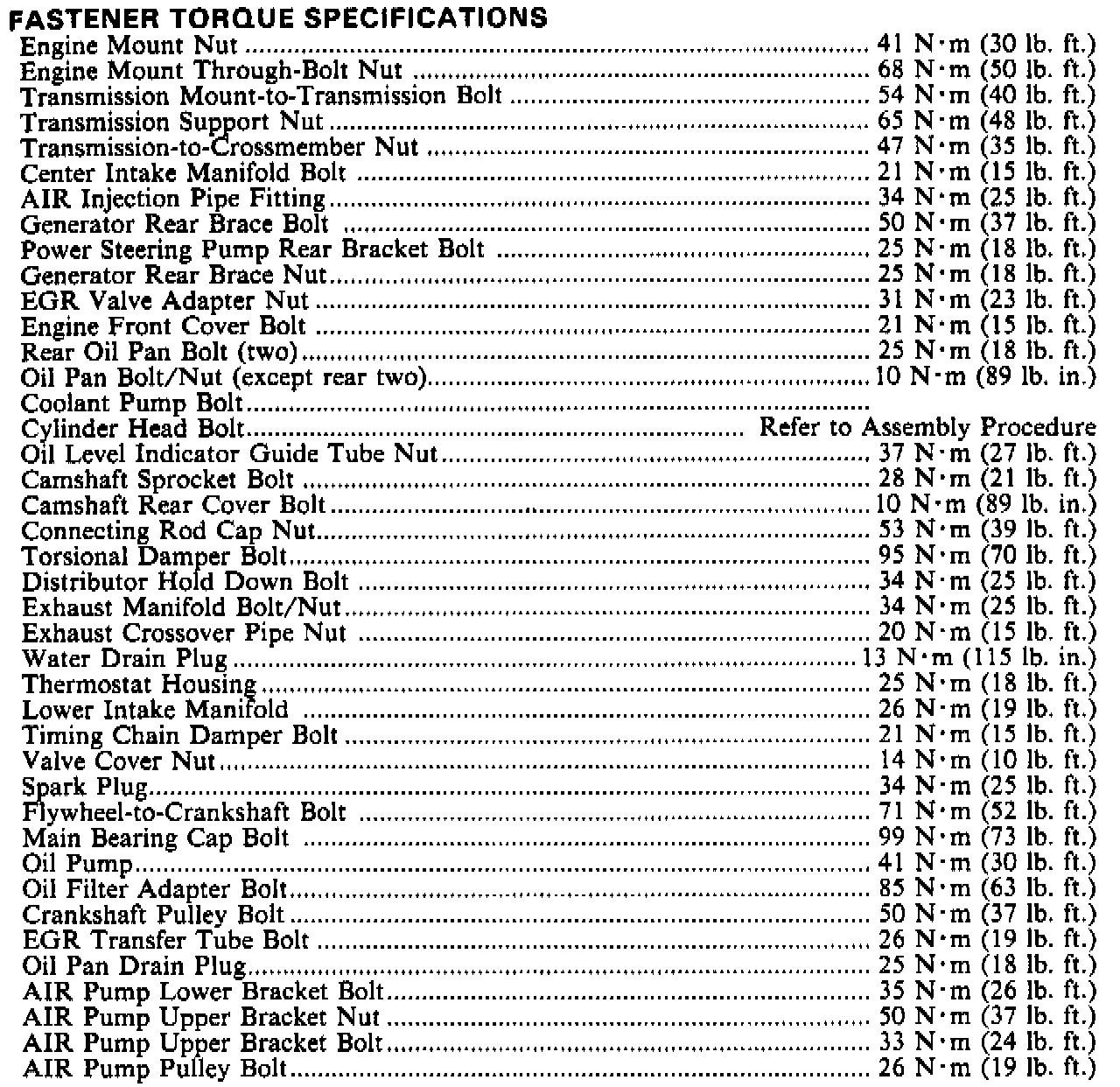

Torque Specifications:

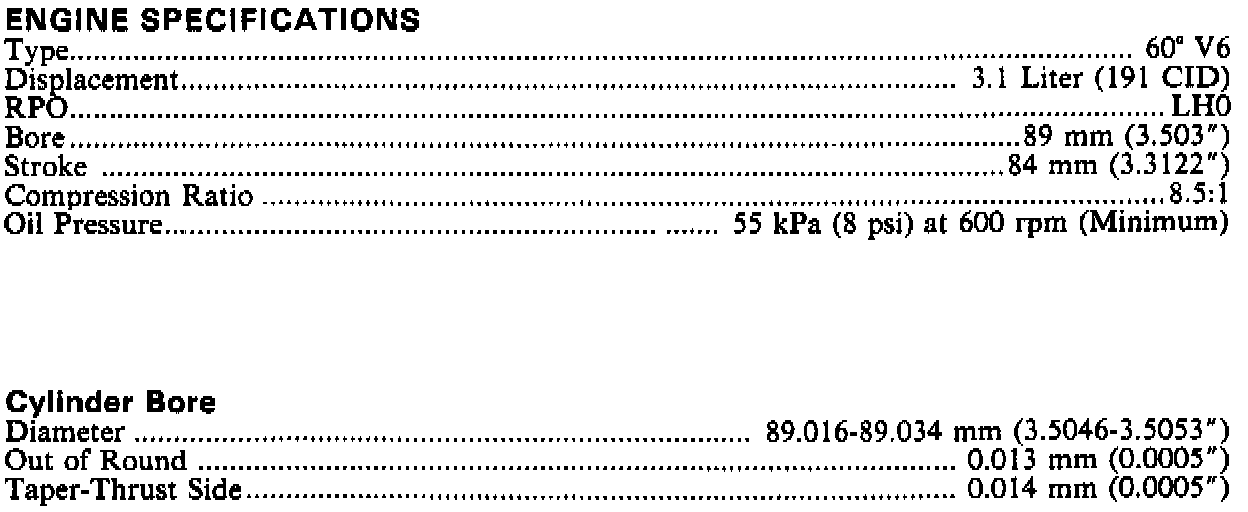

Engine Specifications:

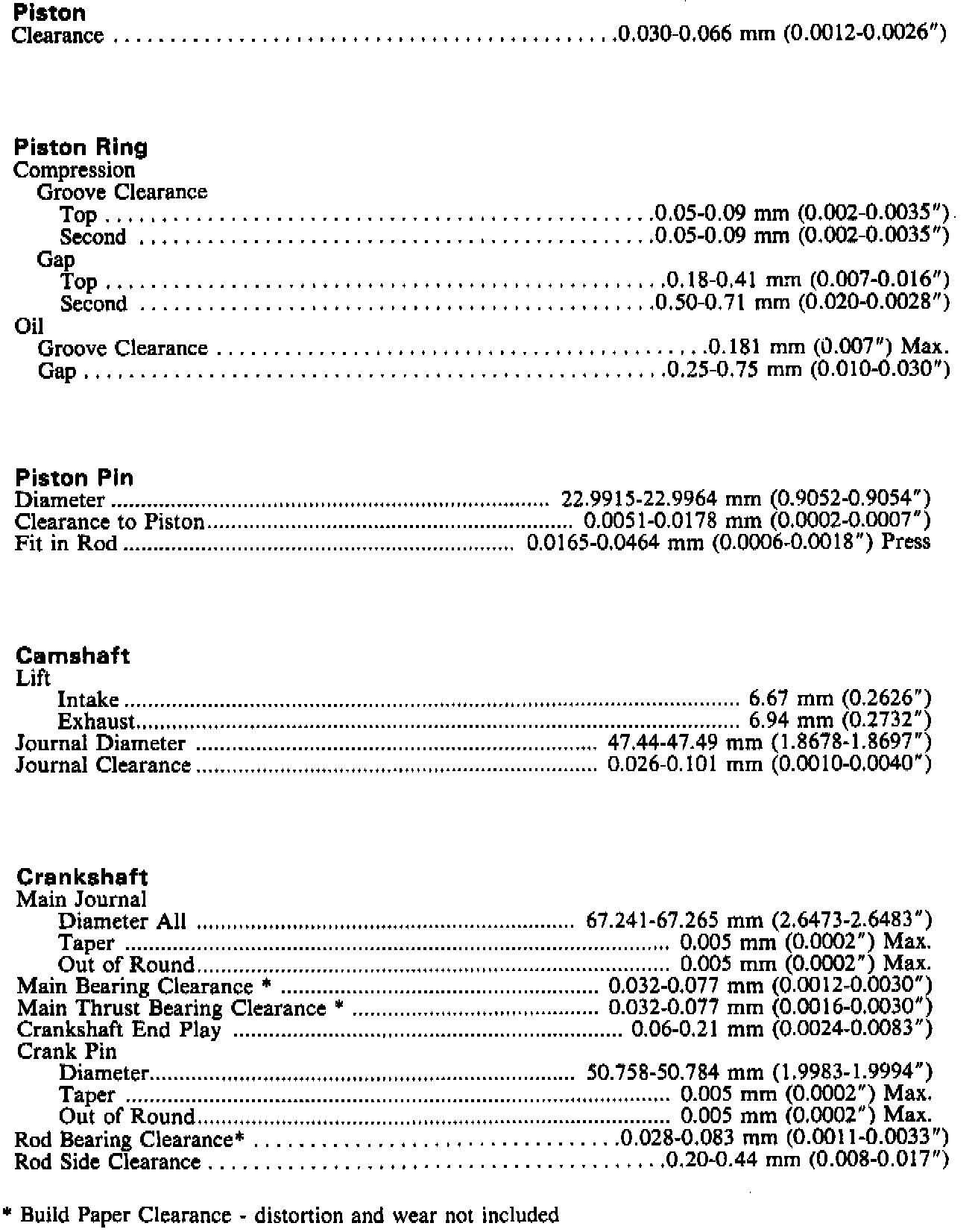

Engine Specifications (continued):

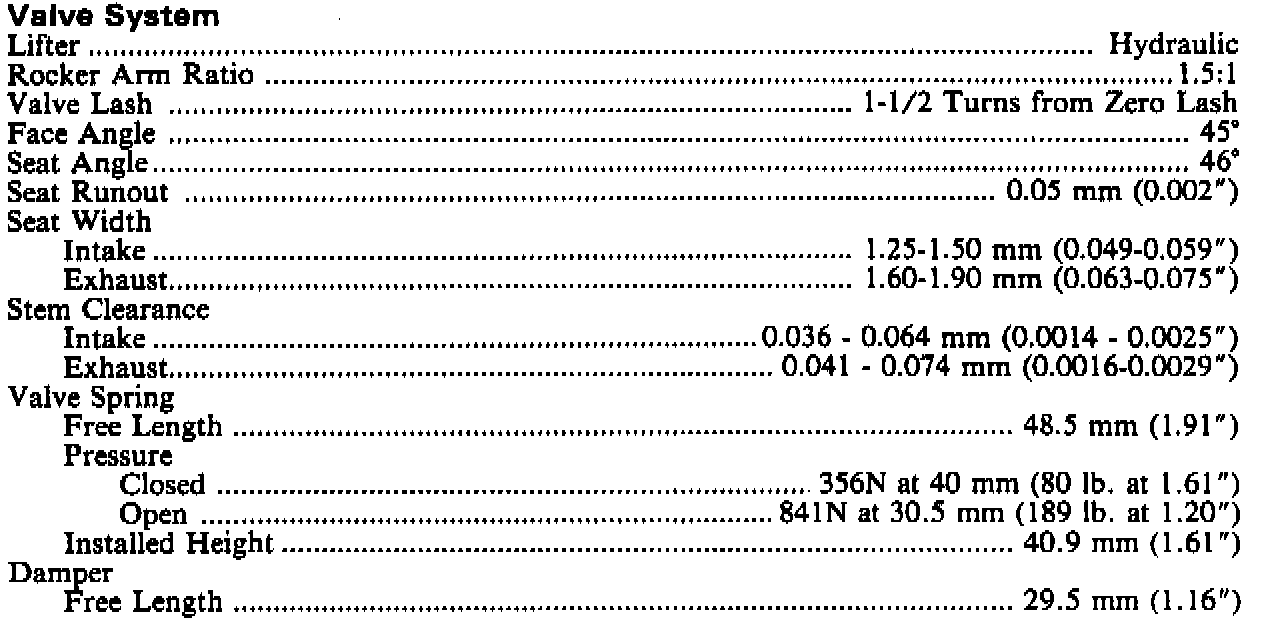

Engine Specifications (continued):

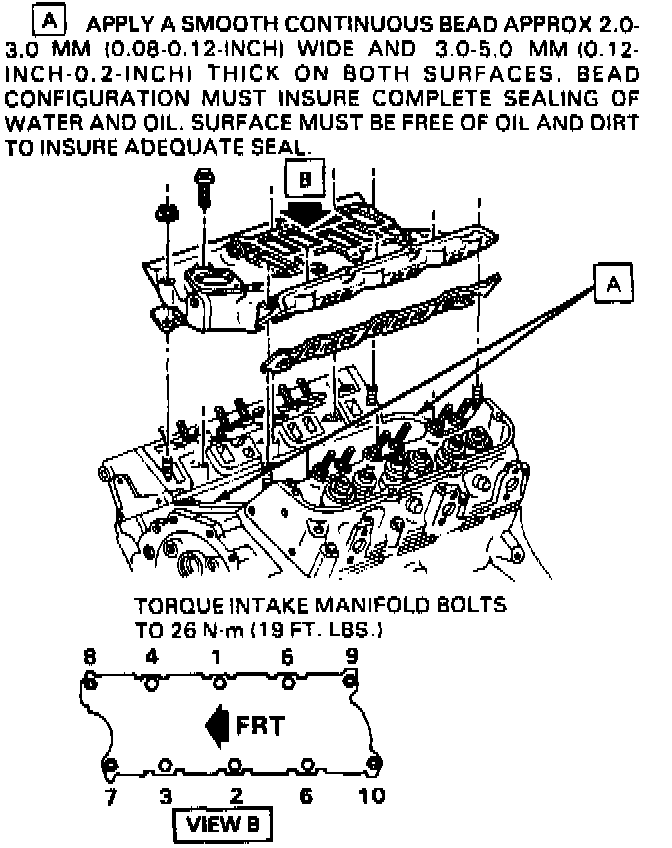

Intake Manifold Sequence:
