Home >> Pontiac >> 1990 >> Lemans FWD L4-98 1.6L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications

System Specifications

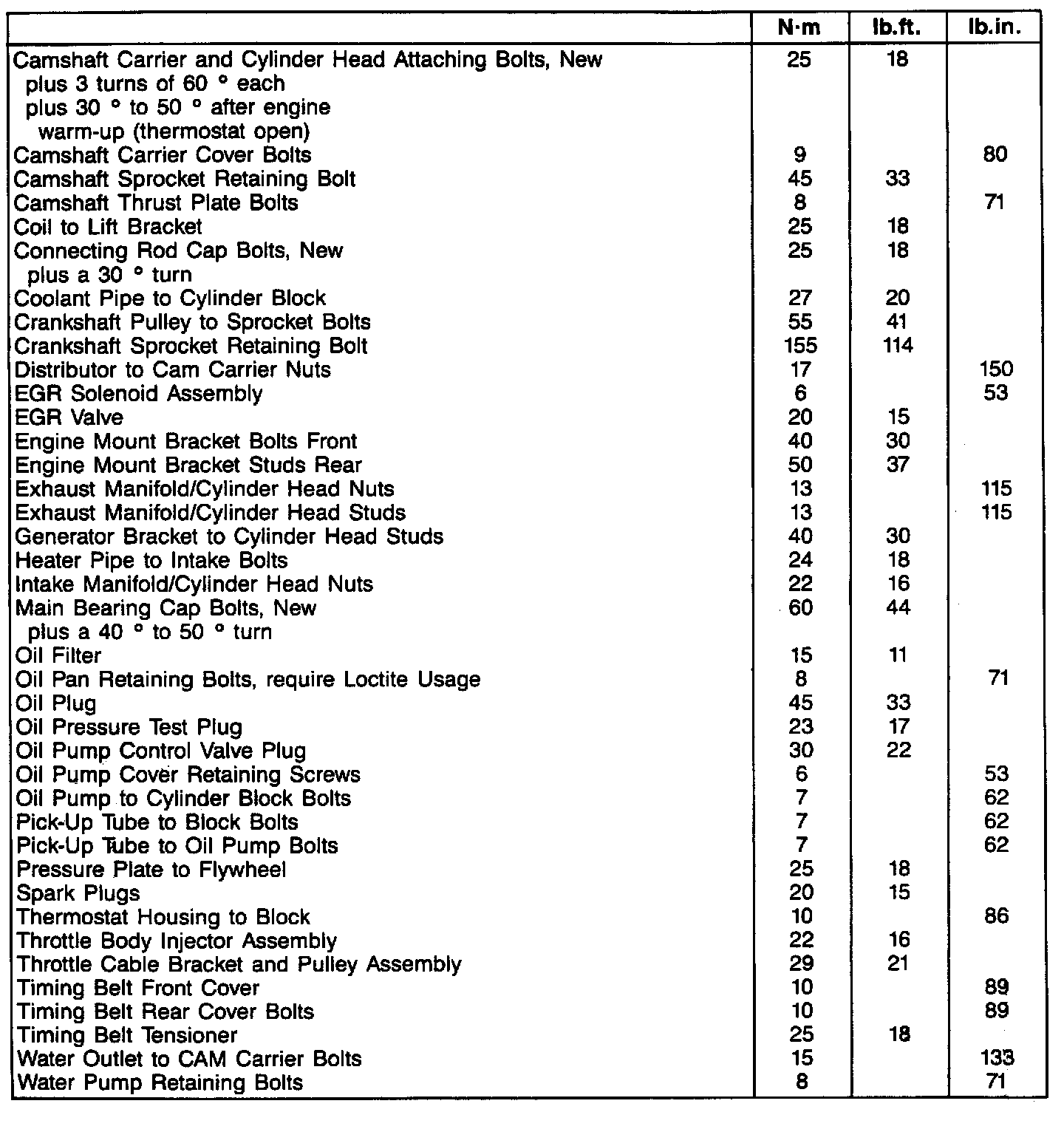

Torque Specifications:

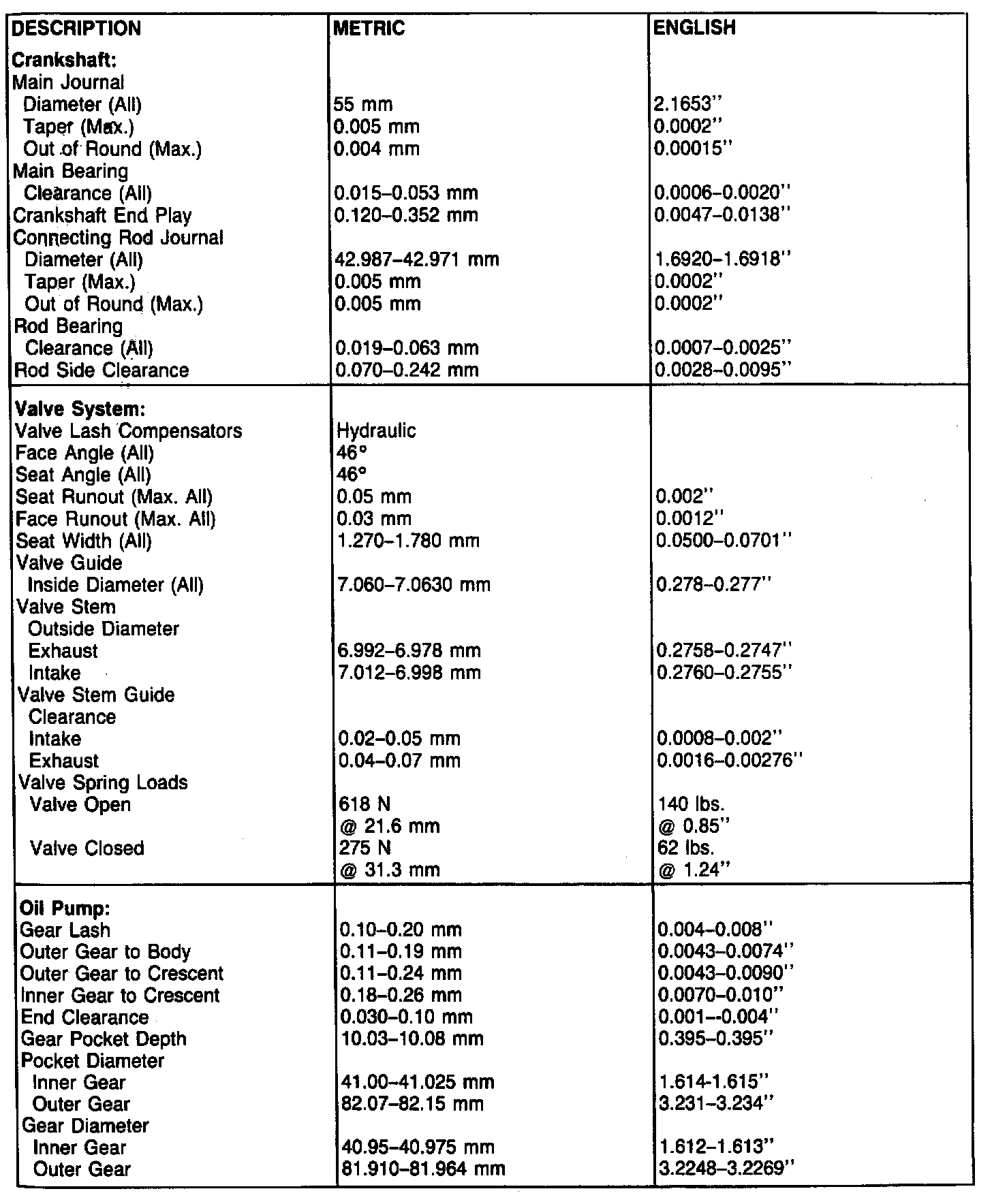

Engine Specifications:

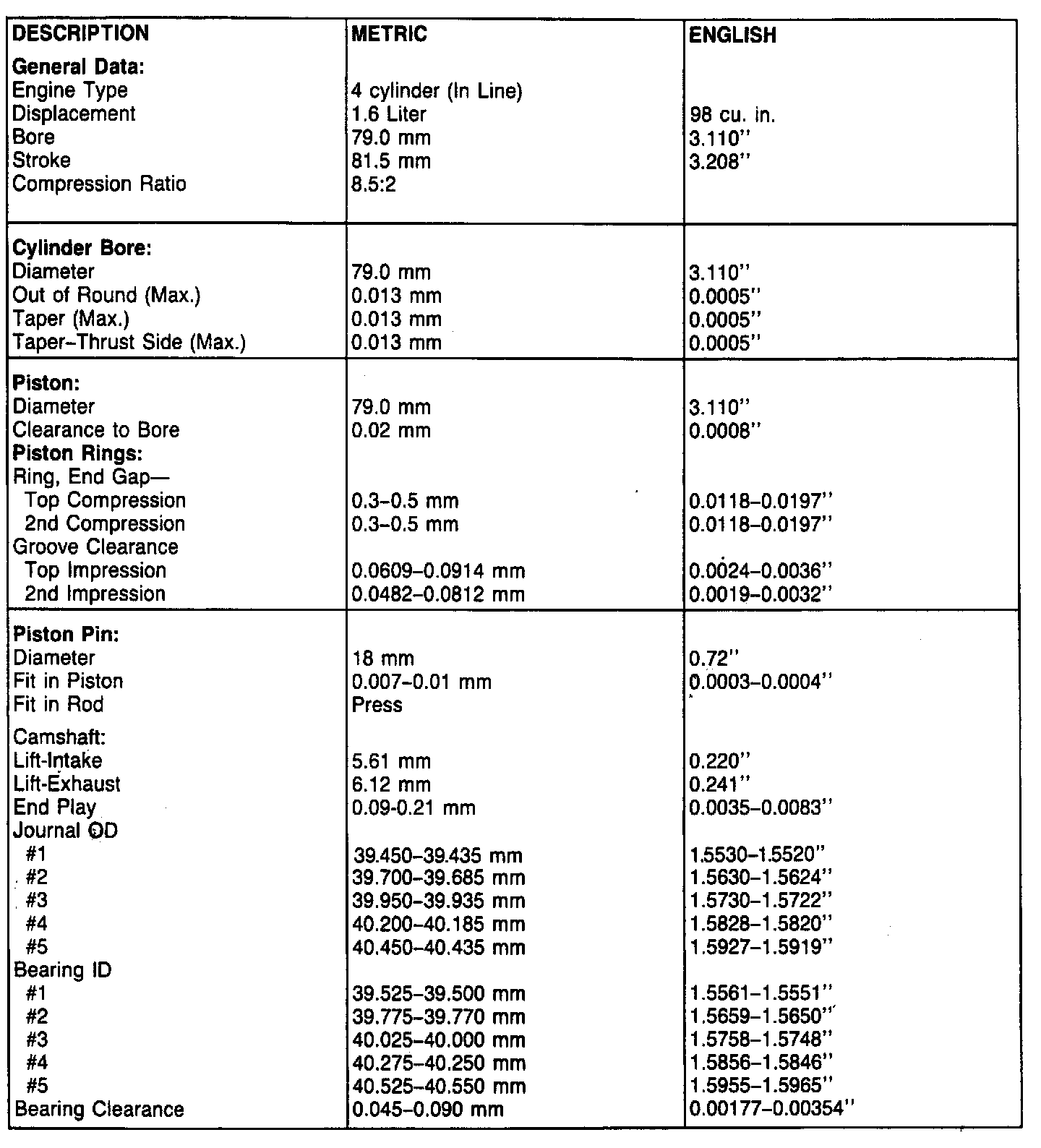

Engine Specifications:

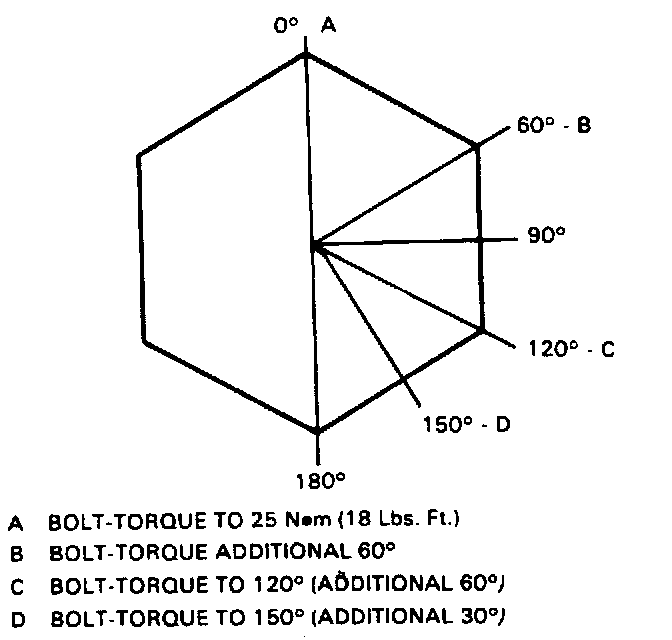

Cylinder Head Bolt Torque Degree Chart:

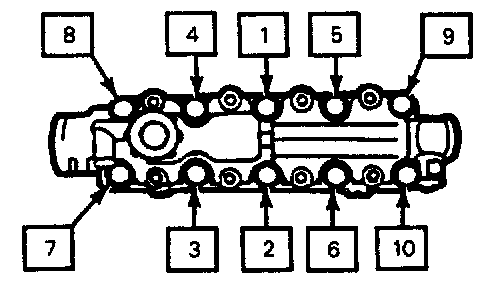

Cylinder Head Torque Sequence:
