Home >> Pontiac >> 1990 >> J2000/Sunbird L4-121 2.0L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications

System Specifications

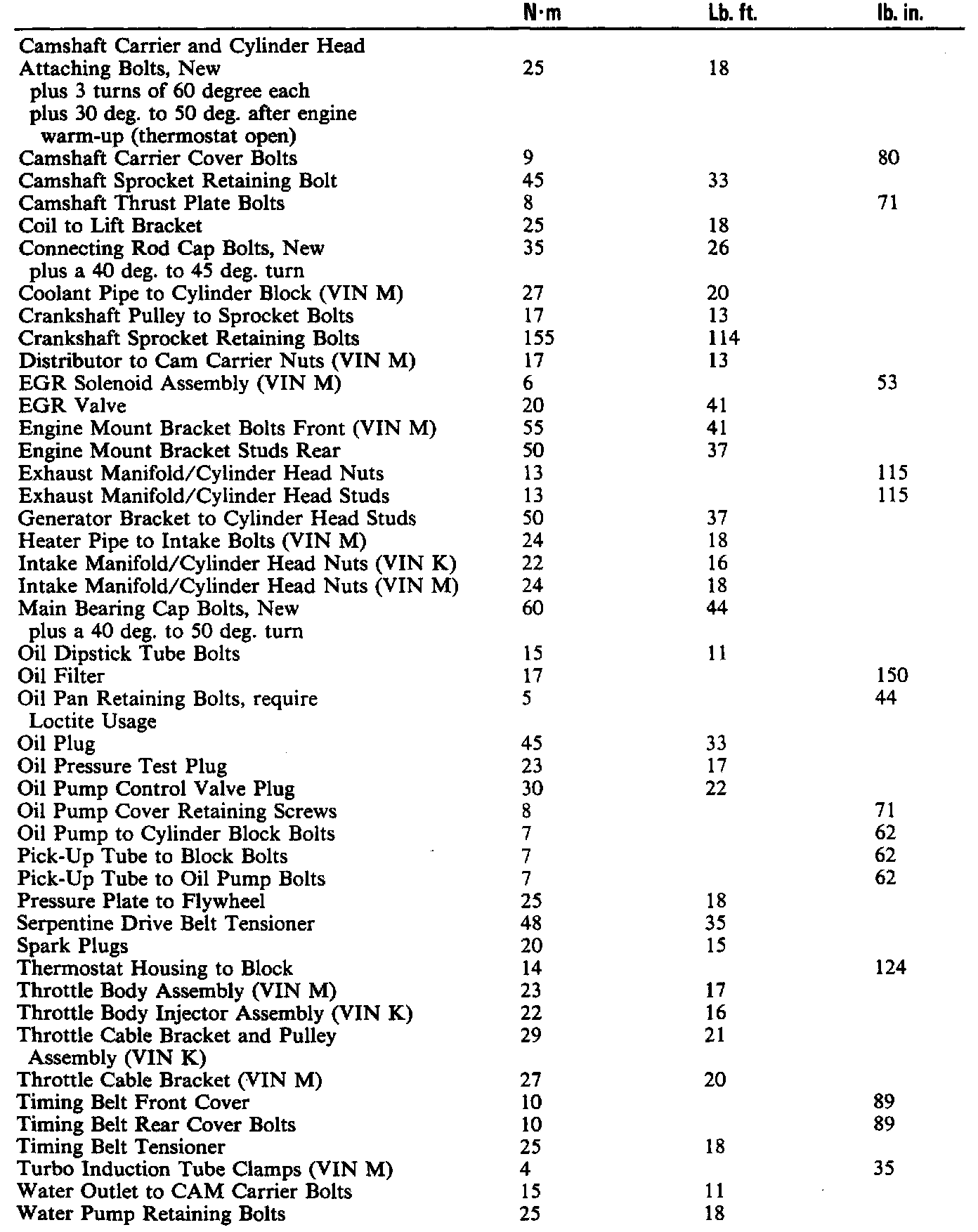

Torque Specifications:

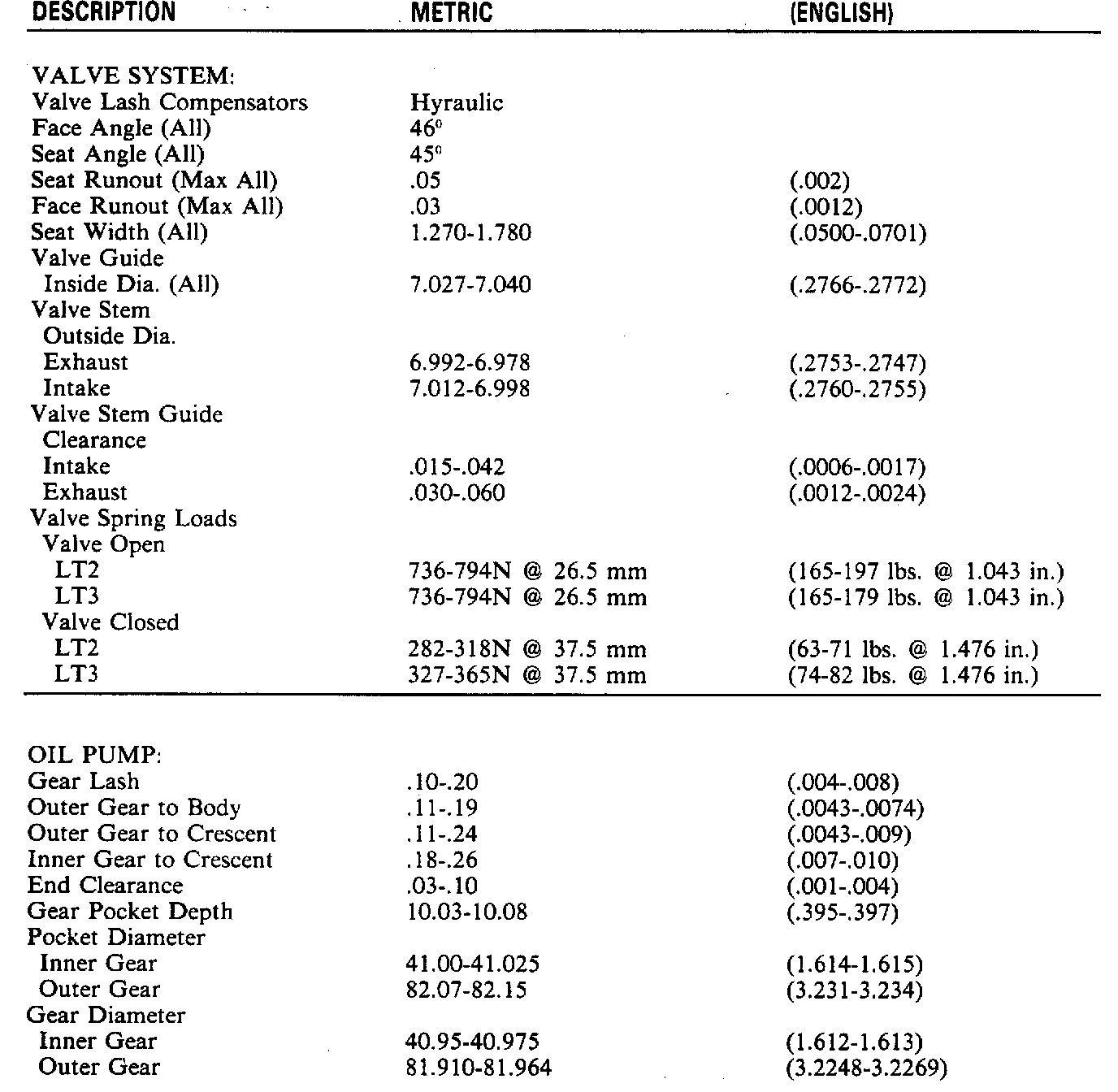

Engine Specifications:

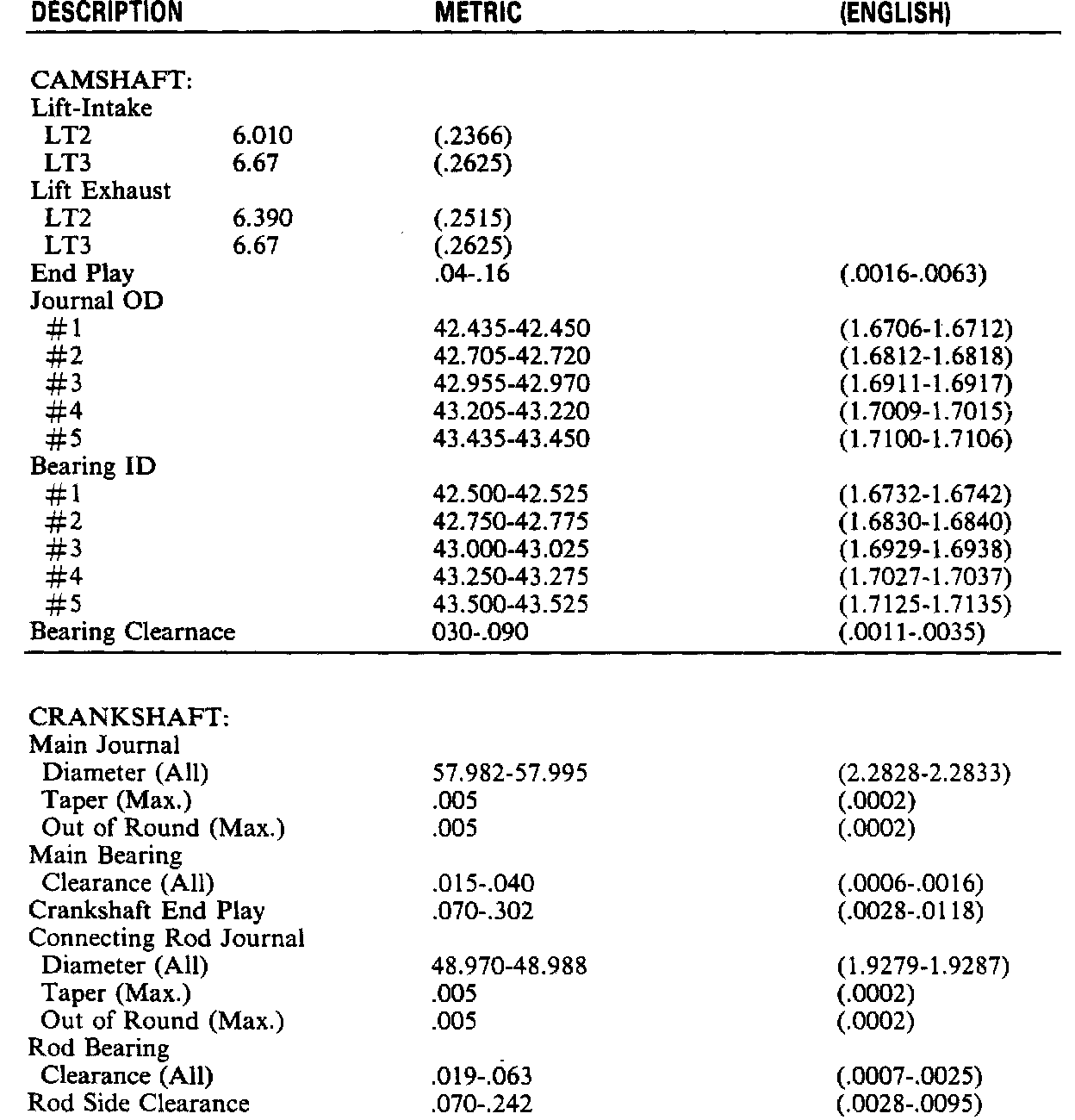

Engine Specifications:

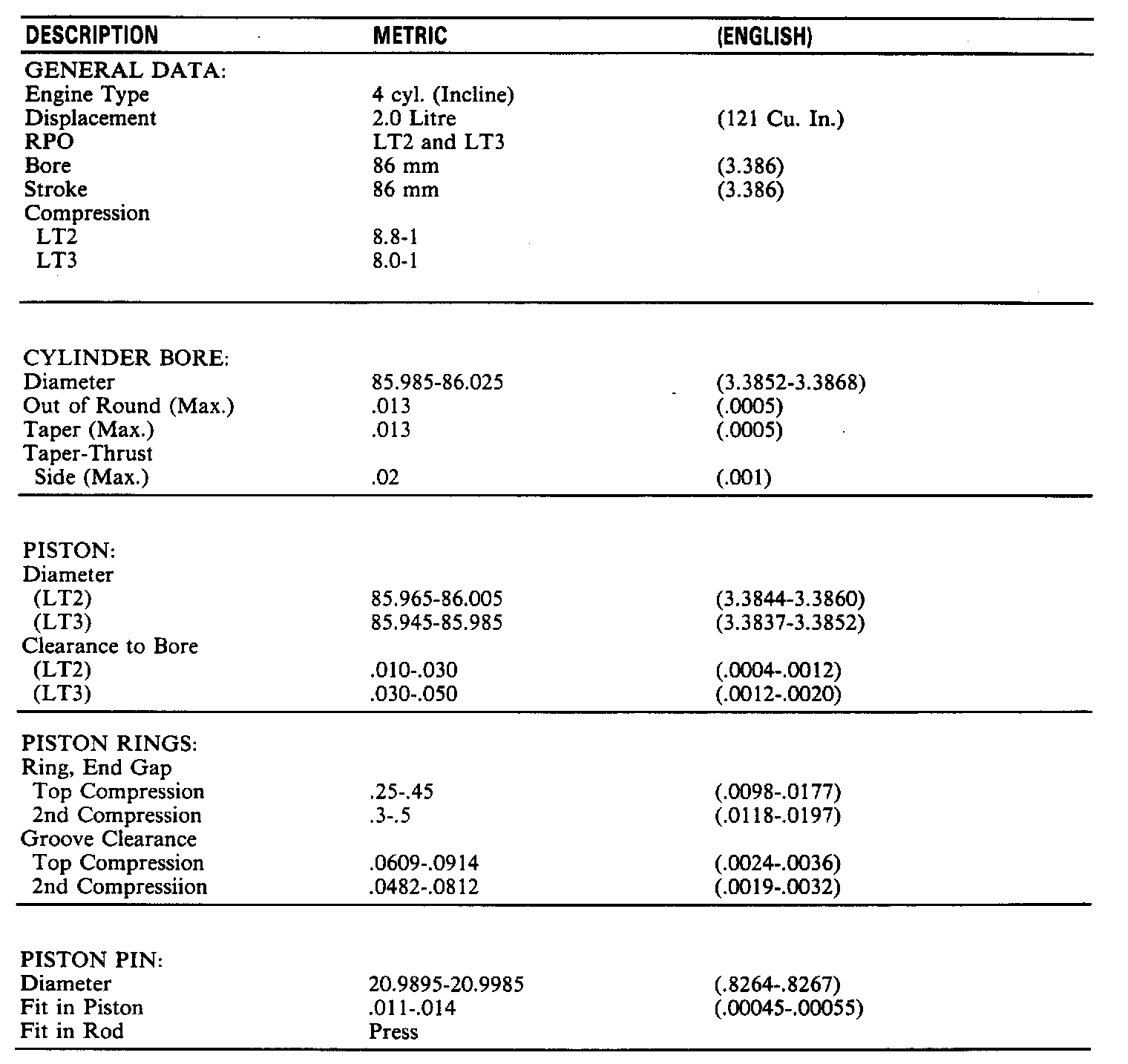

Engine Specifications:

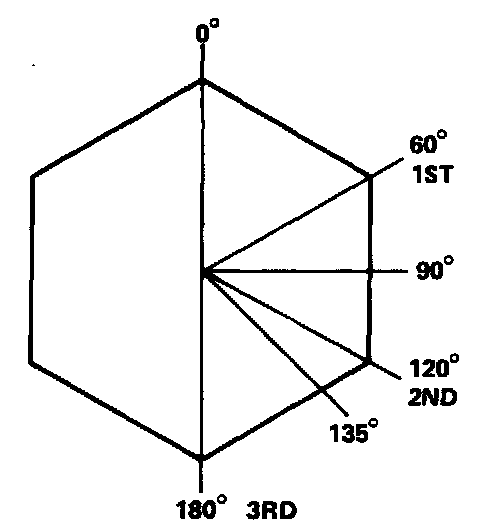

Cylinder Head Bolt Torque Degree Chart:





Camshaft Carrier And Cylinder Head Bolt Loosening Sequence:





Camshaft Carrier And Cylinder Head Bolt Torque Sequence:
