System Specifications

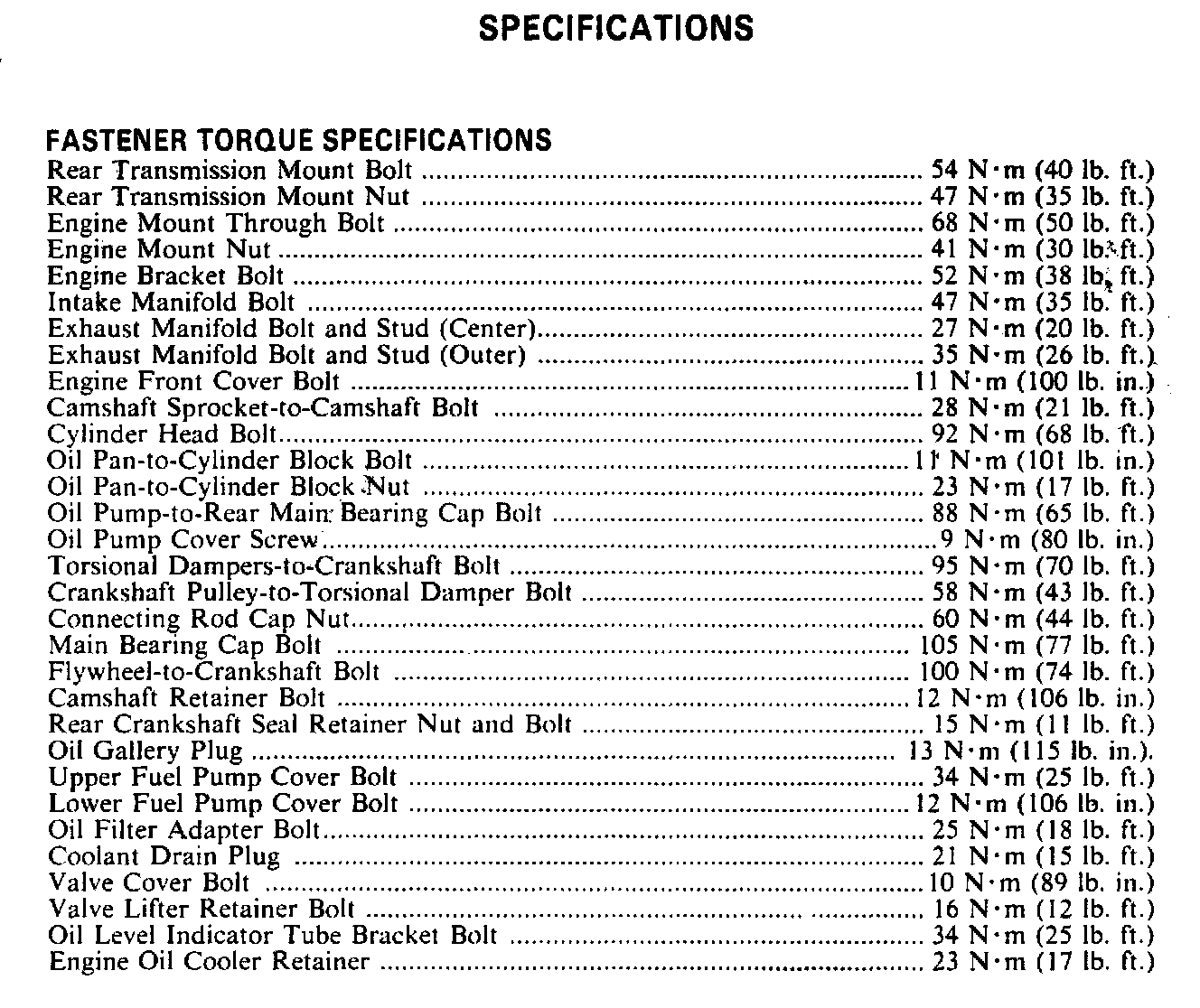

Torque Specifications:

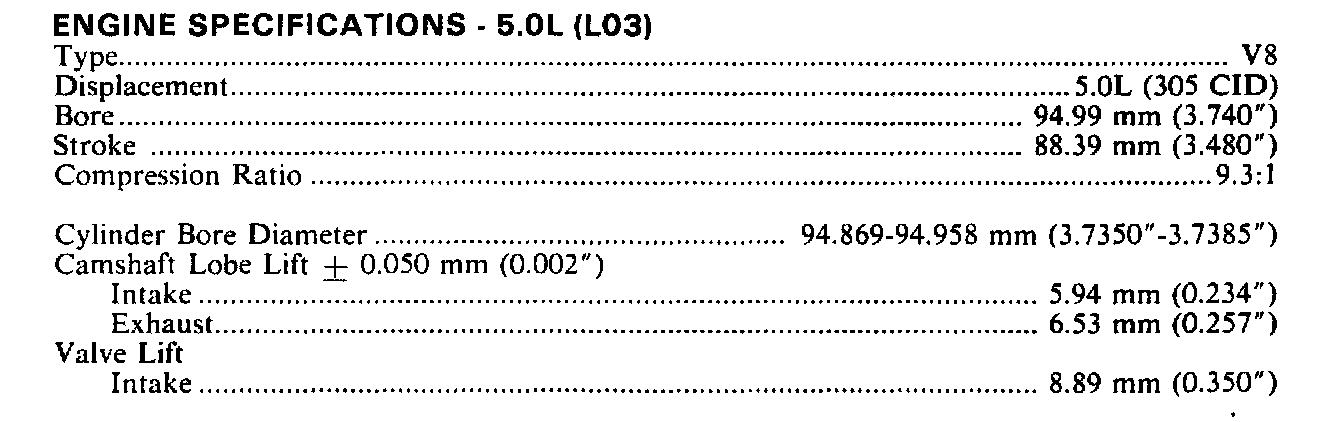

Engine Specifications 5.0 (LO3):

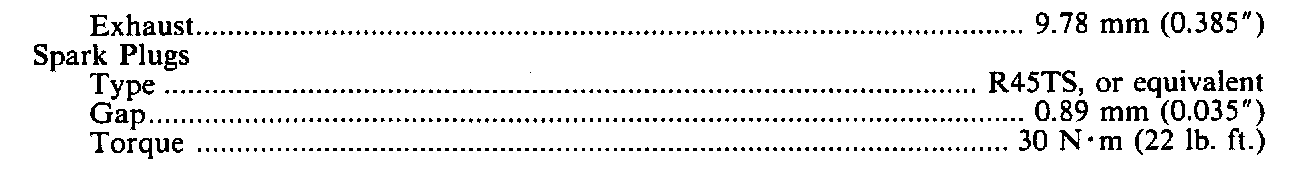

Engine Specifications 5.0 (LO3):

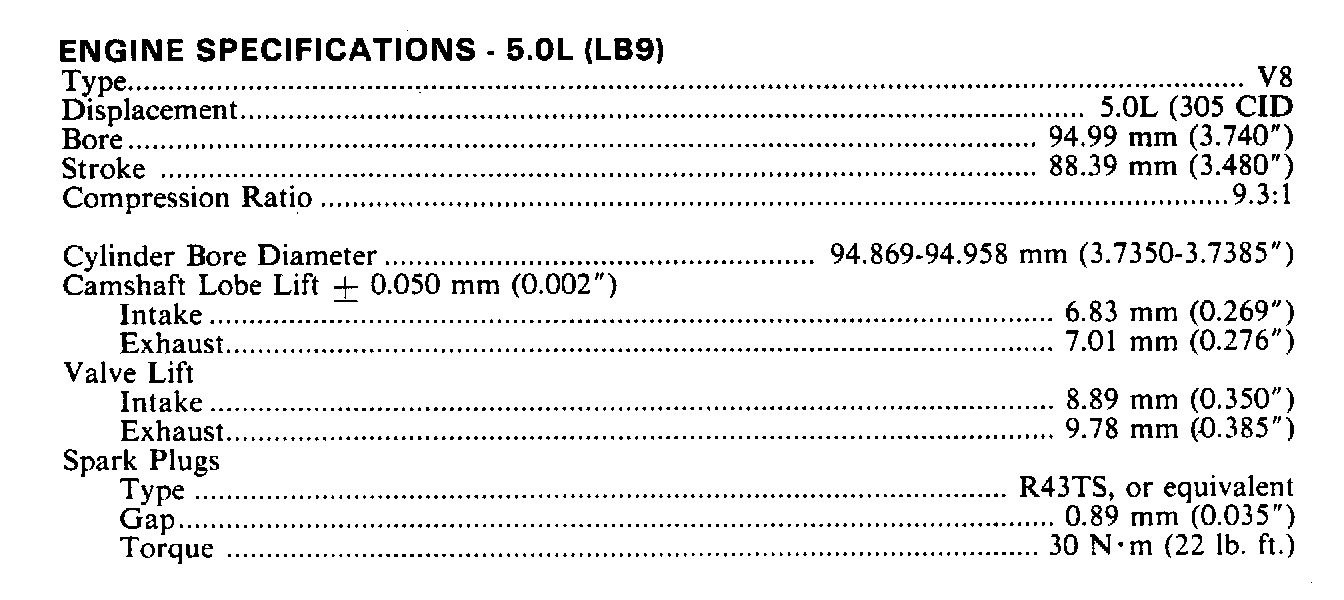

Engine Specifications 5.0 (LB9):

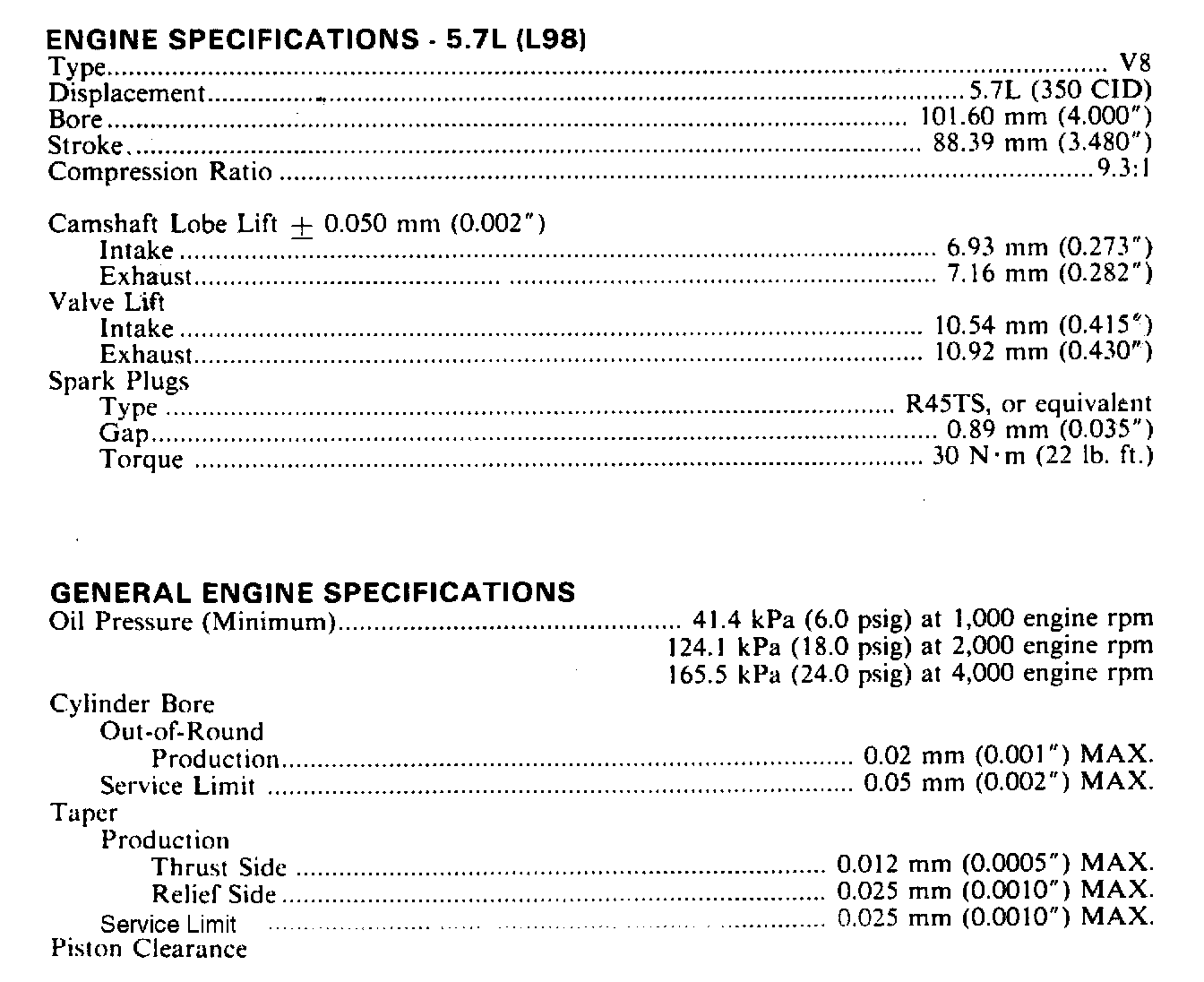

Engine Specifications 5.7 (L98):

Engine Specifications 5.7 (L98):

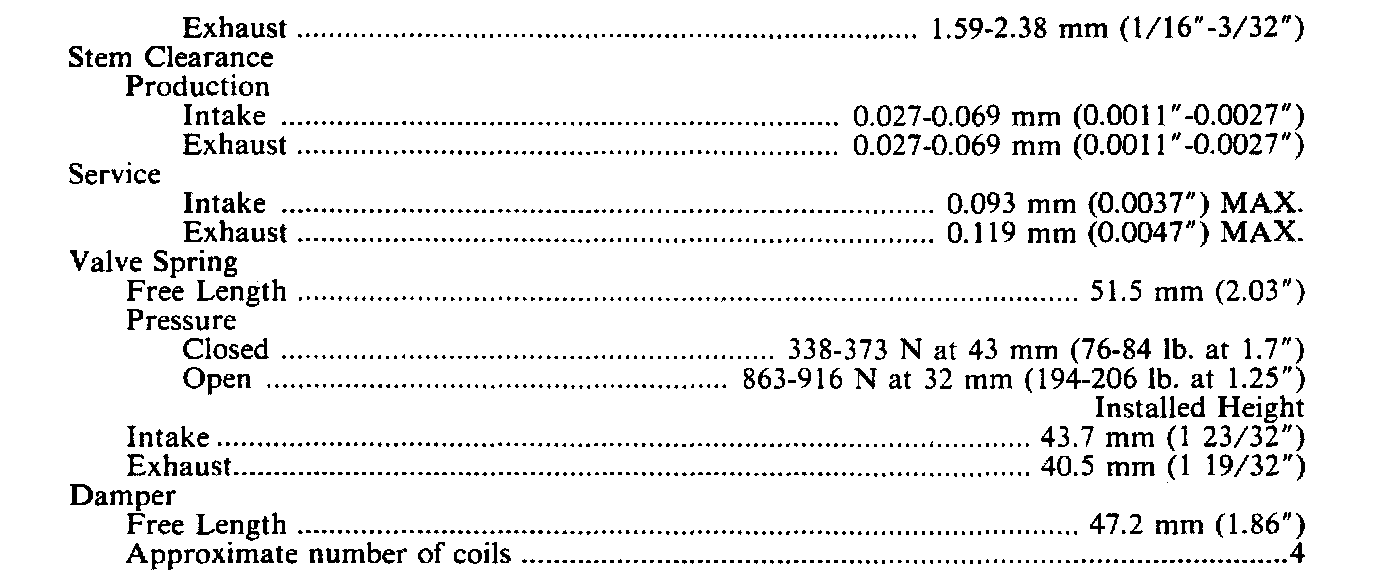

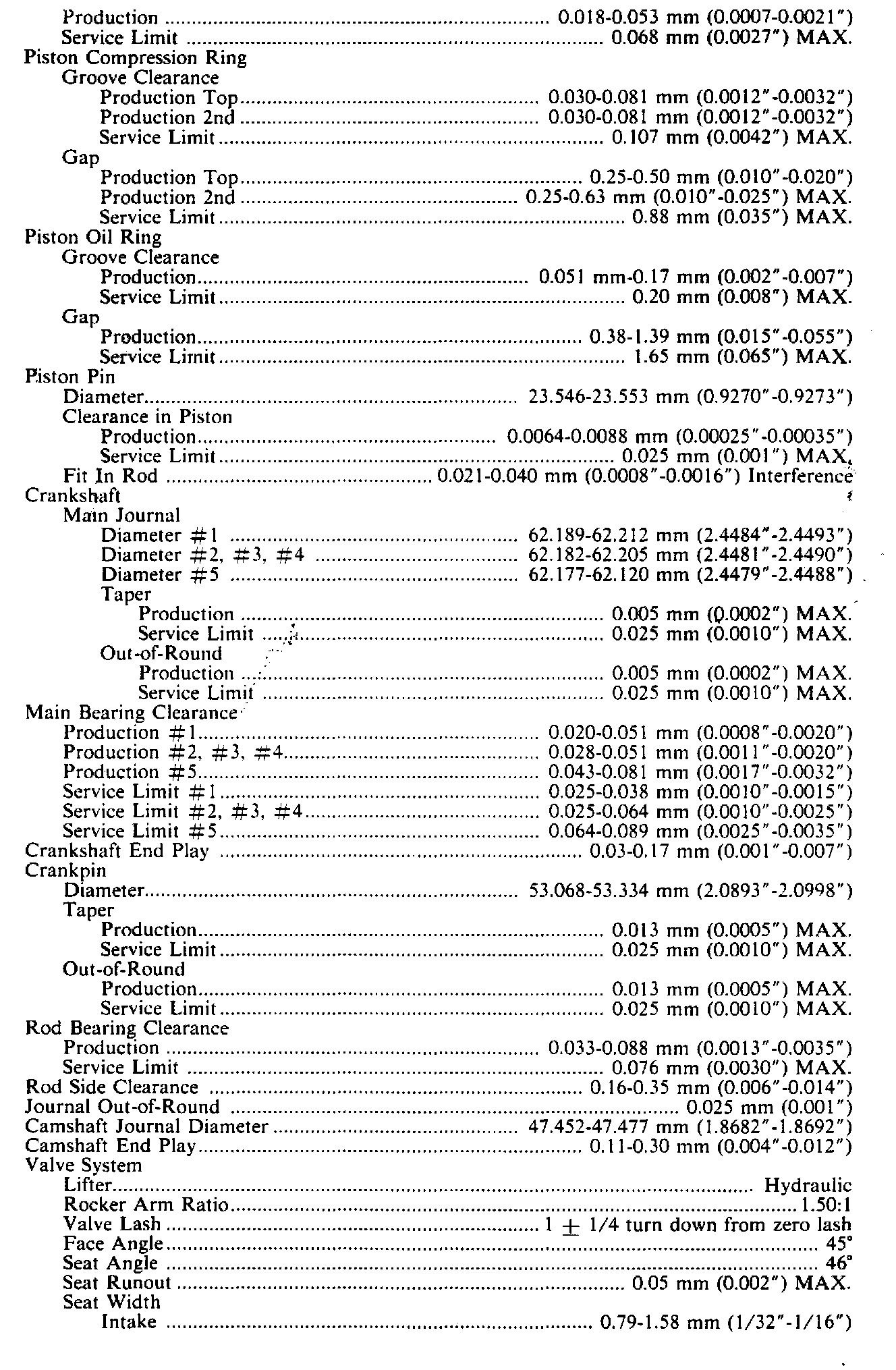

Engine Specifications (L98):

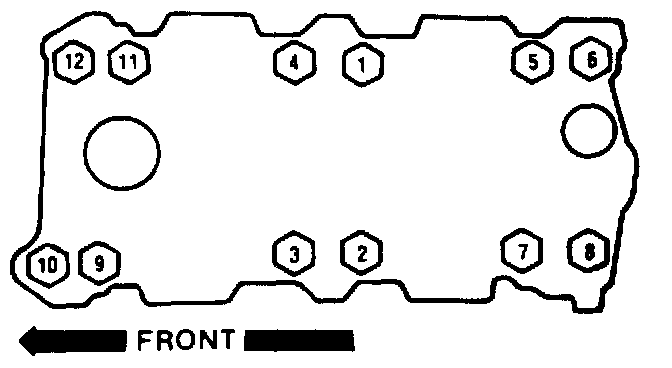

Intake Manifold Torque Sequence:

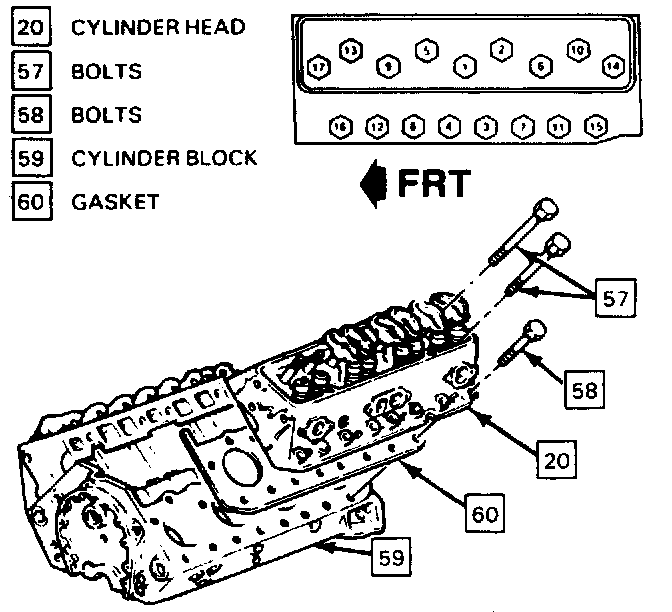

Cylinder Head Torque Sequence:
