Computer Command Control - Port Fuel Injection

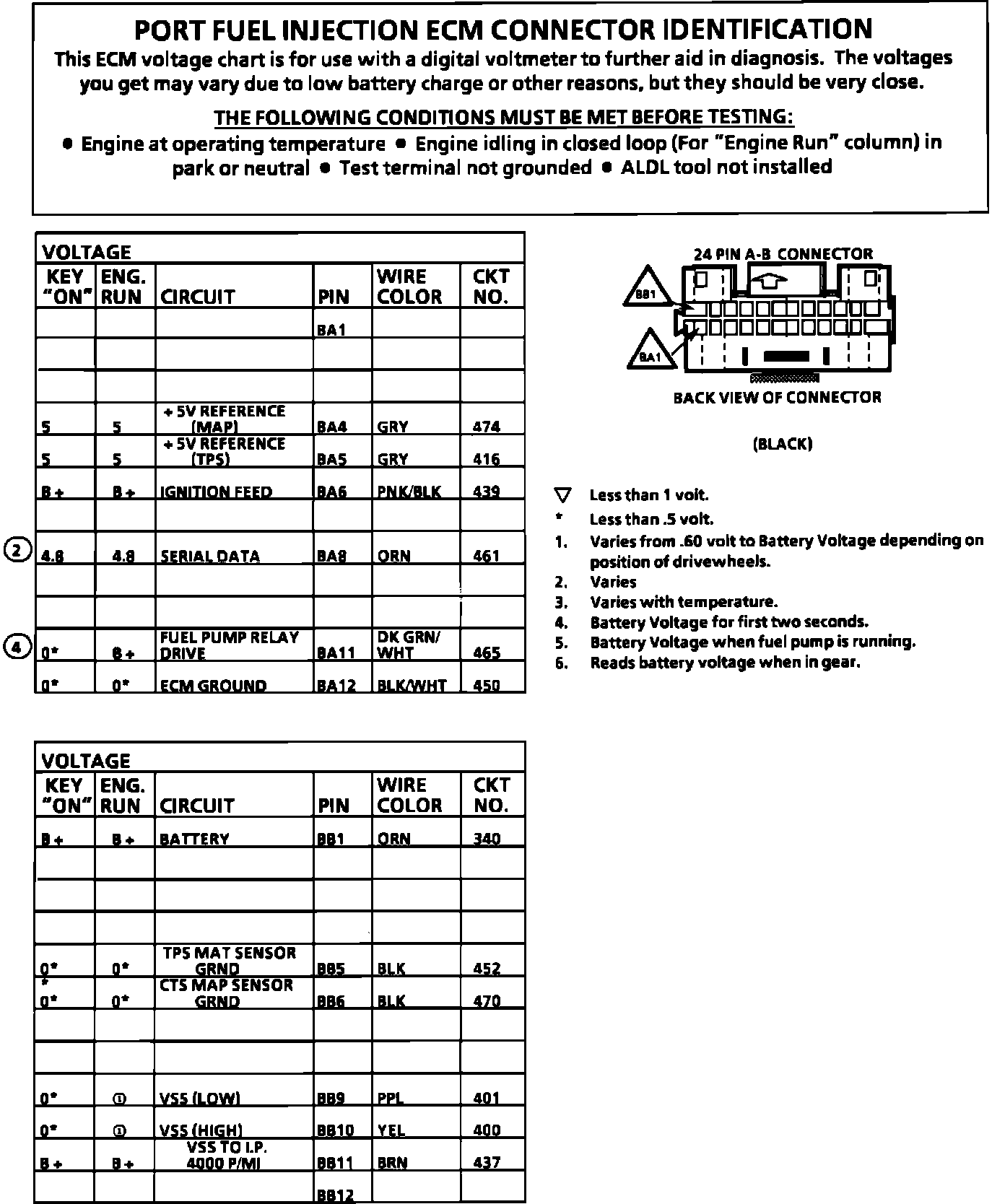

ECM Connector Terminal Identification And Voltage Specification (Part 1 Of 3):

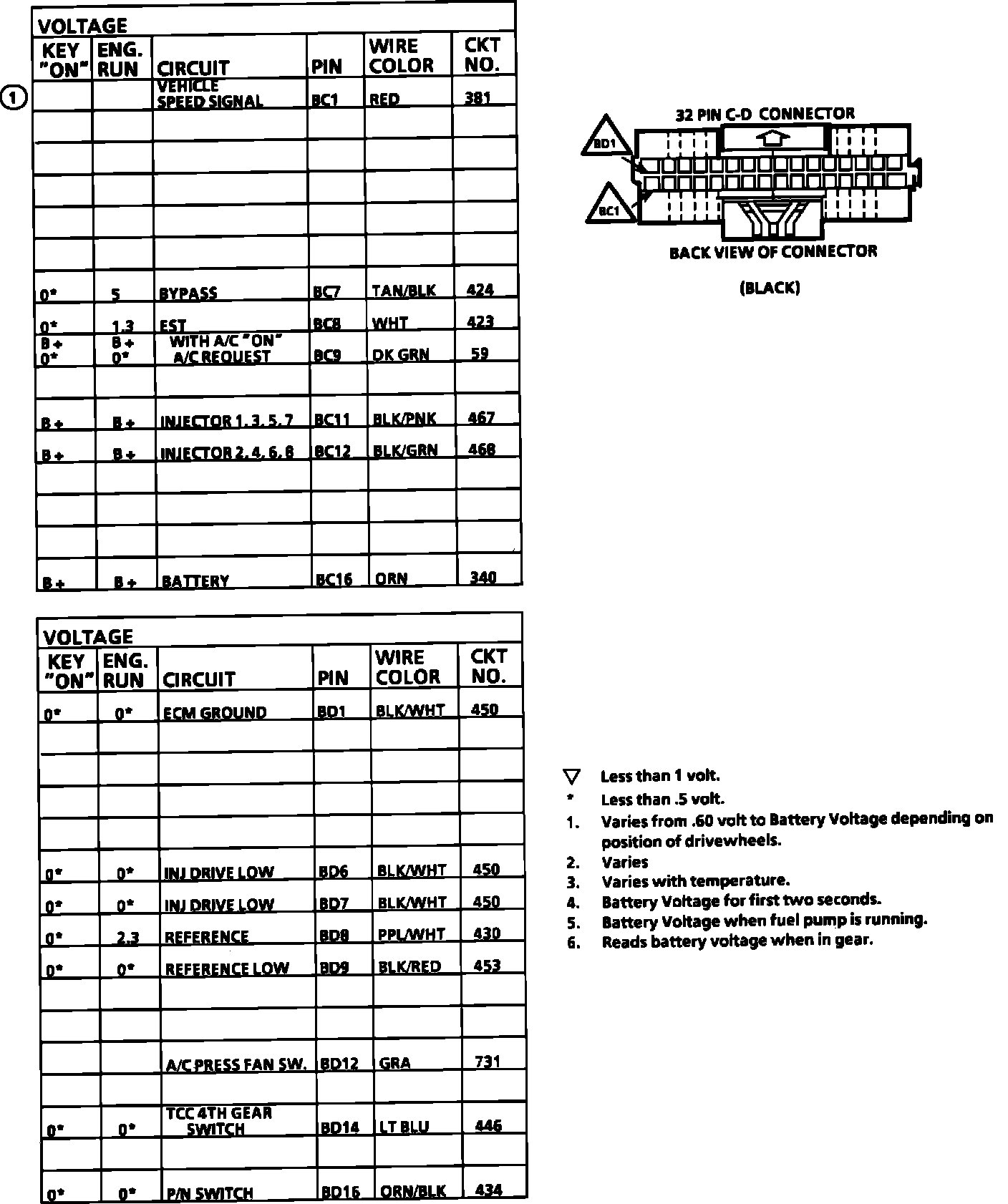

ECM Connector Terminal Identification And Voltage Specification (Part 2 Of 2):

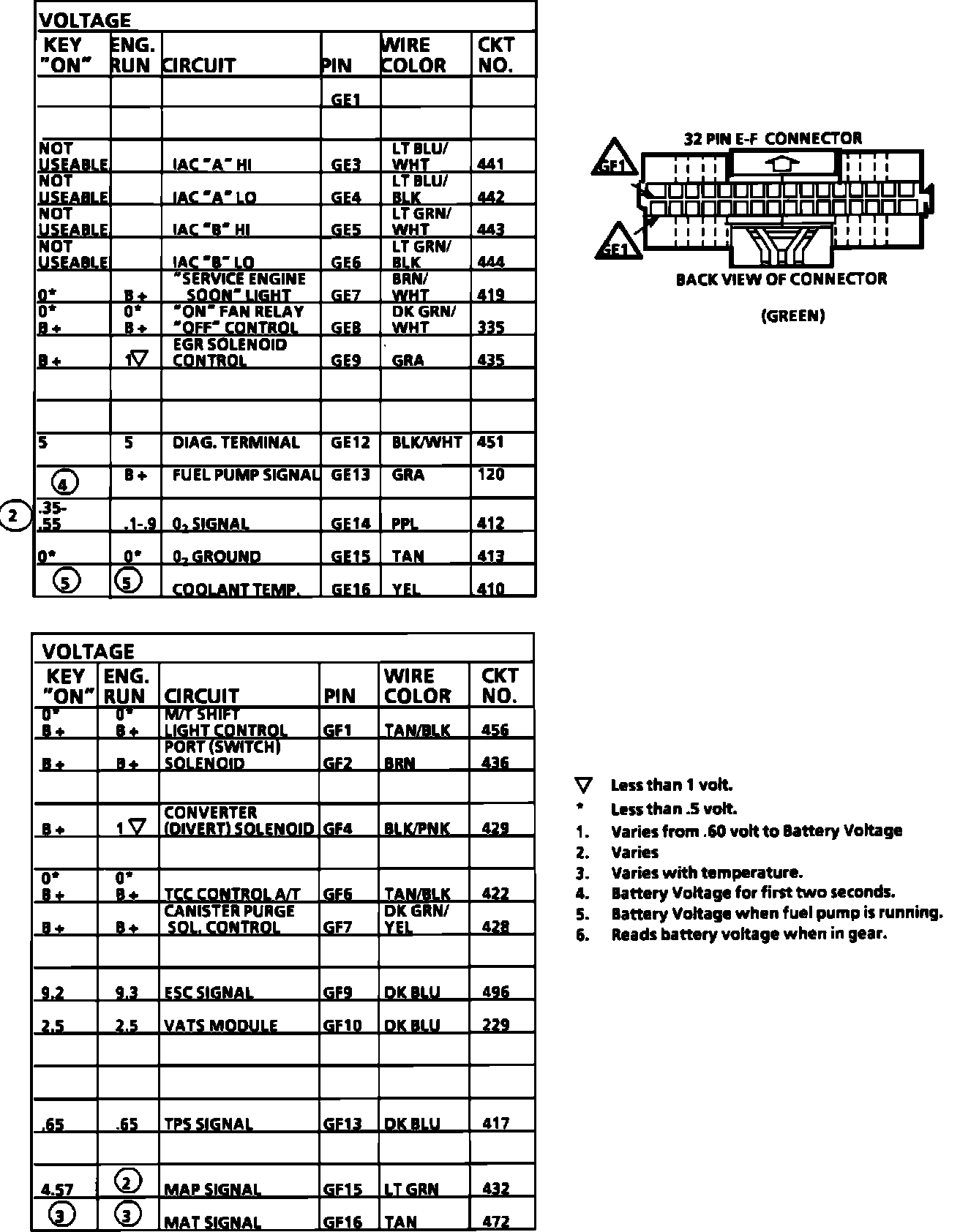

ECM Connector Terminal Identification And Voltage Specification (Part 3 Of 3):
