Firebird V6-191 3.1L
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Automatic Transmission/Transaxle
>>
Internal Components
Internal Components

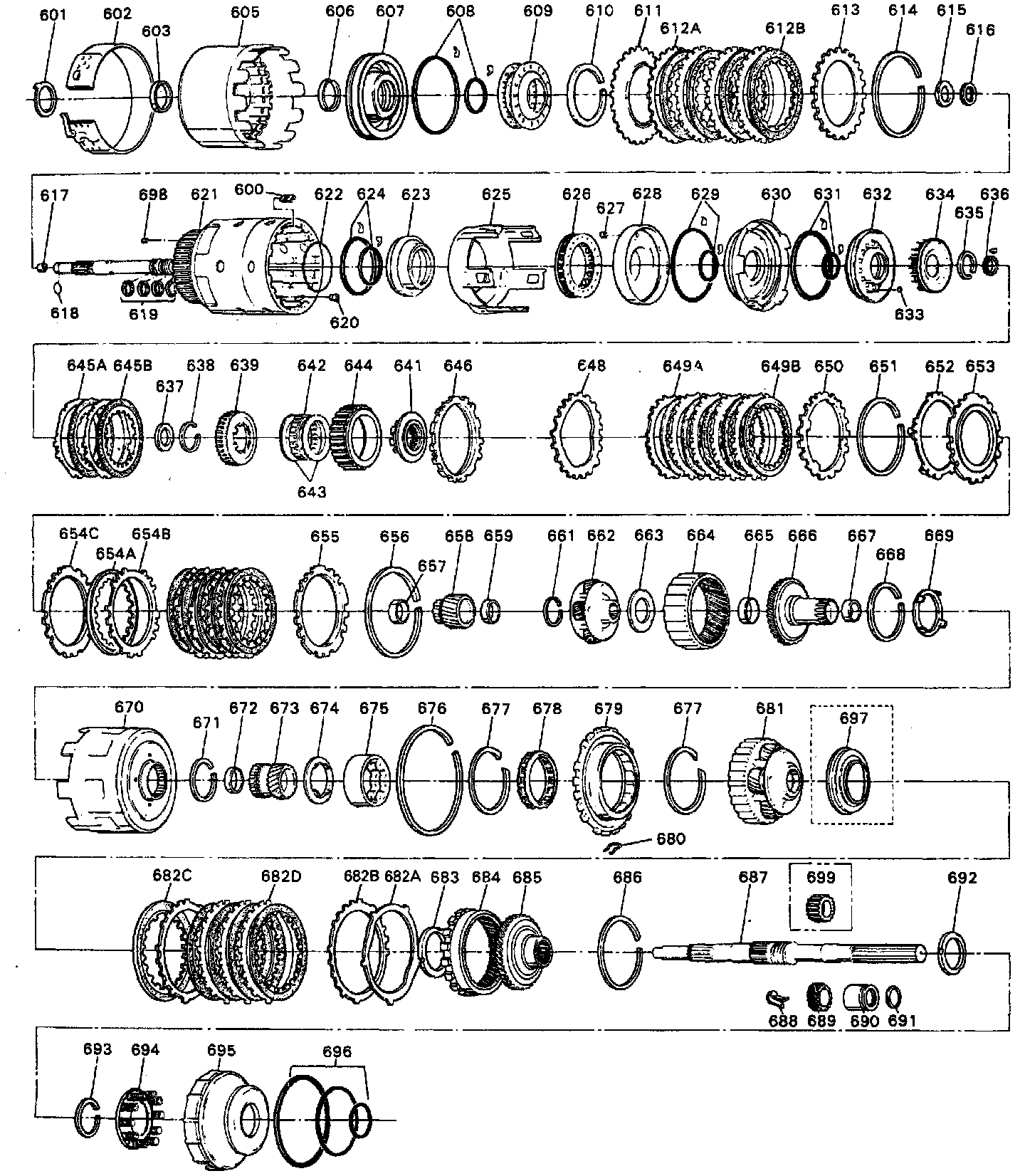

Internal Components ( Part 1 Of 2 ):

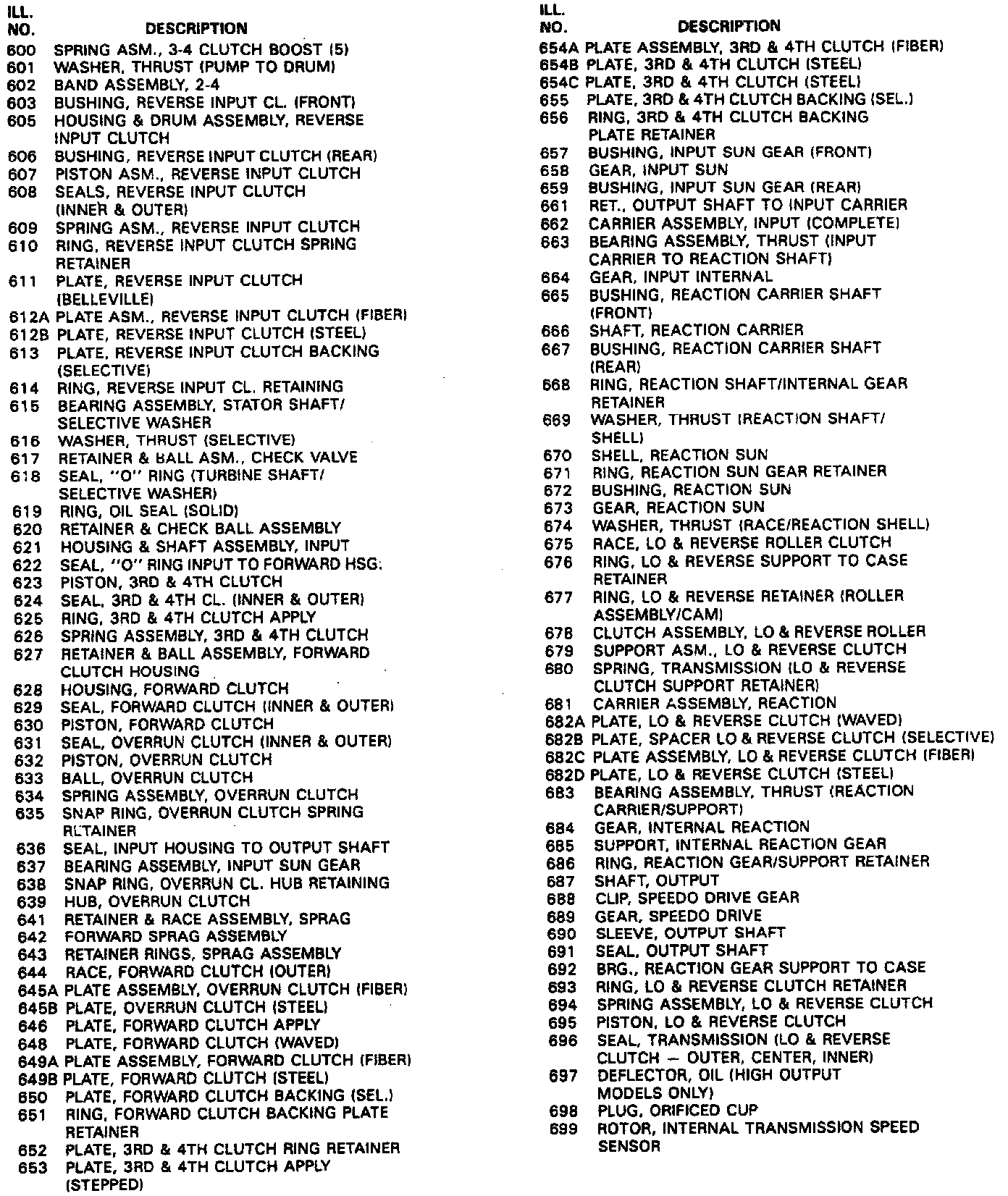

Internal Components ( Part 2 Of 2 ):
