Home >> Pontiac >> 1990 >> 6000 V6-191 3.1L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> Intake Manifold >> Lower Intake Torque Specifications

Lower Intake Torque Specifications

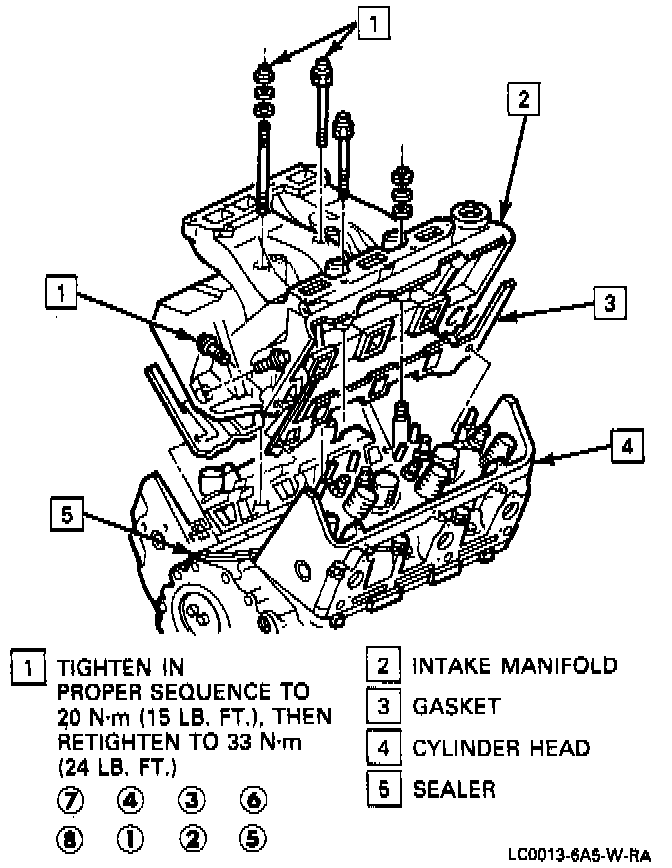

Figure 1. Intake Manifold Installation:






Intake Manifold Bolt Torque and Sequence
