Home >> Pontiac >> 1990 >> 6000 V6-191 3.1L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine >> Cylinder Head Assembly

Cylinder Head Assembly

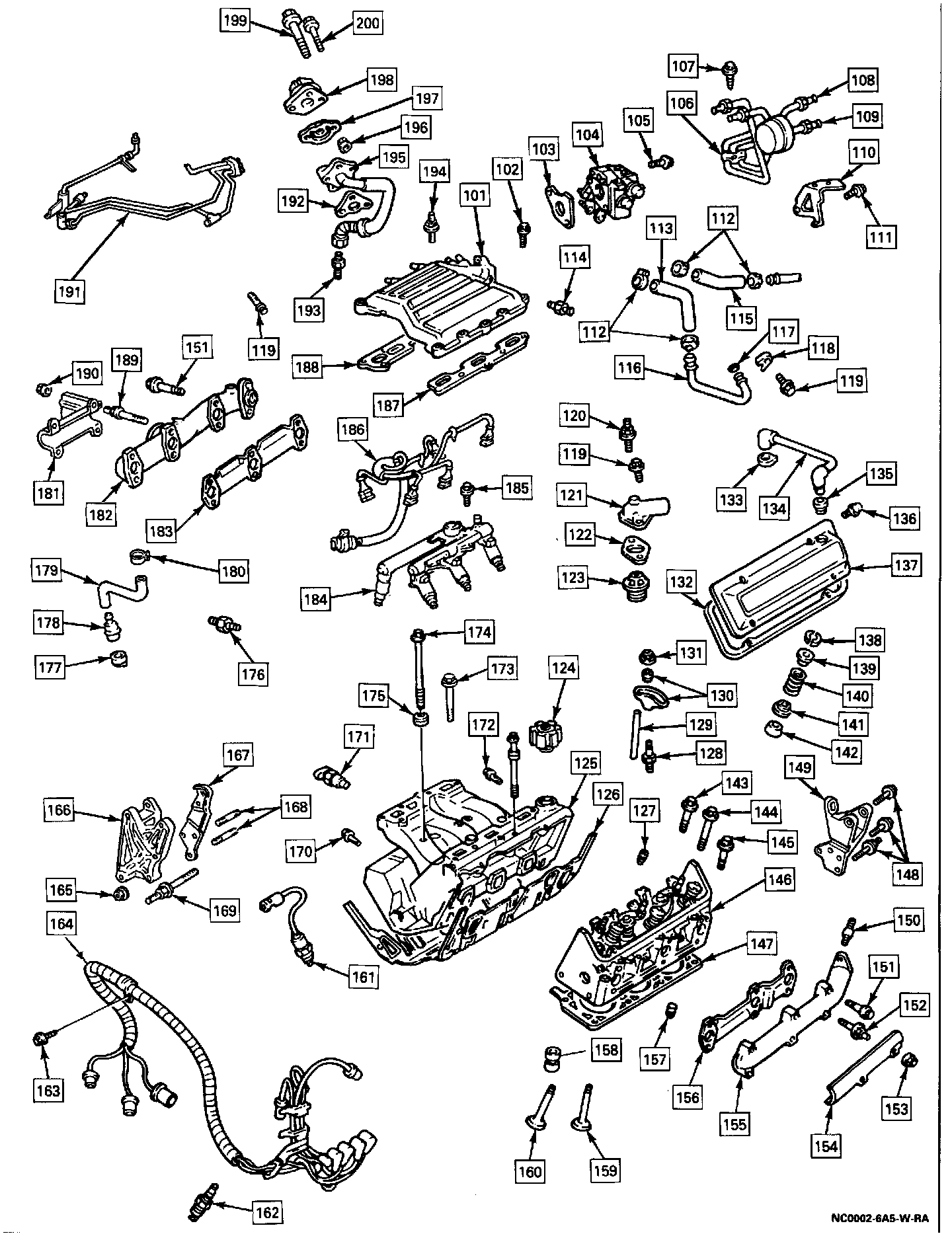

Cylinder Head Assembly:

Cylinder Head Assembly

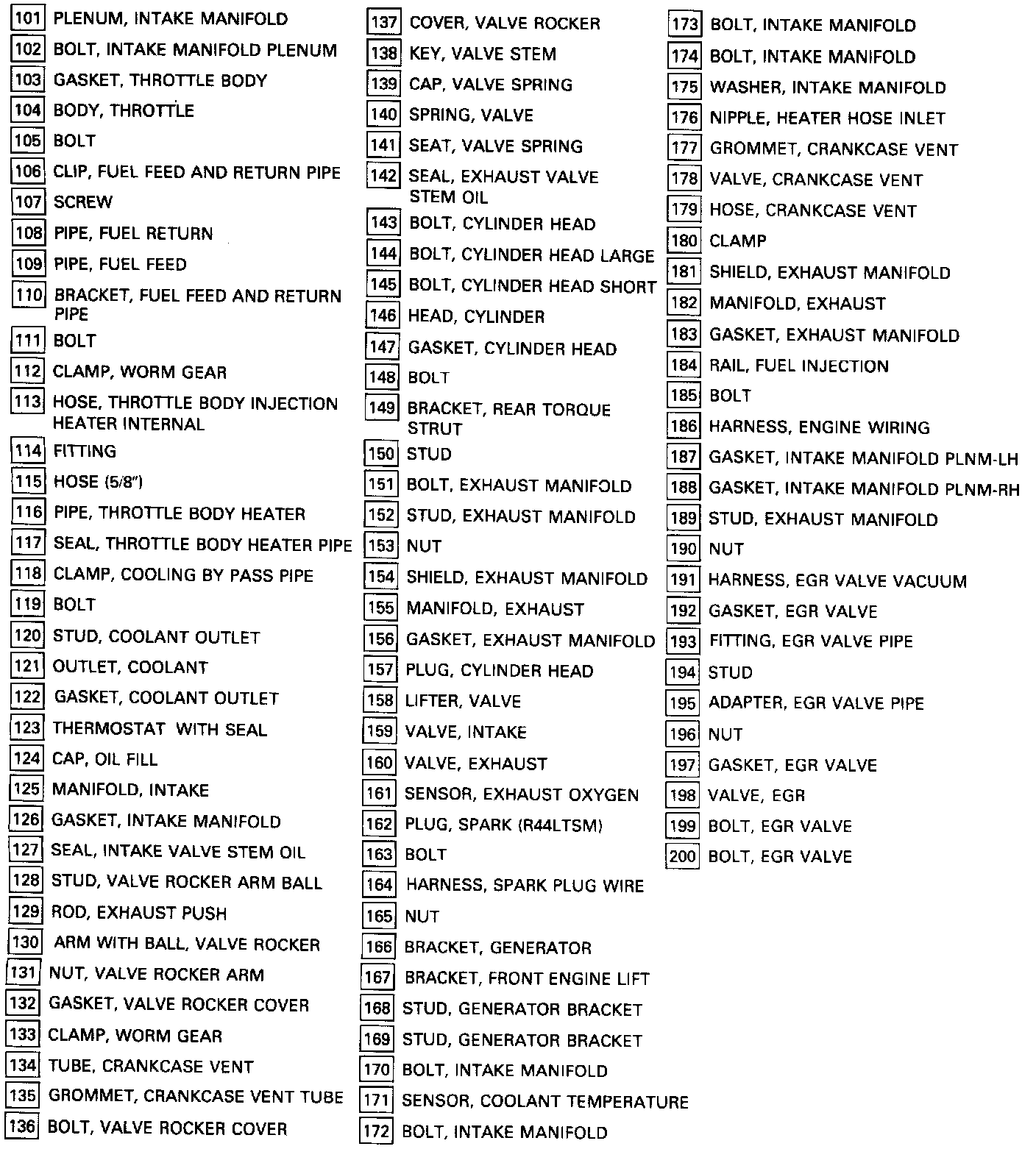

Cylinder Head Assembly ( Legend ):

Cylinder Head Assembly, Legend
