Home >> Pontiac >> 1989 >> Lemans FWD L4-98 1.6L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications

System Specifications

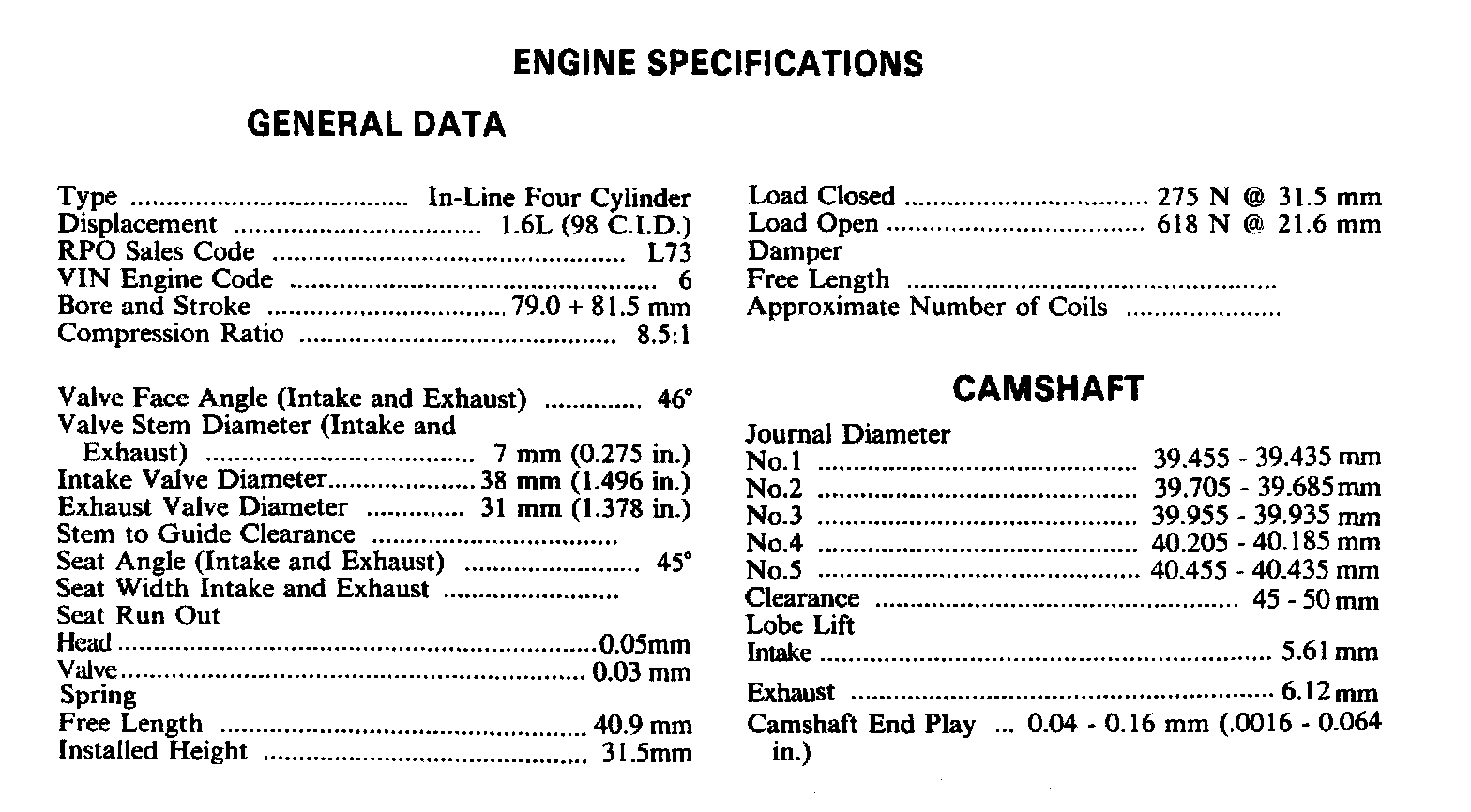

Engine Specifications:

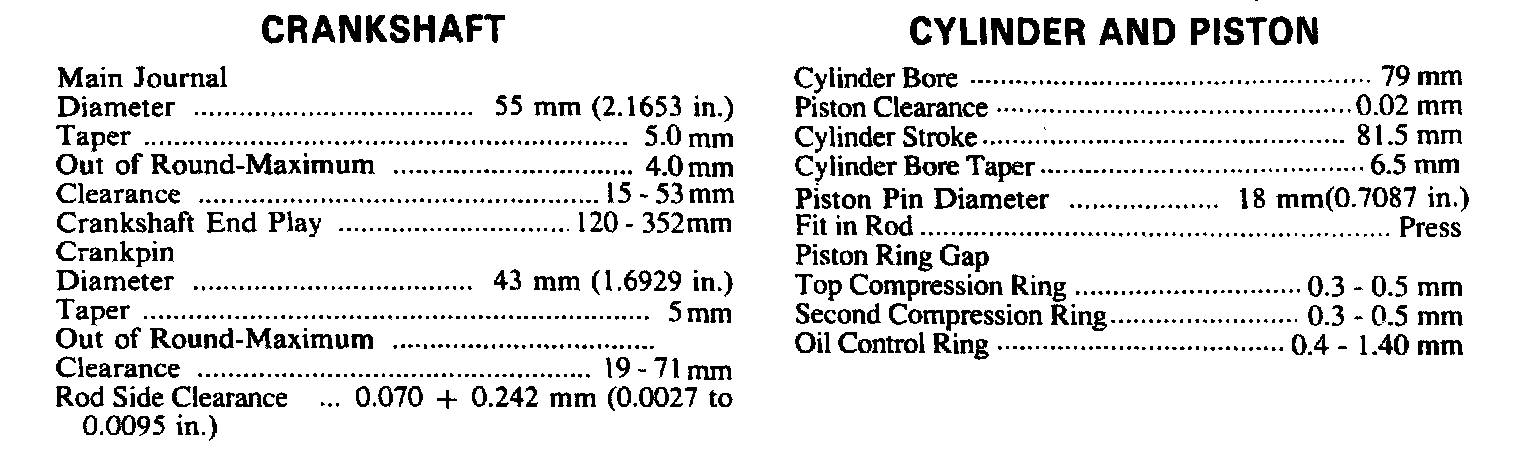

Continued Engine Specifications:




Continued Engine Specifications:

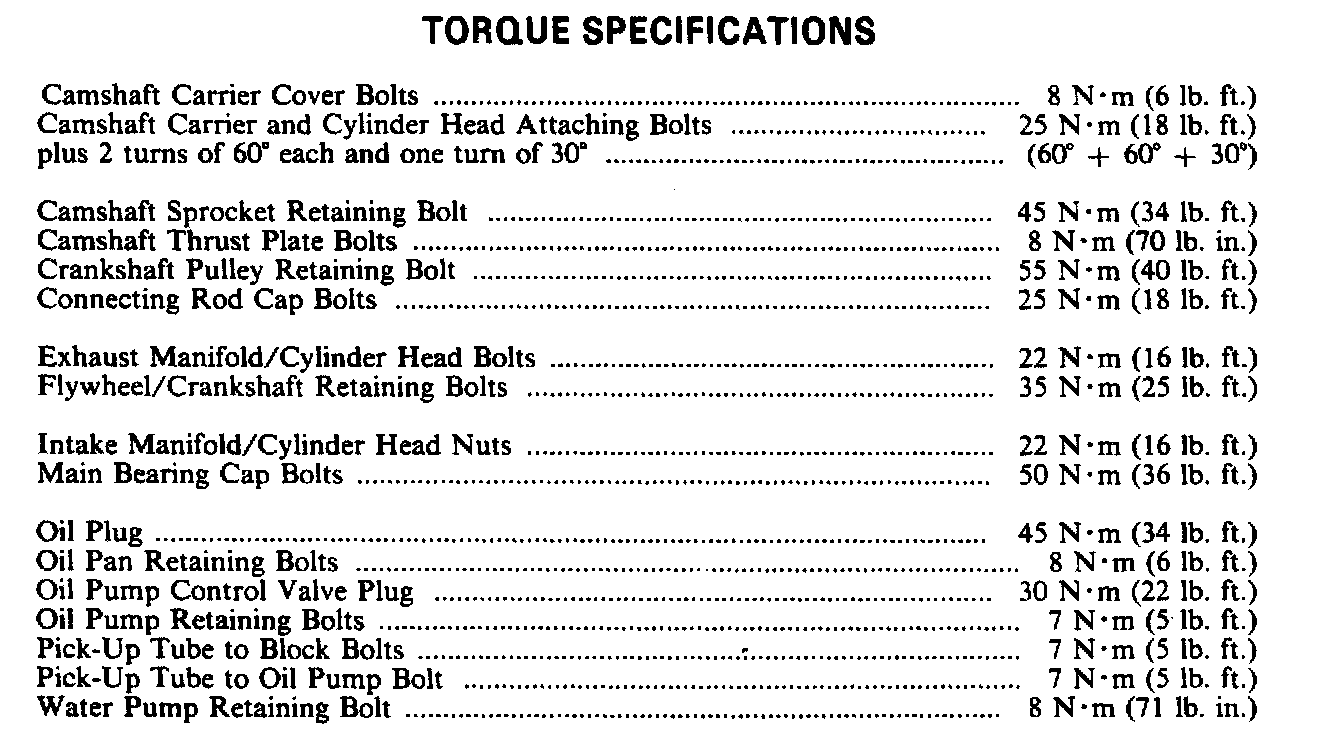

Torque Specifications:

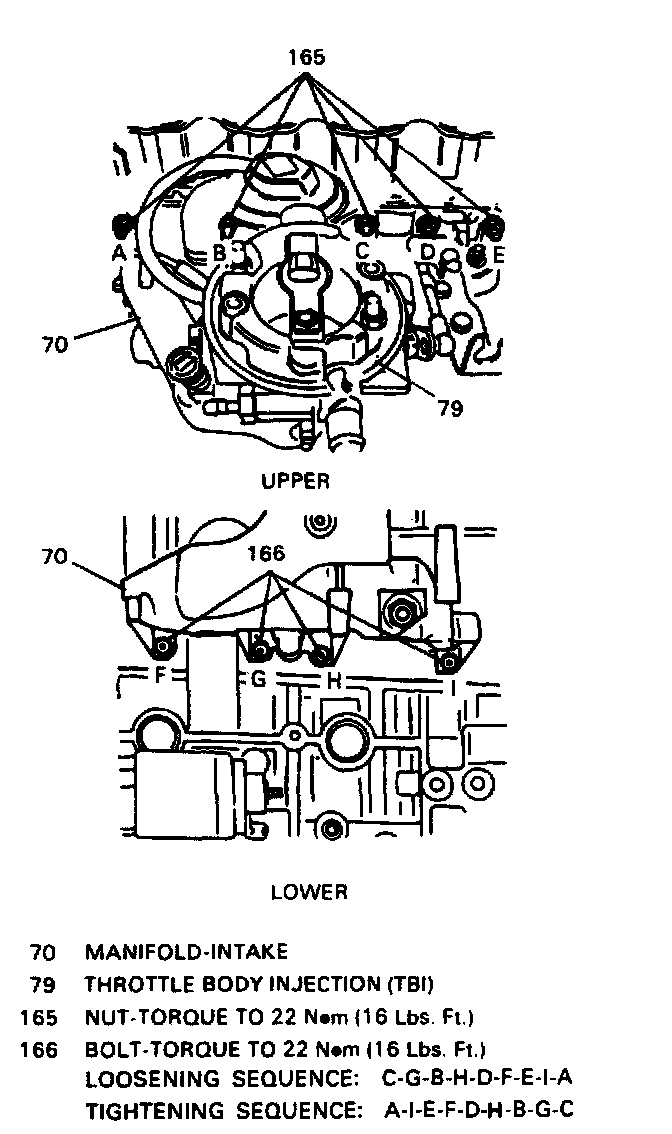

Intake Manifold Sequence:





Cylinder Head Sequence:
