Engine Control Module
>>
With VIN M
With VIN M

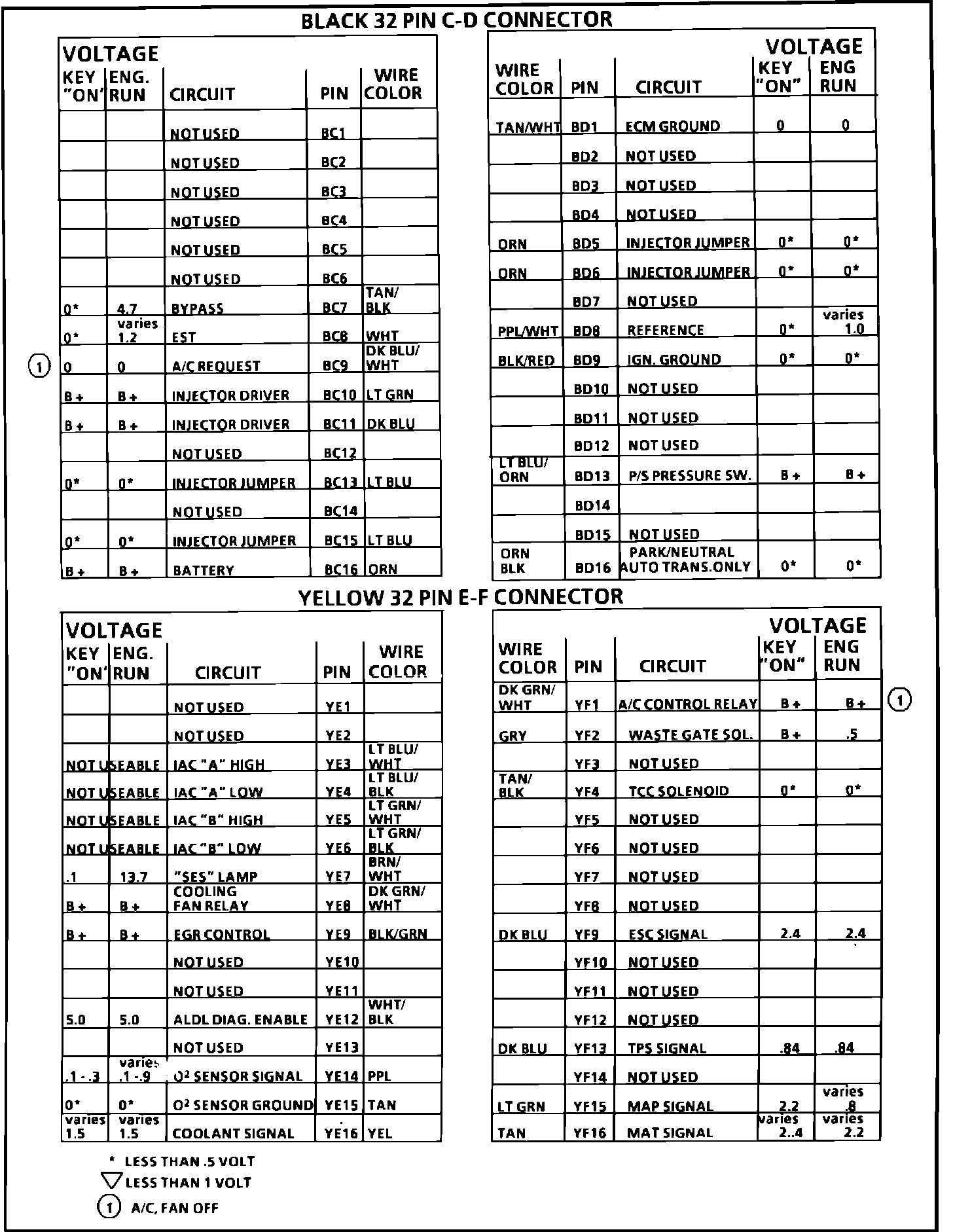

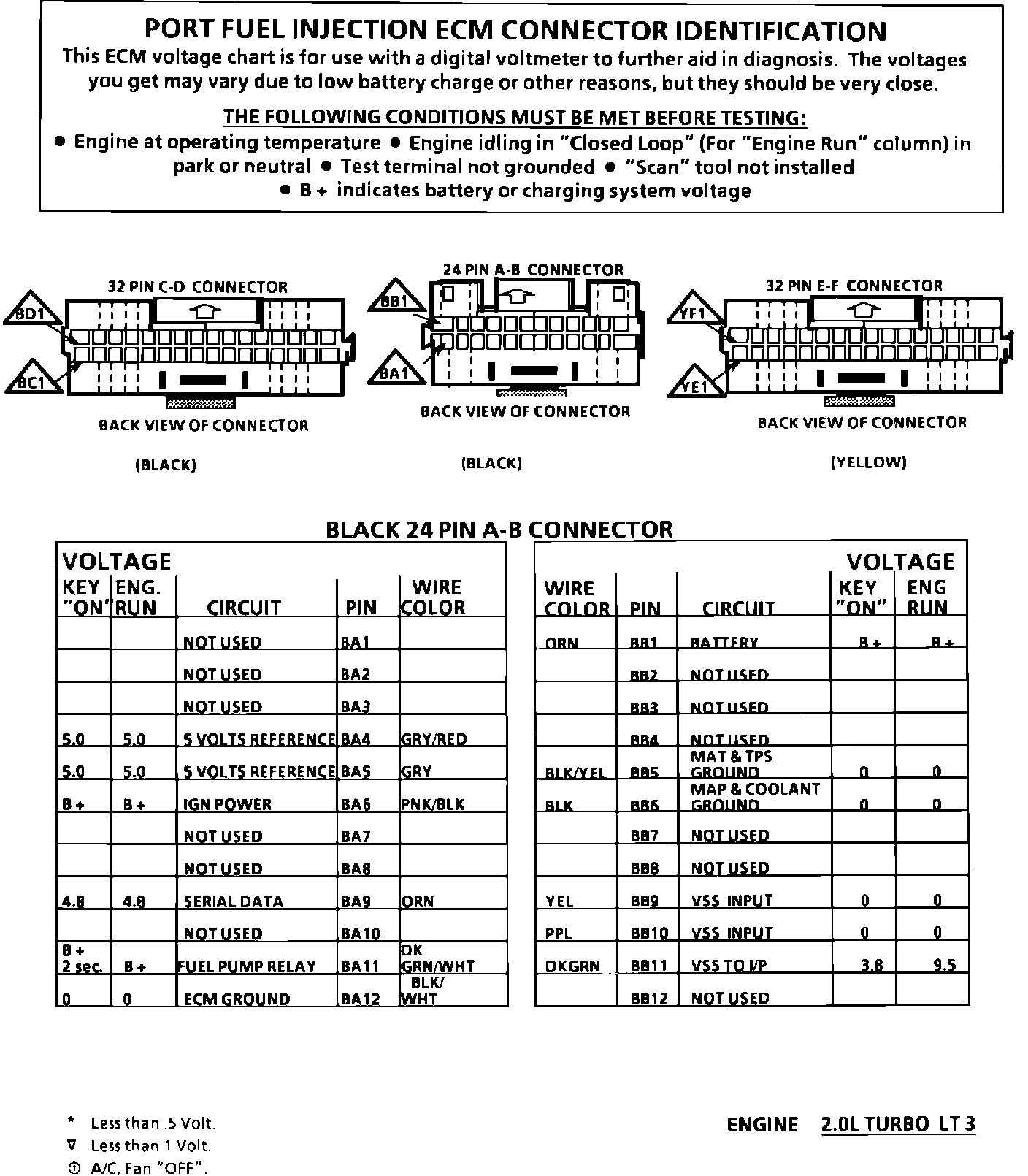

ECM Connector Terminal Identification (Part 1 Of 2):
ECM Connector Terminal Identification (Part 2 Of 2):
