Home >> Pontiac >> 1989 >> J2000/Sunbird L4-121 2.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module >> With VIN K

With VIN K

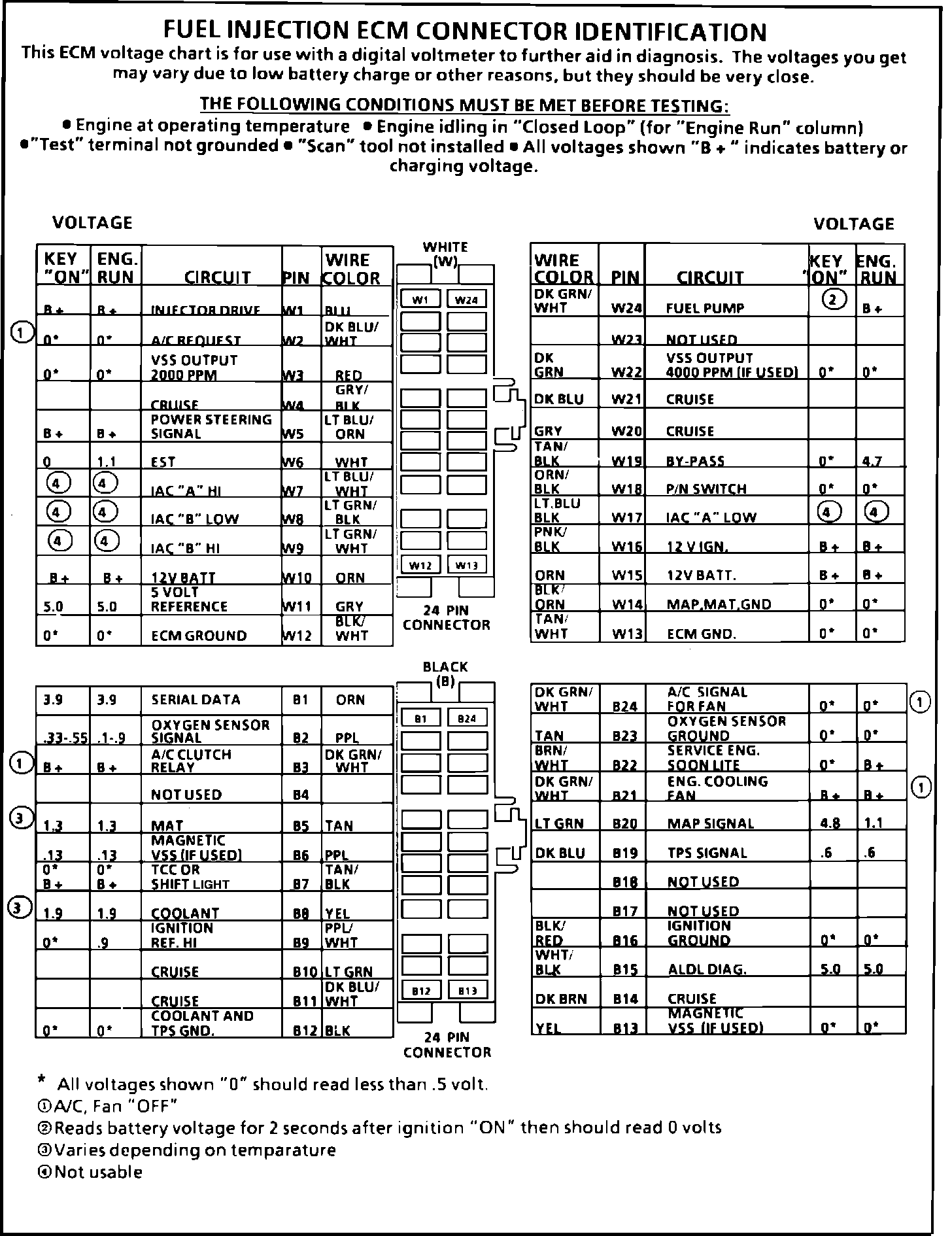

ECM Terminal End View:
