Home >> Pontiac >> 1988 >> 6000 L4-151 2.5L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Throttle Position Sensor >> Locations

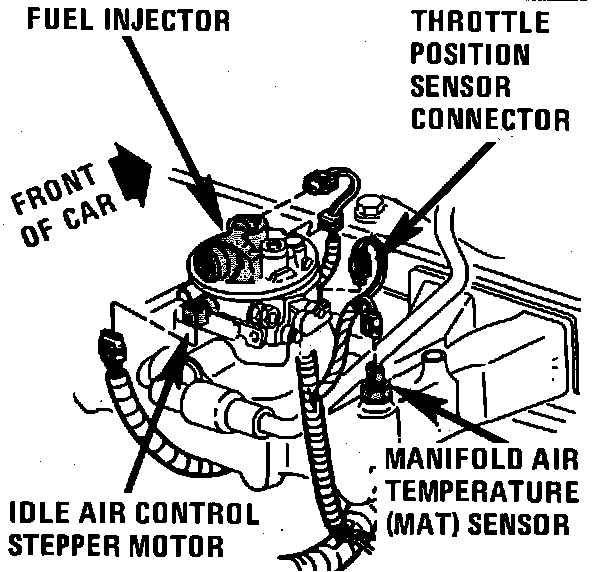

Throttle Position Sensor: Locations

Top Rear Of 4-151/2.5L:




Rear Of Engine, RH Front Of Throttle Body

Applicable to: 5L Engine
