Home >> Pontiac >> 1988 >> 6000 L4-151 2.5L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Relays and Modules - Computers and Control Systems >> Engine Control Module >> Locations >> 6000

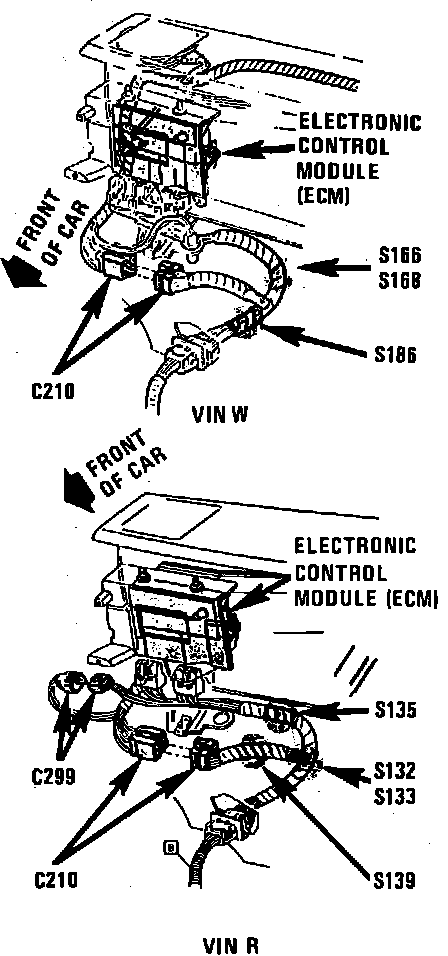

Engine Control Module: Locations: 6000

Electronic Control Module.:

Behind RH Side Of I/P, Right Of I/P Compartment

Applicable to: Celebrity, Century & 6000 w/4-151/2.5L & V6-173/2.8L Engines
