Home >> Pontiac >> 1987 >> J2000/Sunbird L4-121 2.0L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Engine Control Module >> Diagrams >> With Port Fuel Injection >> Part 1 of 2

Part 1 of 2

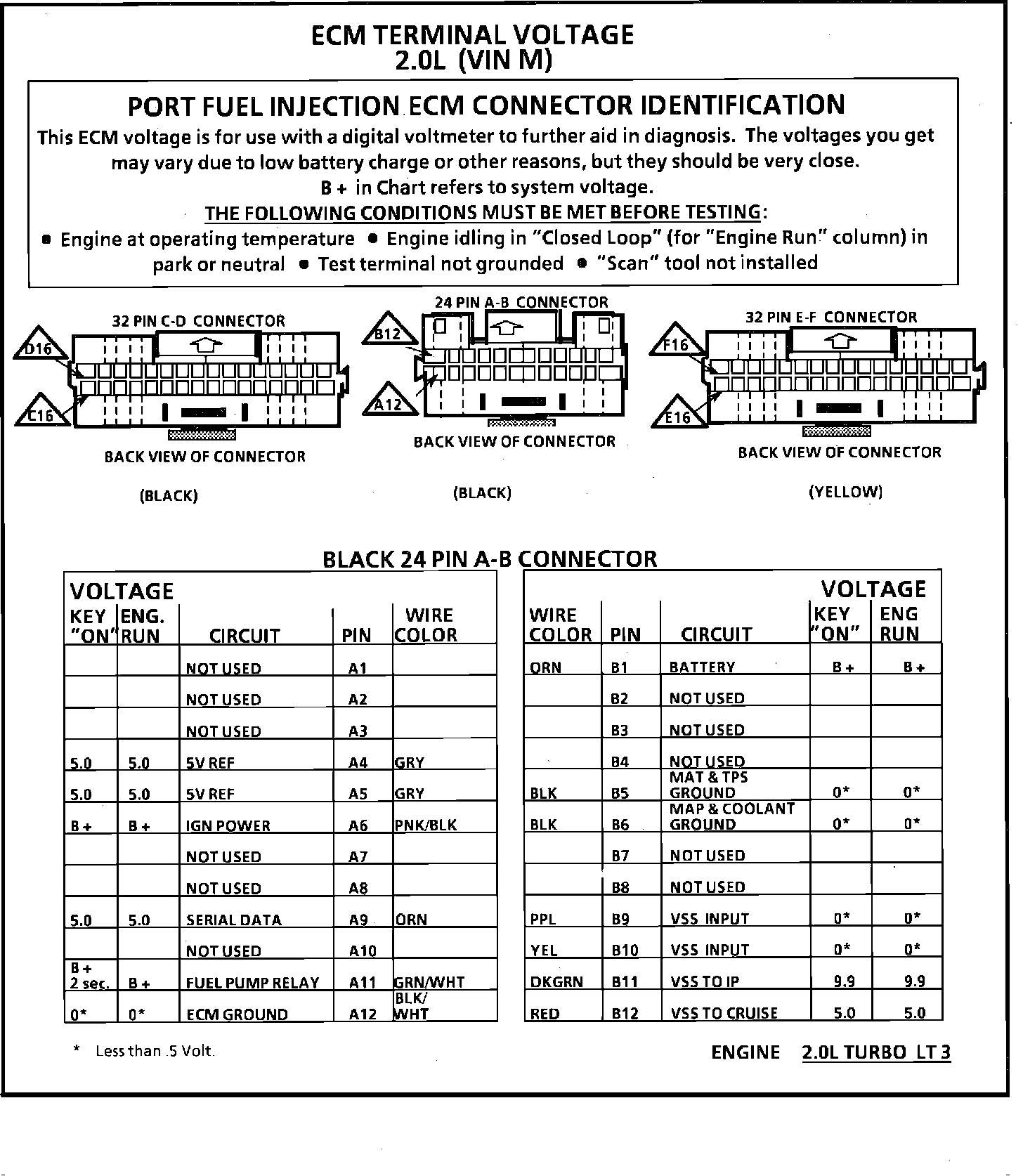

ECM Terminal ID & Voltage Specifications (Part 1 of 2).:



ECM Terminal ID & Voltage Specifications (Part 2 of 2):
