Engine Specifications

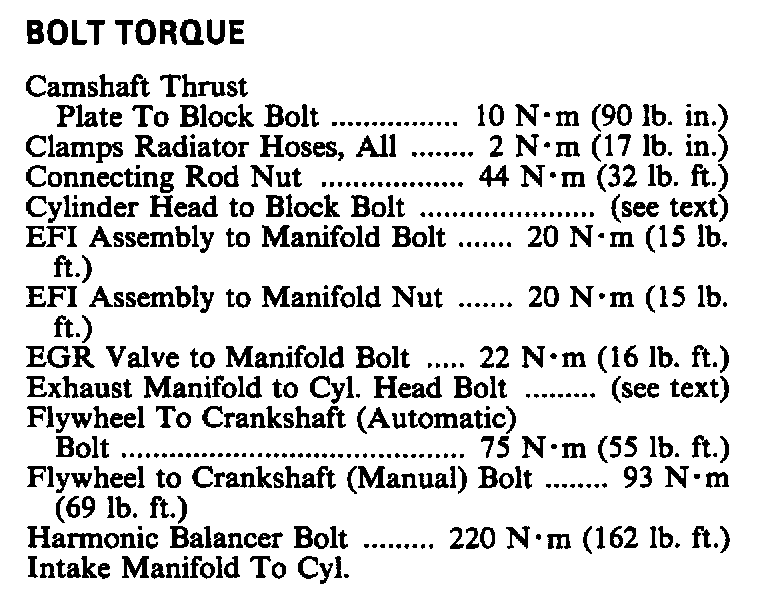

Torque Specifications:

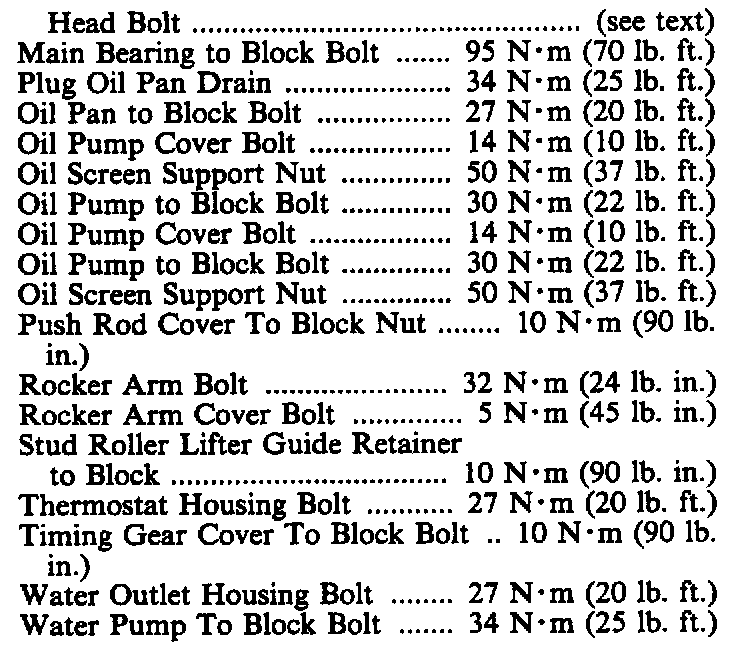

Continued Torque Specification:

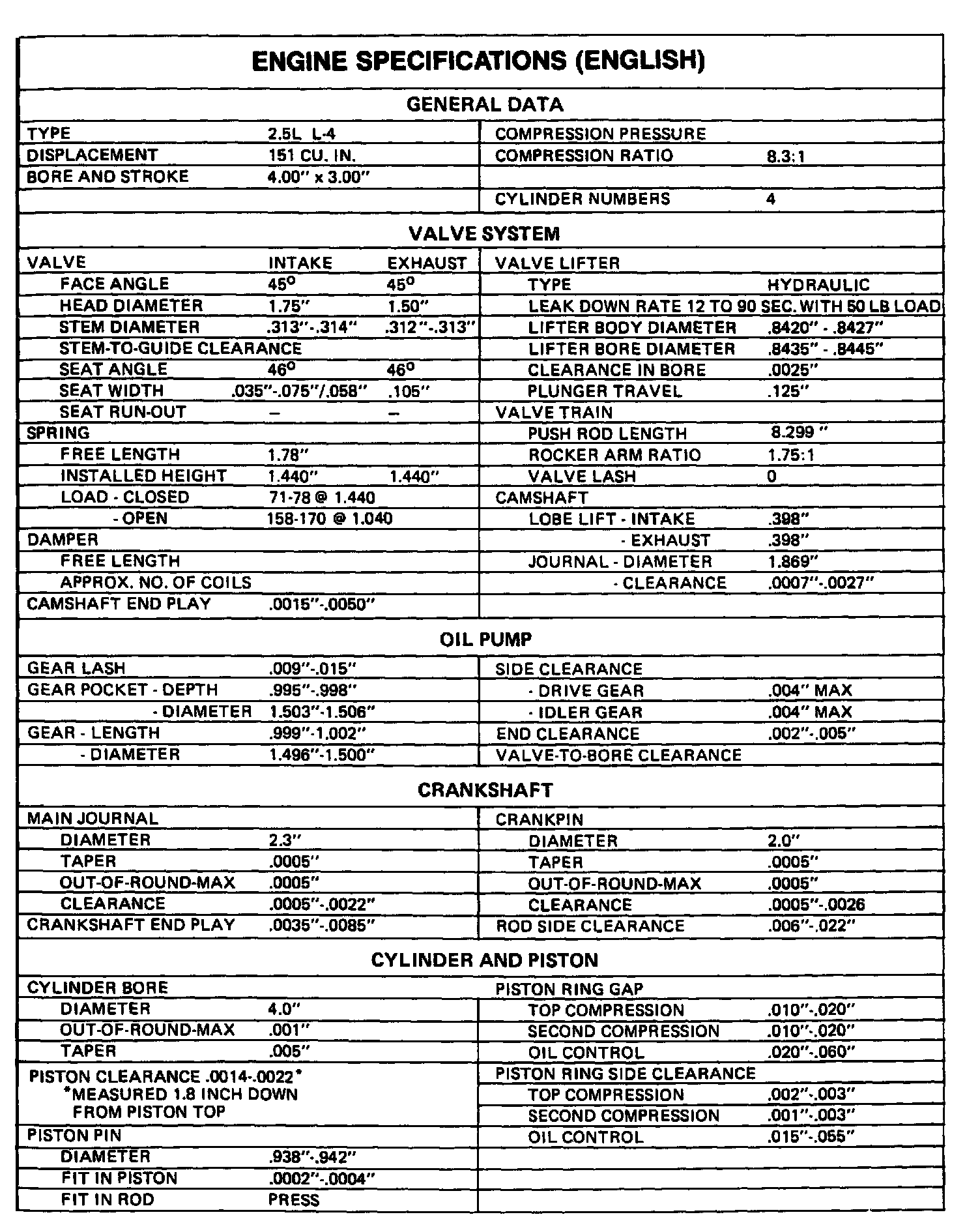

Engine Specifications:

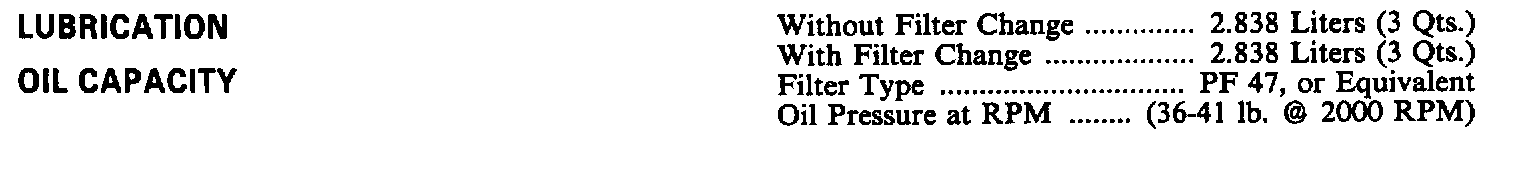

Continued Engine Specifications:

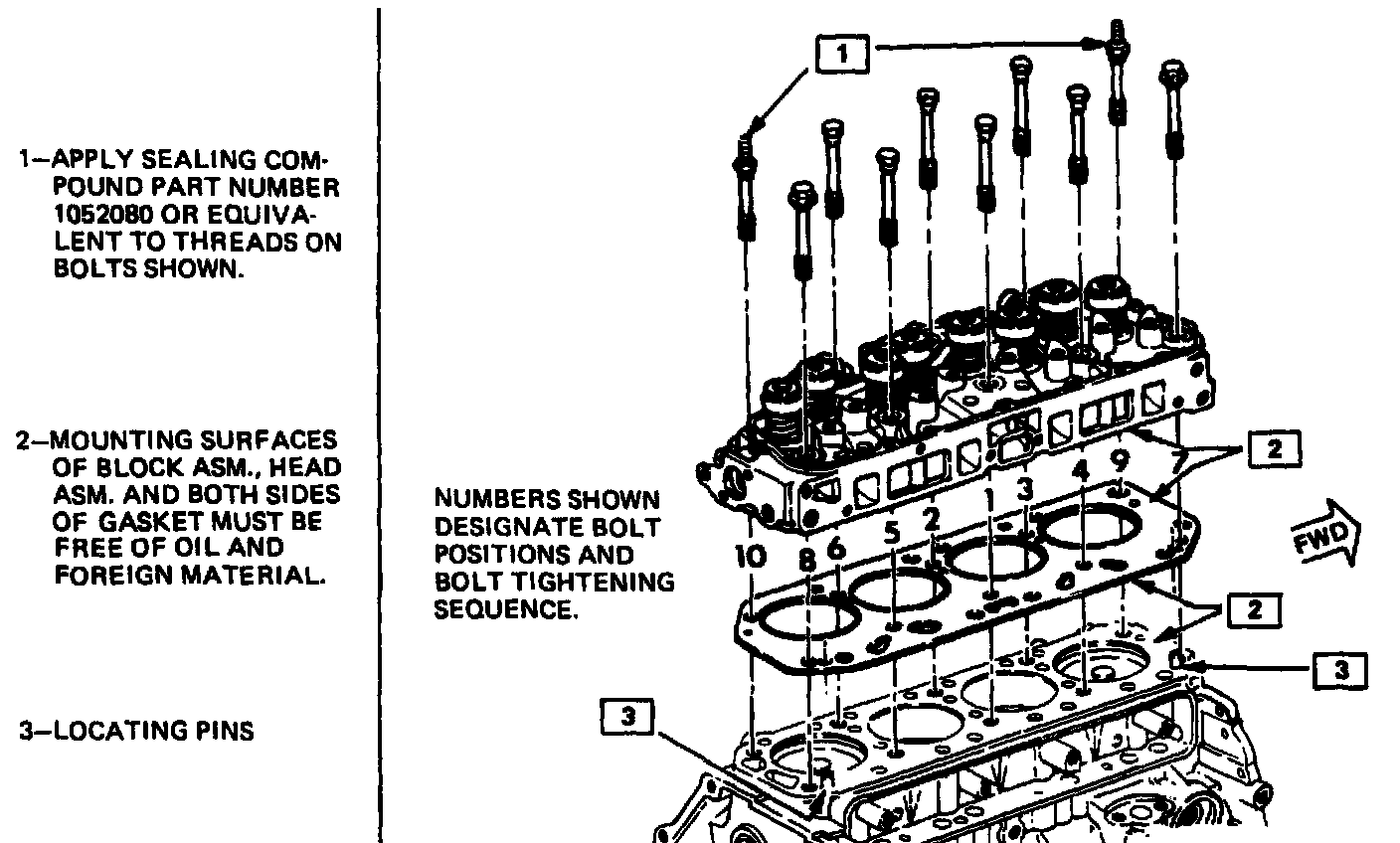

Cylinder Head Sequence:
