Home >> Pontiac >> 1987 >> 6000 V6-173 2.8L >> Repair and Diagnosis >> Powertrain Management >> Ignition System >> Relays and Modules - Ignition System >> Ignition Control Module >> Locations

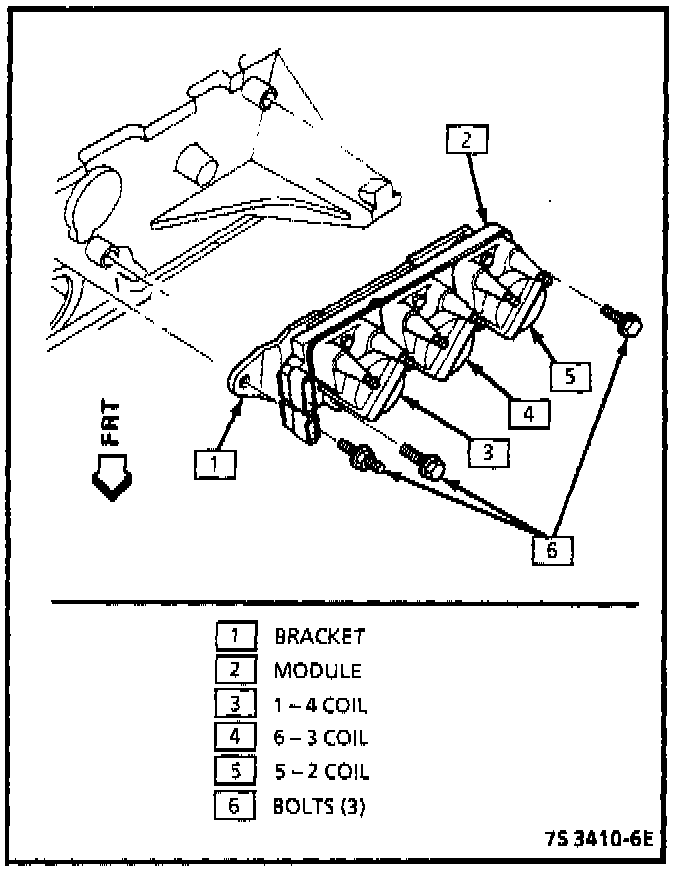

Ignition Control Module: Locations

Ignition Coil And Module:
