Engine Control Module
>>
Without Speed Density
>>
Part 1 of 2
Part 1 of 2

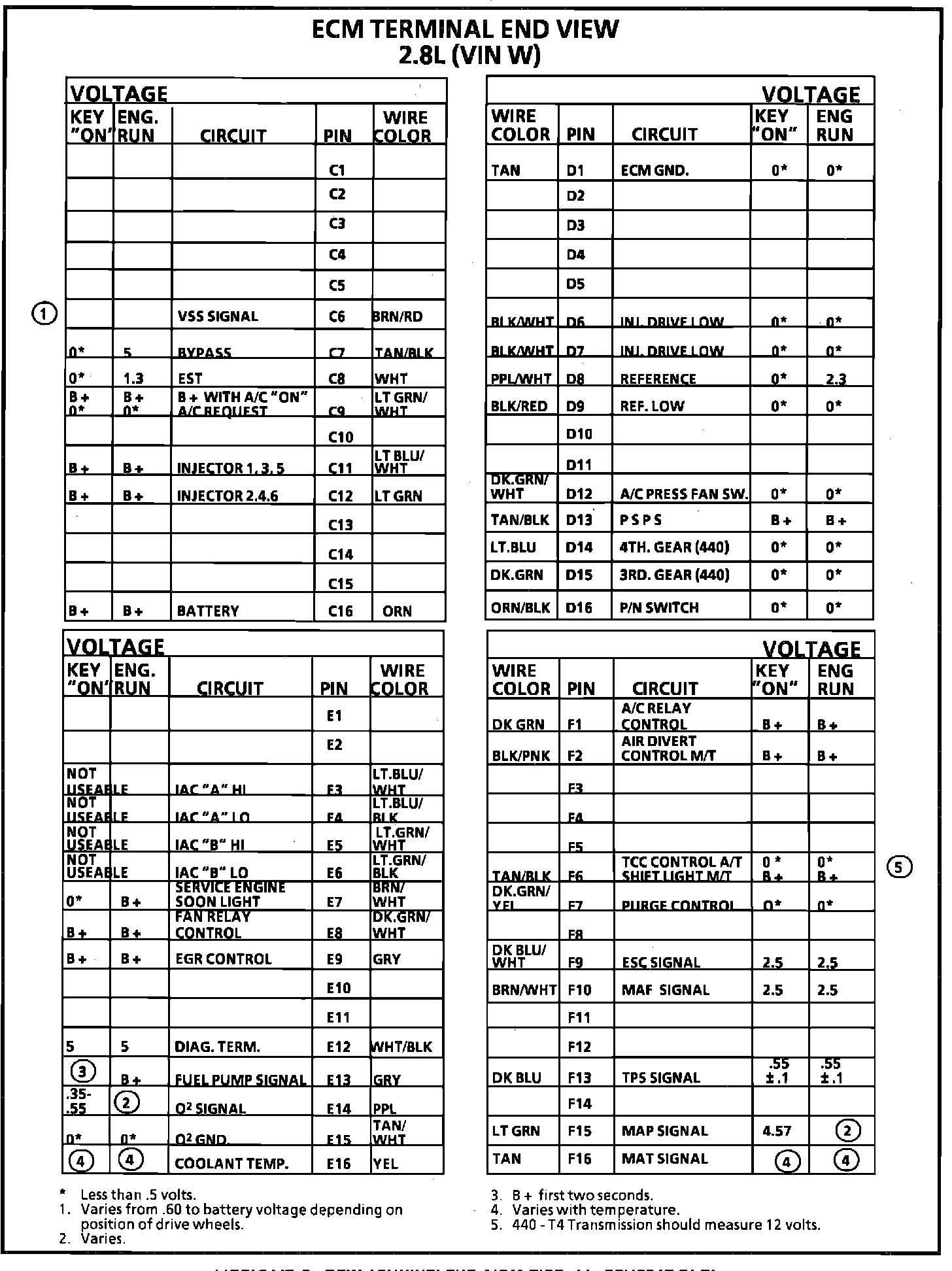

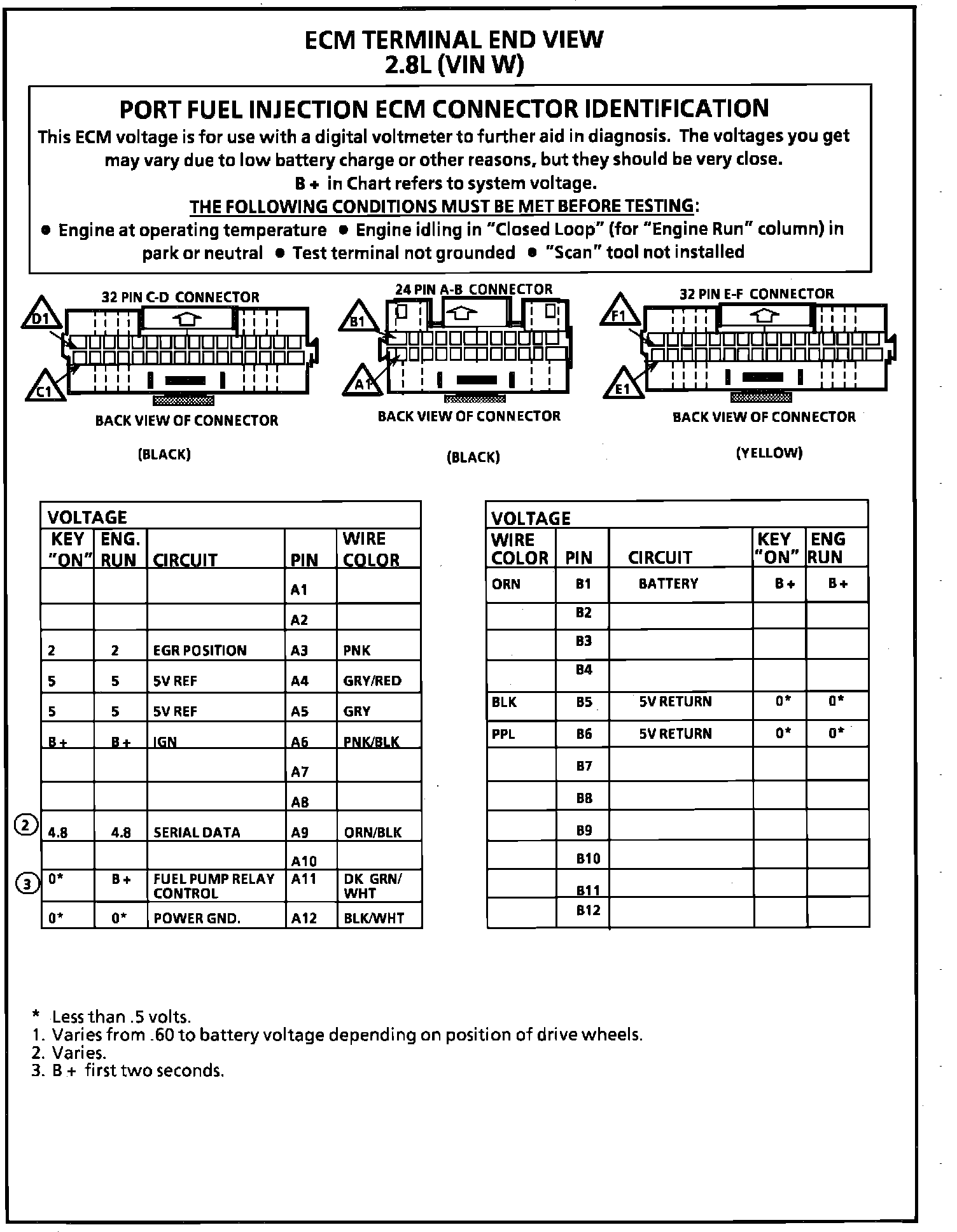

ECM Terminal I.D. & Voltage Specifications (Part 1 of 2):
ECM Terminal I.D. & Voltage Specifications (Part 2 of 2):
