Home >> Pontiac >> 1987 >> 6000 V6-173 2.8L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module >> With Speed Density >> Part 2 of 2

Part 2 of 2

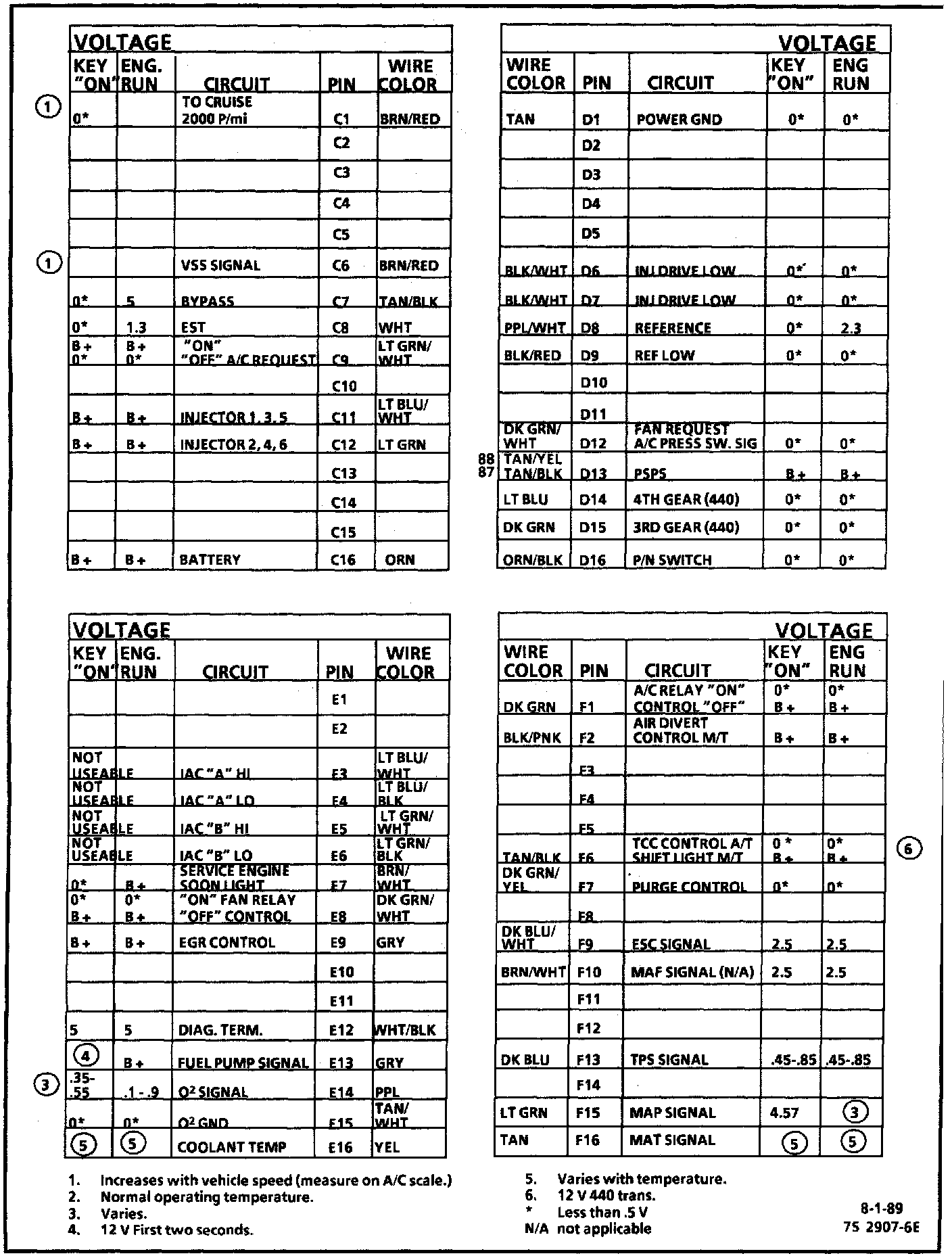

ECM Connector View (2 of 2):
