Home >> Pontiac >> 1987 >> 6000 L4-151 2.5L >> Repair and Diagnosis >> Powertrain Management >> Locations

Powertrain Management: Locations

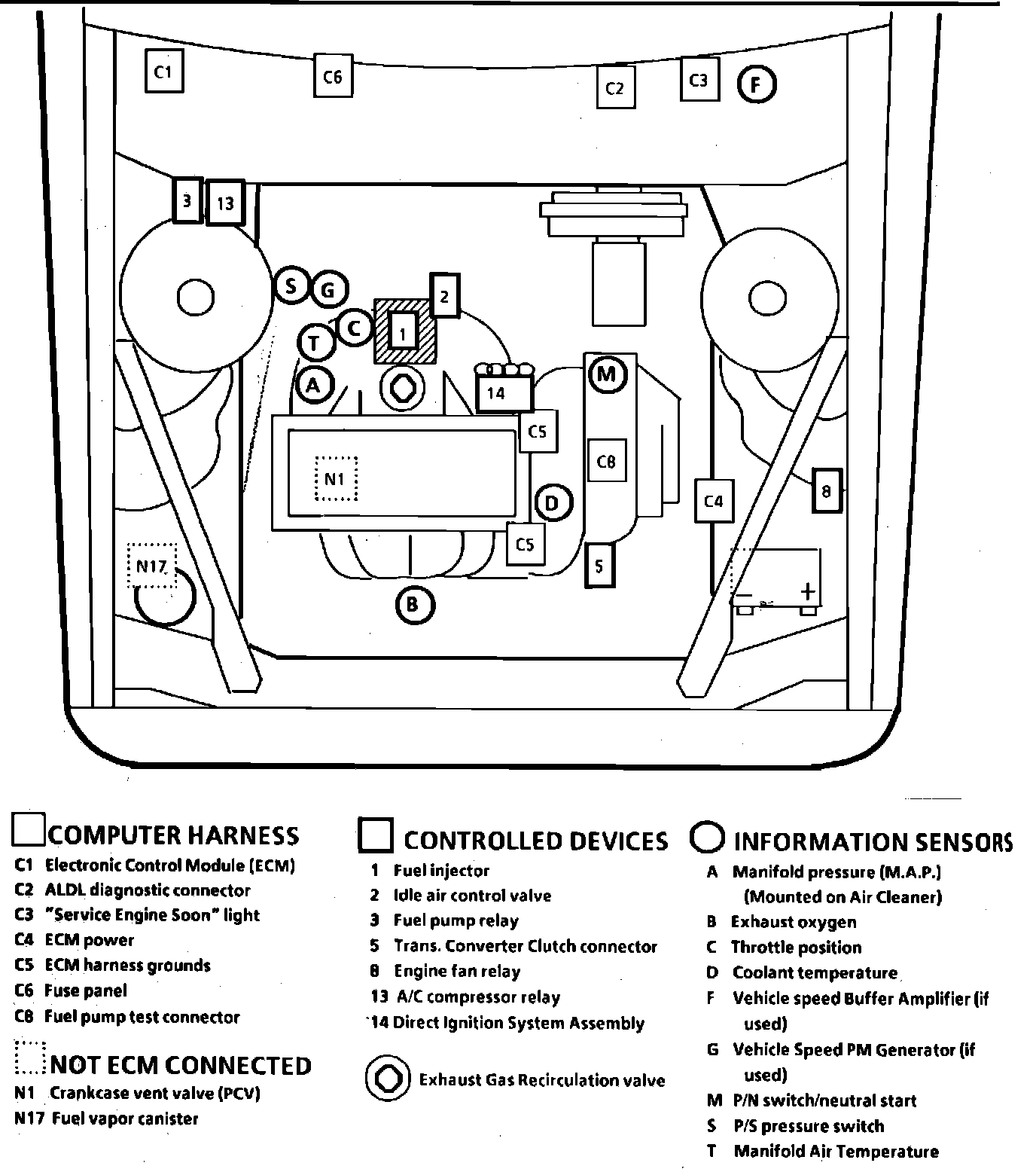

Fig. 63 Emission Component Location. 1987 Celebrity, Cutlass Ciera & 6000 W/4-151/2.5L, TBI:
