Home >> Pontiac >> 1986 >> J2000/Sunbird L4-112 1.8L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications

System Specifications

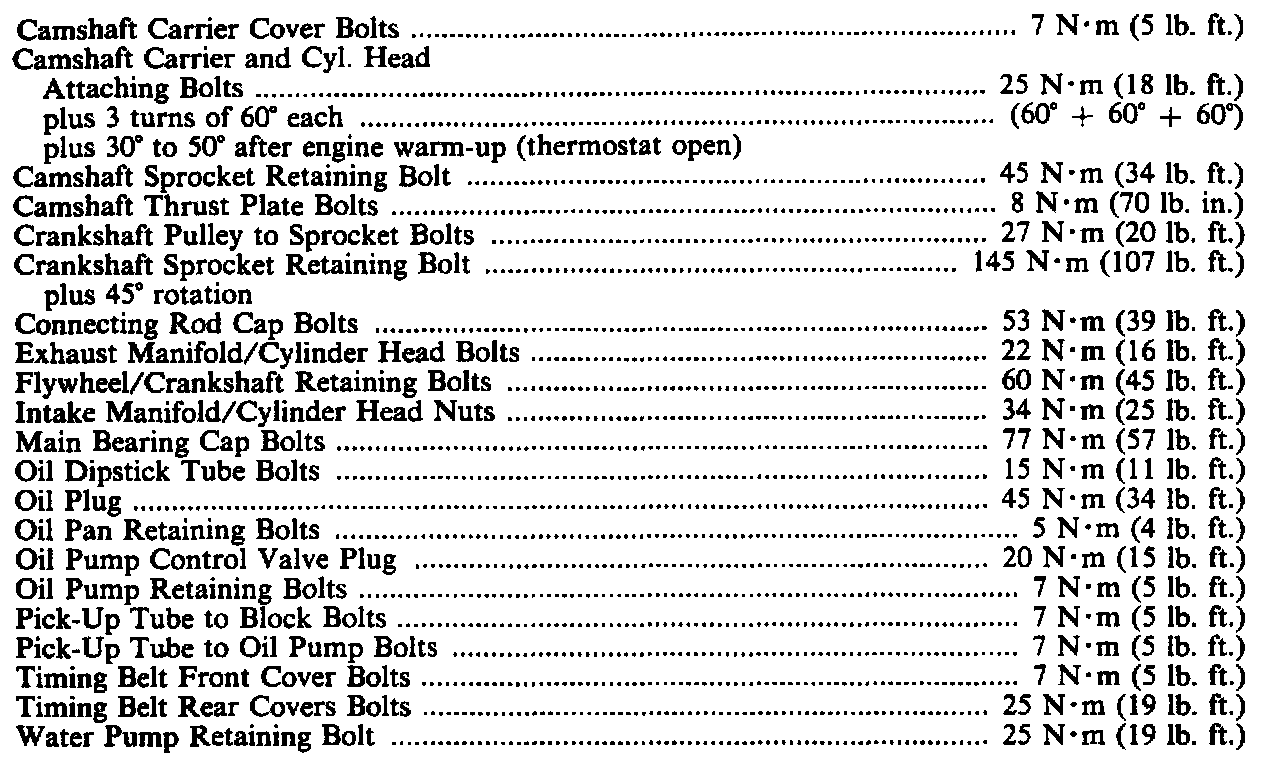

Torque Specifications:

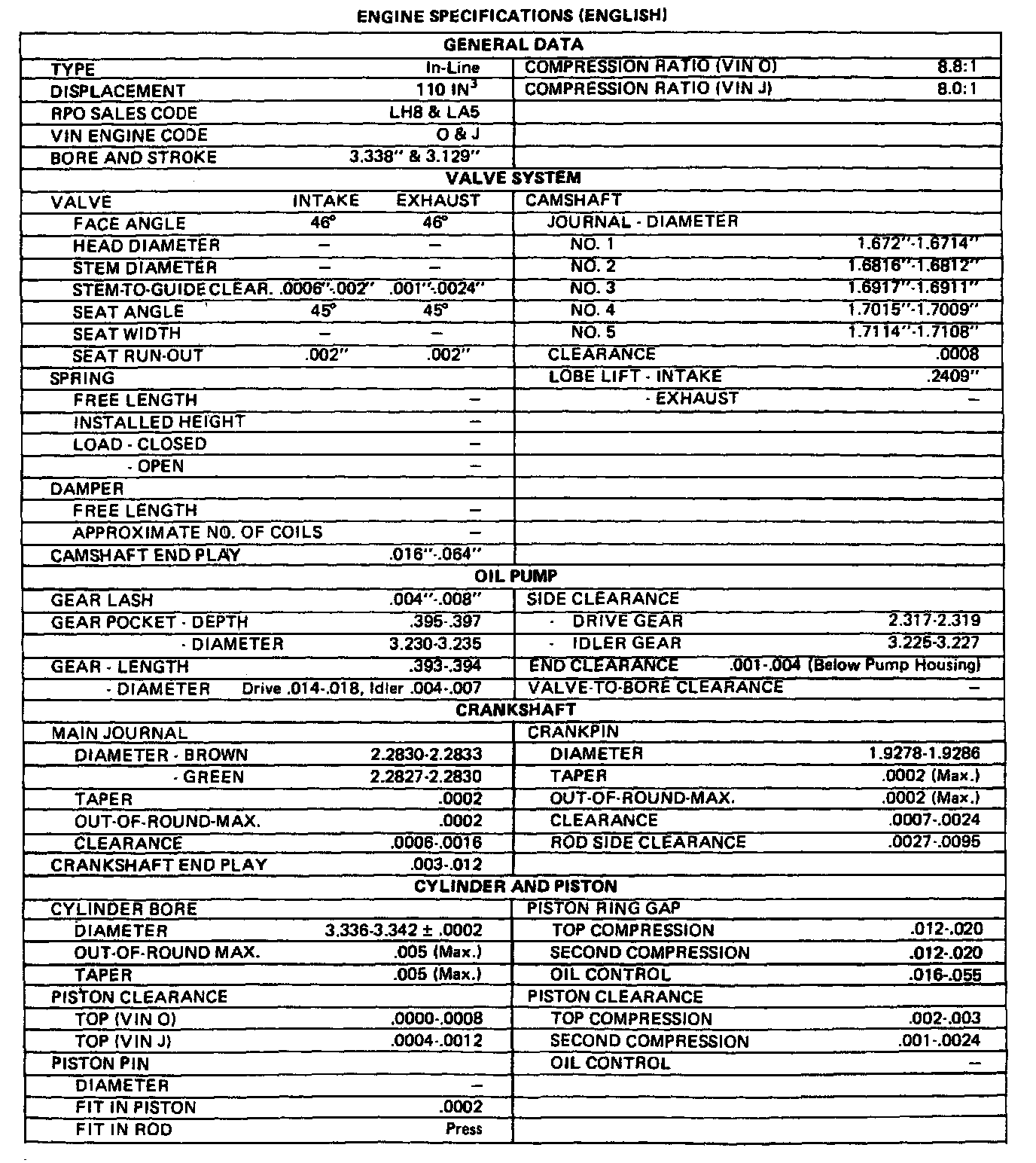

Engine Specifications:

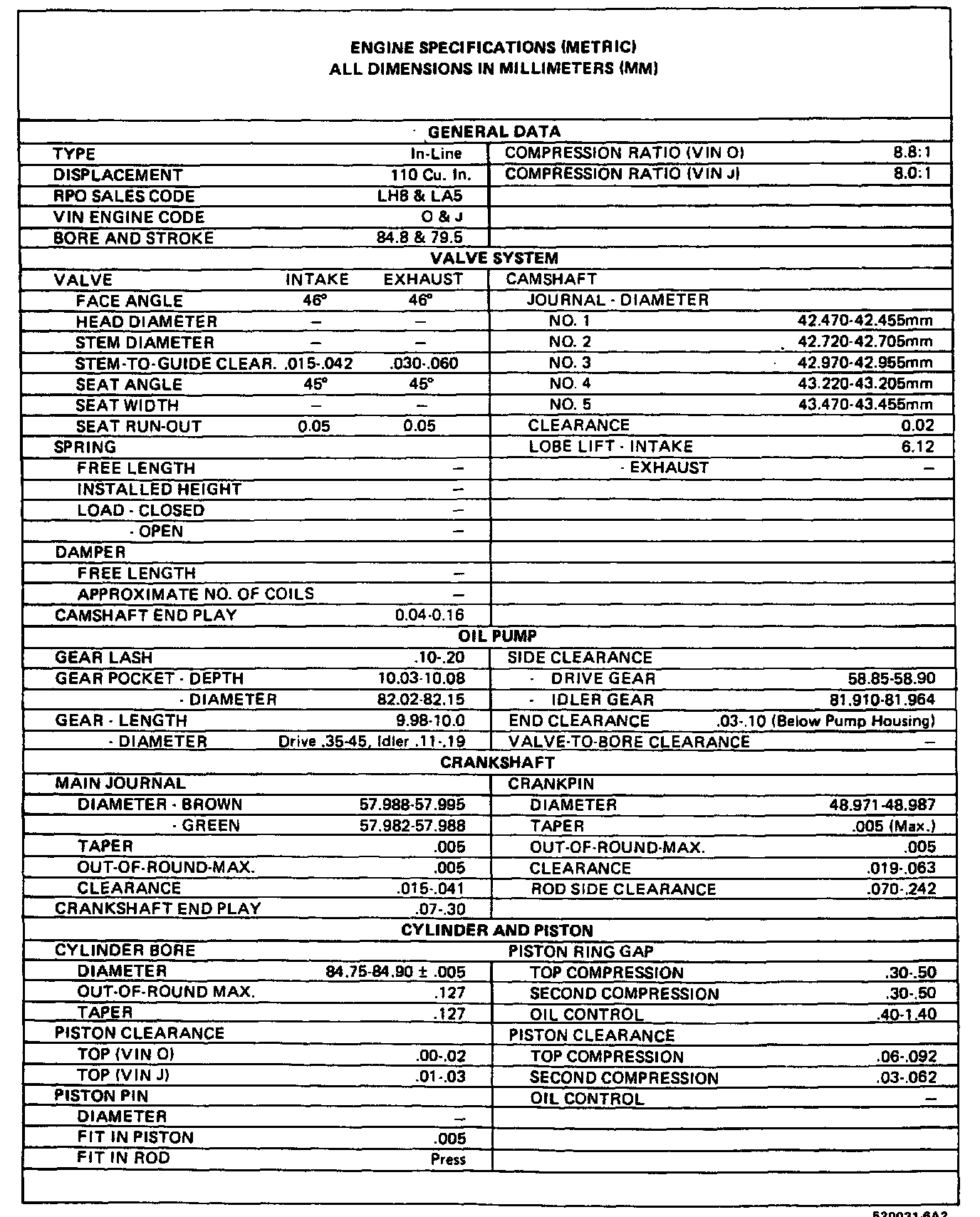

Engine Specifications:

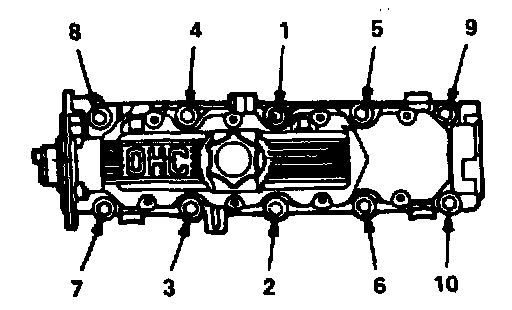

Cylinder Head Torque Sequence:

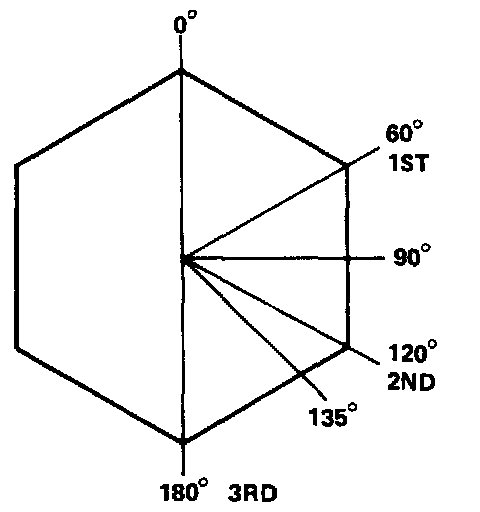

Cylinder Head Torque Degree Chart:
