Home
>>
Pontiac
>>
1986
>>
J2000/Sunbird L4-112 1.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Engine Control Module
>>
With Port Fuel Injection
With Port Fuel Injection

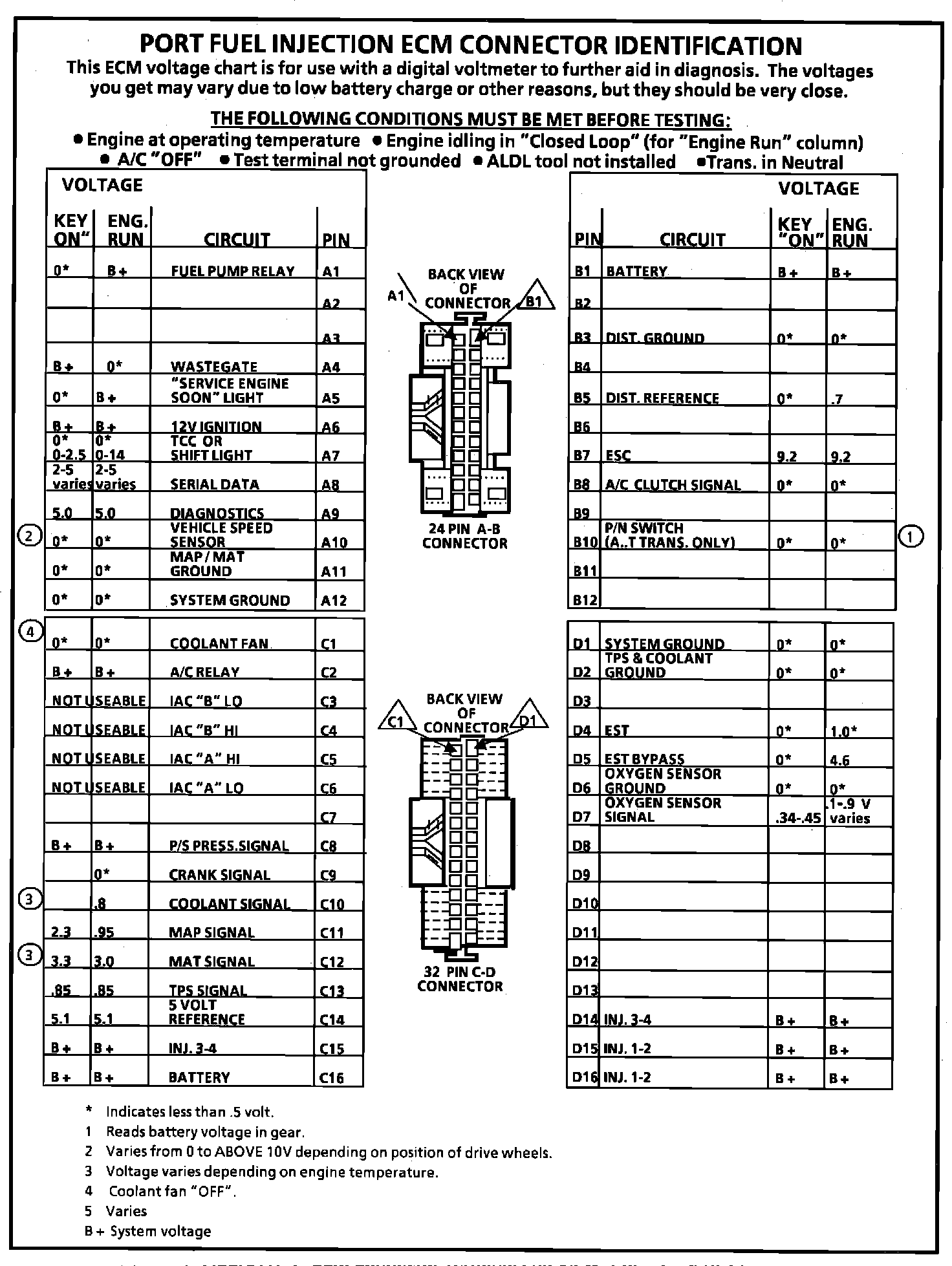

ECM Connector Terminal End View:
