Computer Command Control - Throttle Body Fuel Injection
Computer Command Control - Throttle Body Fuel Injection

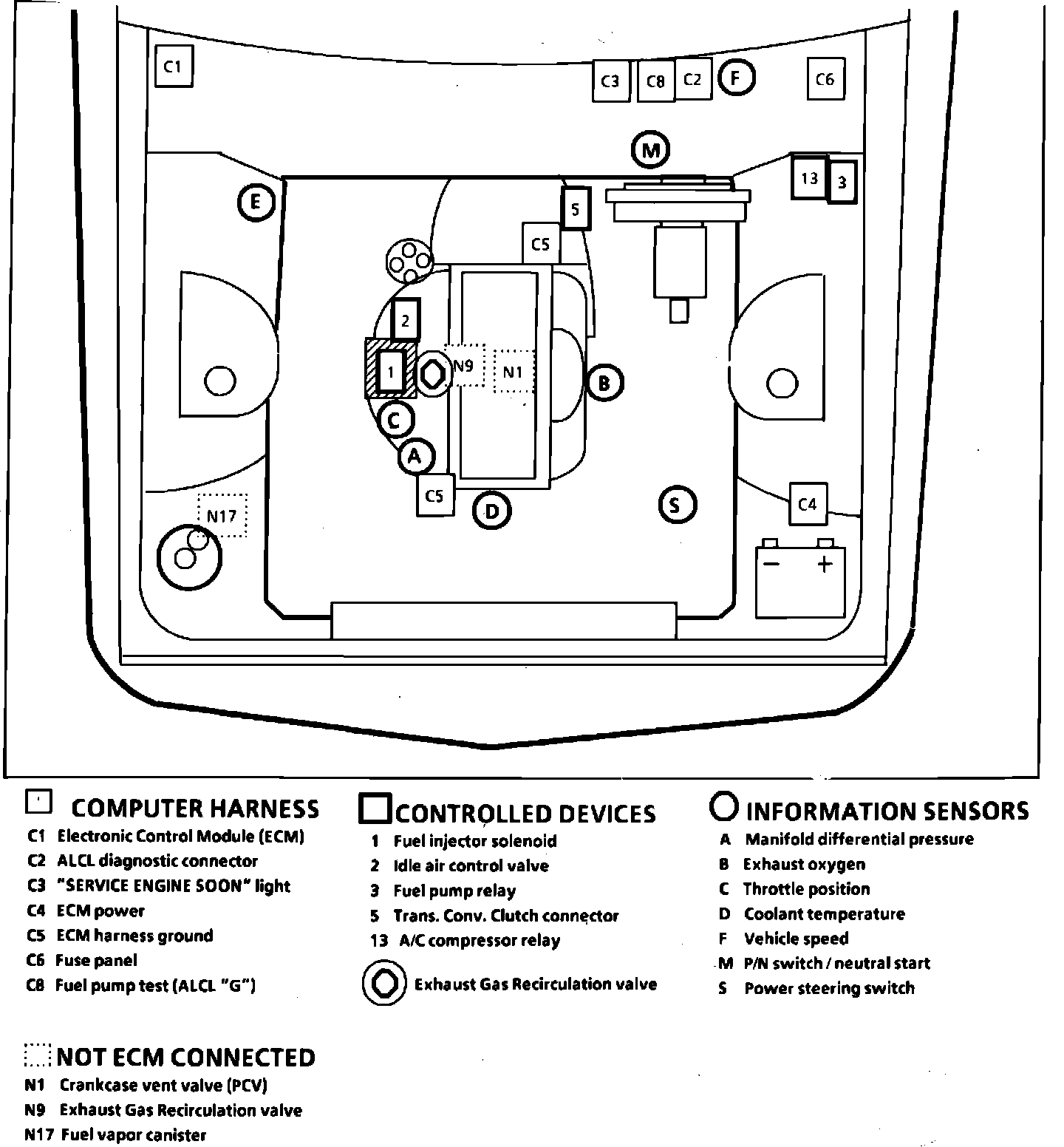

Fig. 56 Emission Component Location. 1986 W/4-151/2.5L, TBI:
