Isolation Relay
Isolation Relay

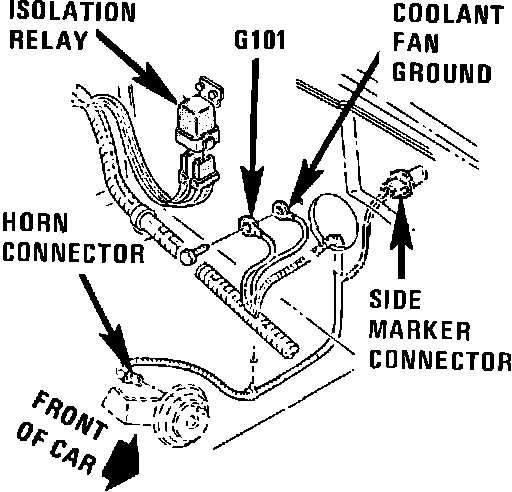

LH Front Corner Of Front Compartment:
LH Side Of Front Compartment, To Rear
Applicable to: 1986
