Home >> Pontiac >> 1986 >> 6000 L4-151 2.5L >> Repair and Diagnosis >> Diagrams >> Components >> Miscellaneous Components >> A/C Diode

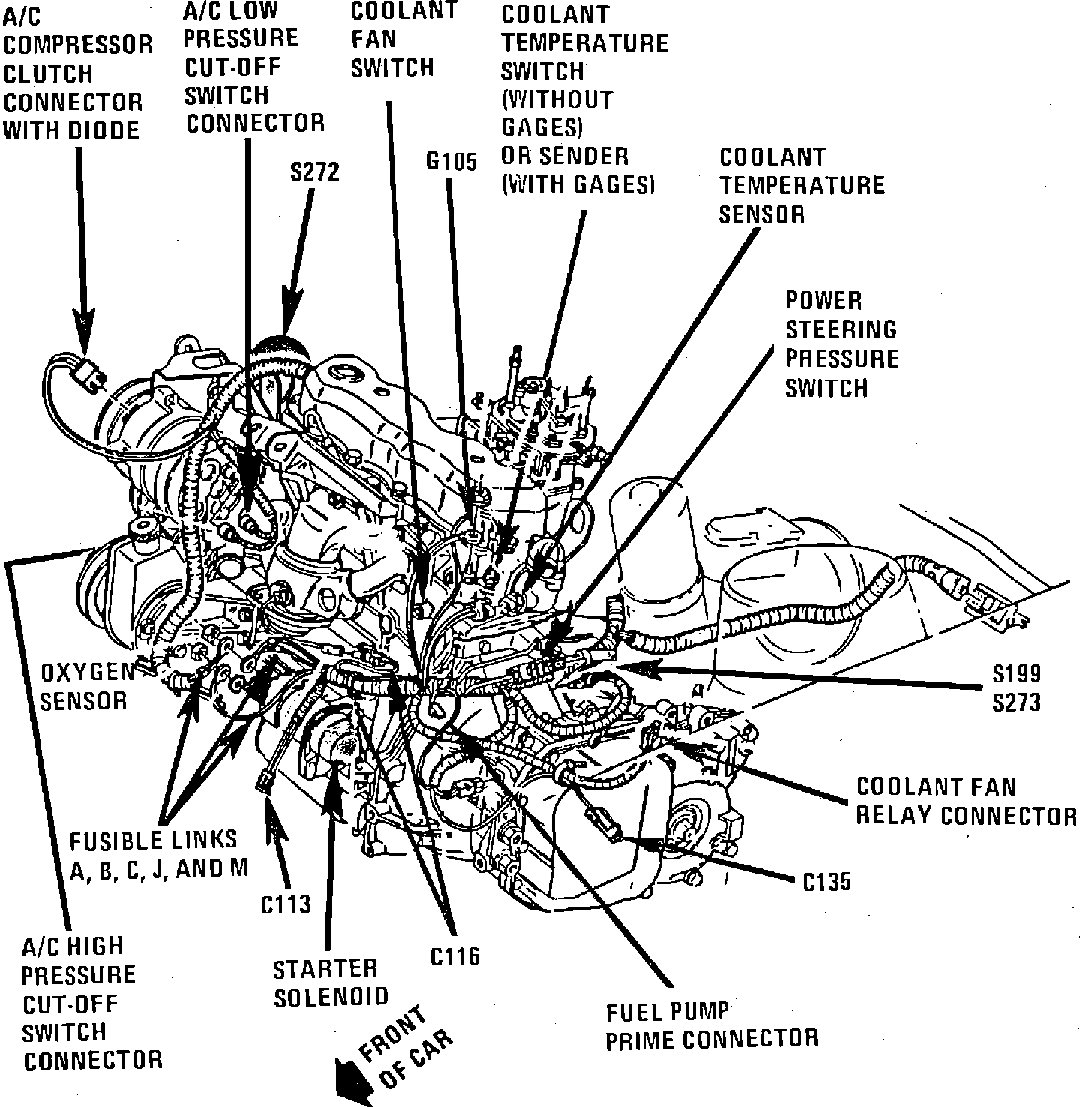

A/C Diode

Front Of VIN R Engine:

A/C Dash Harness, Near Accumulator
