System Specifications

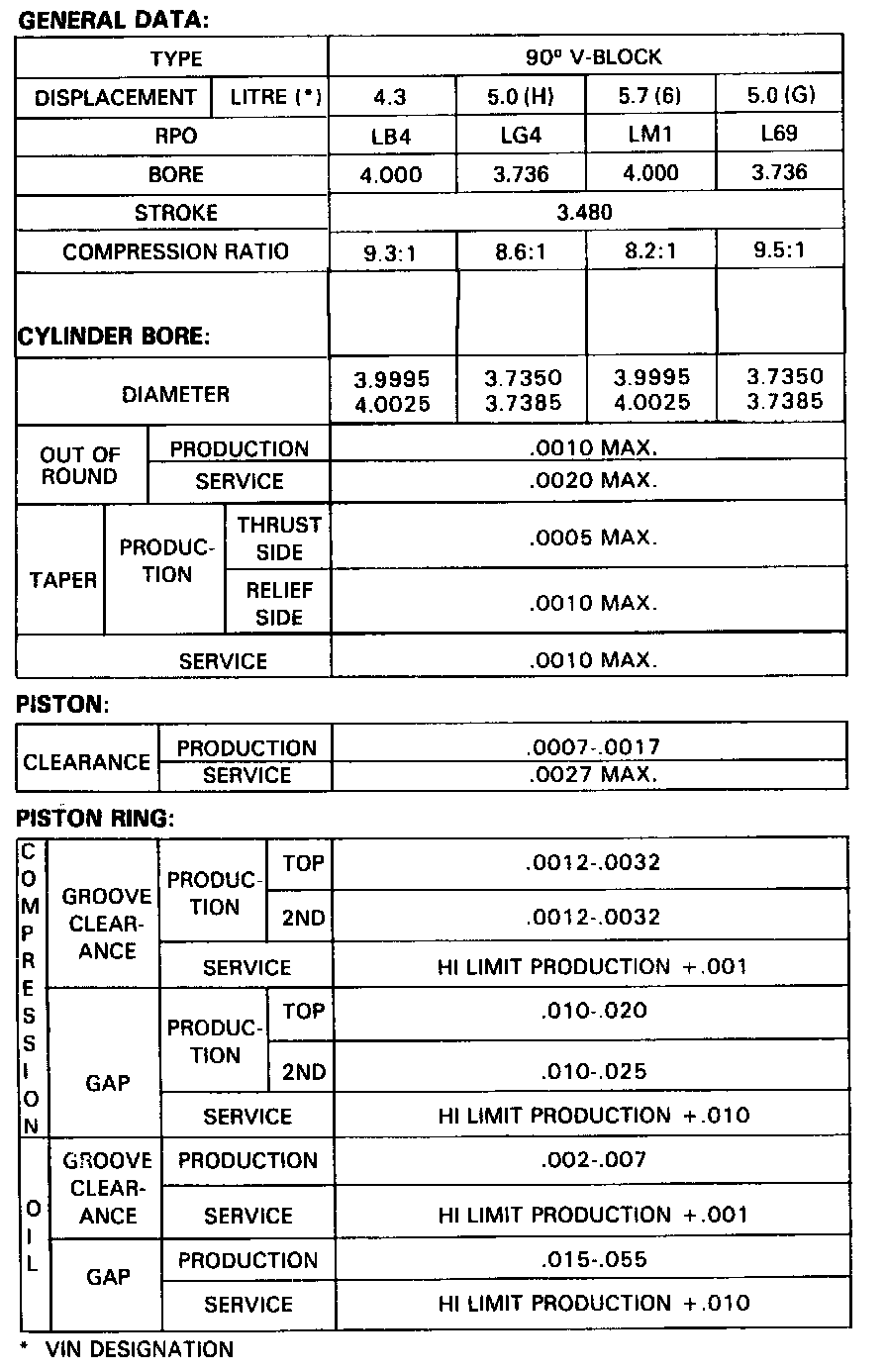

Engine Specifications:

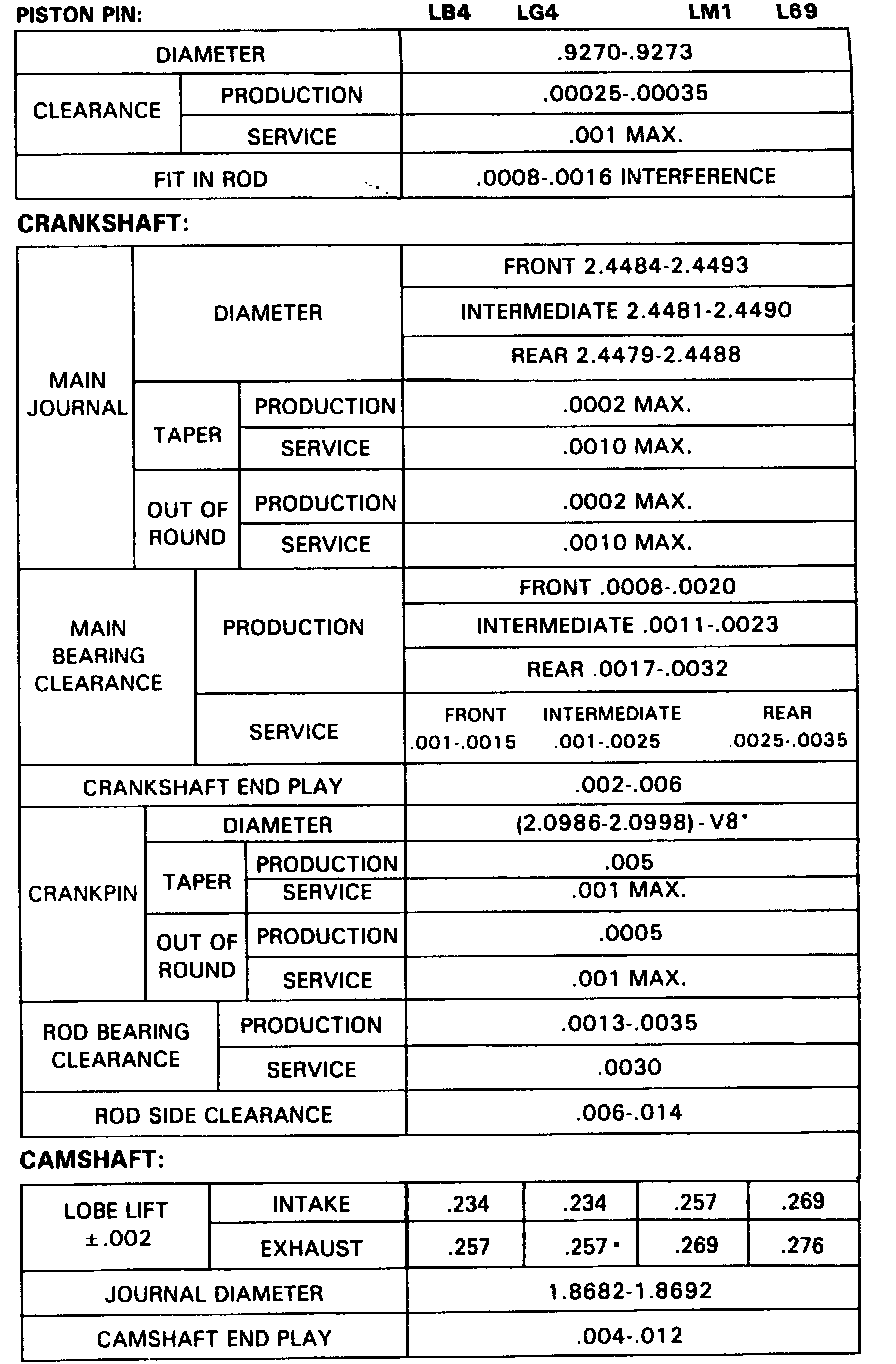

Continued Engine Specifications:

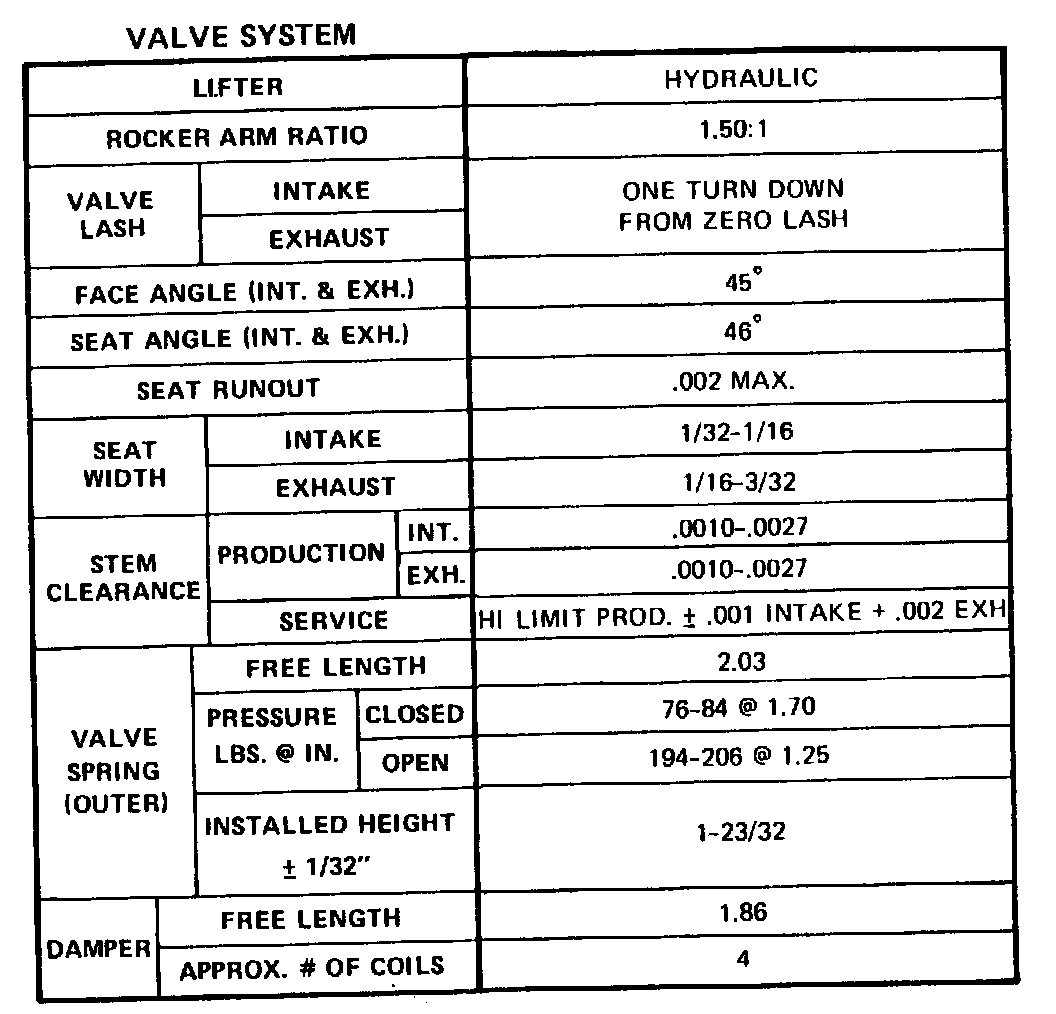

Continued Engine Specifications:

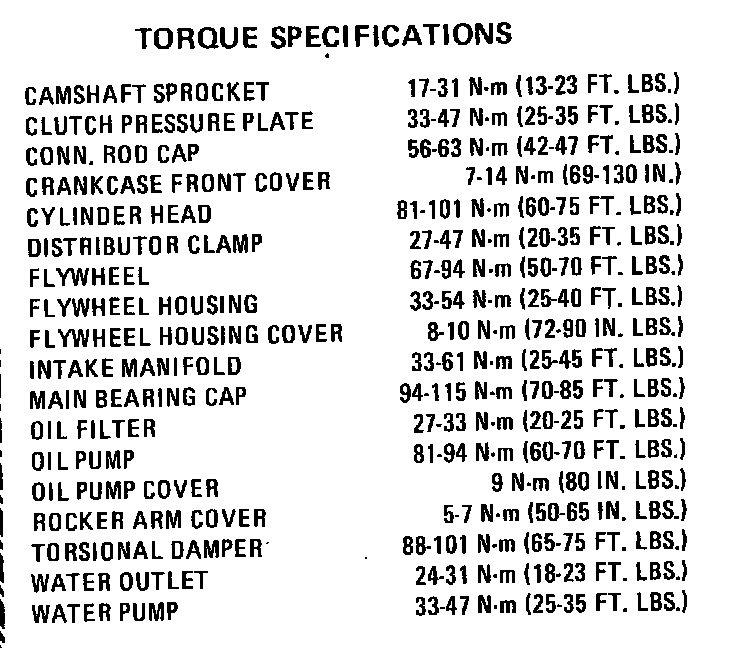

Torque Specifications:

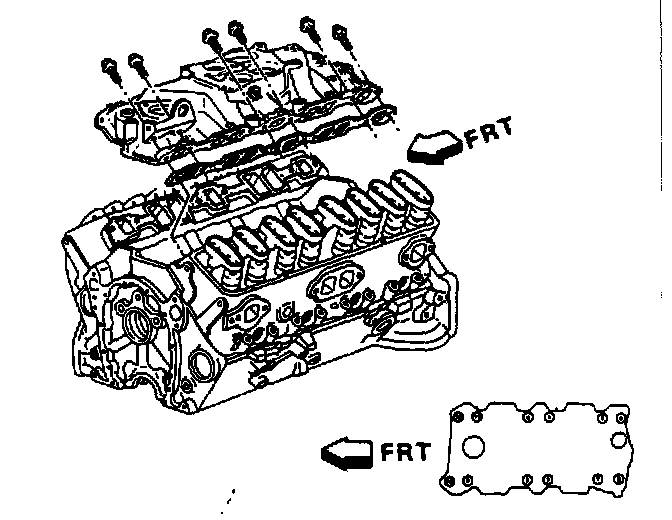

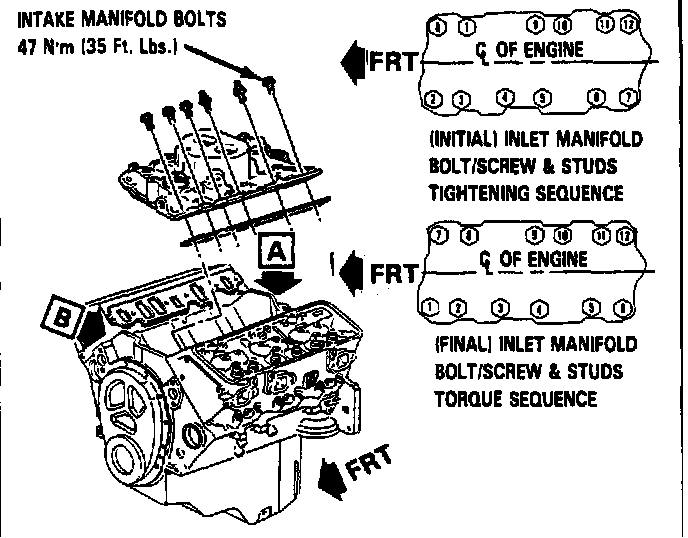

Intake Manifold Sequence V8:





Intake Manifold Sequence V6:

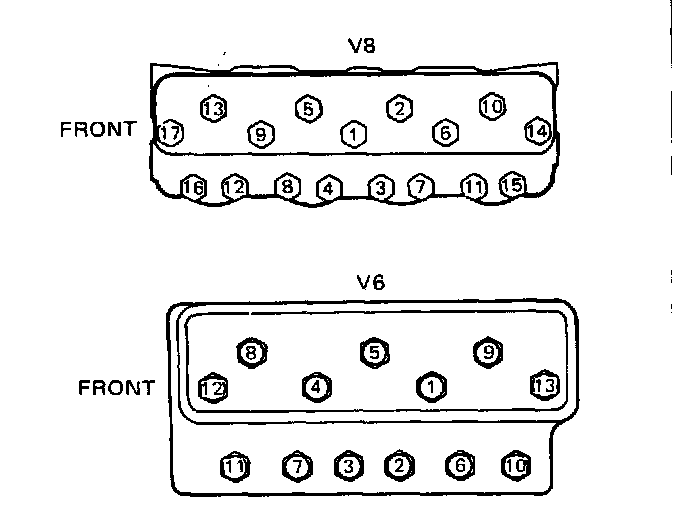

Cylinder Head Sequence:
