Home >> Pontiac >> 1985 >> Grand Prix V6-231 3.8L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module

Engine Control Module

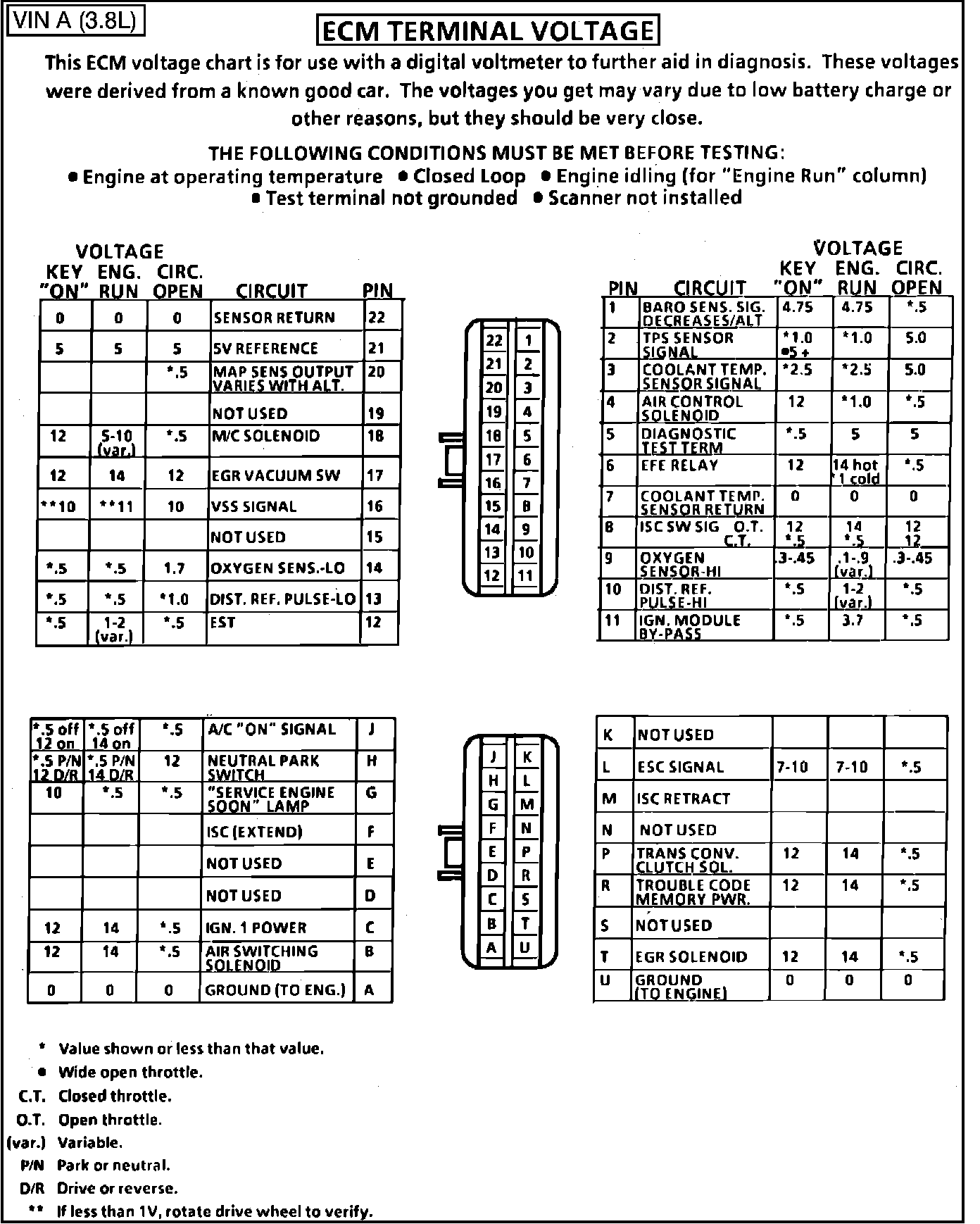

Fig. 014 - ECM Connector Terminal Identification & Voltage Specifications.:
