Knock Sensor
>>
Locations
>>
Electronic Spark Control Module
>>
Carbureted
Carbureted

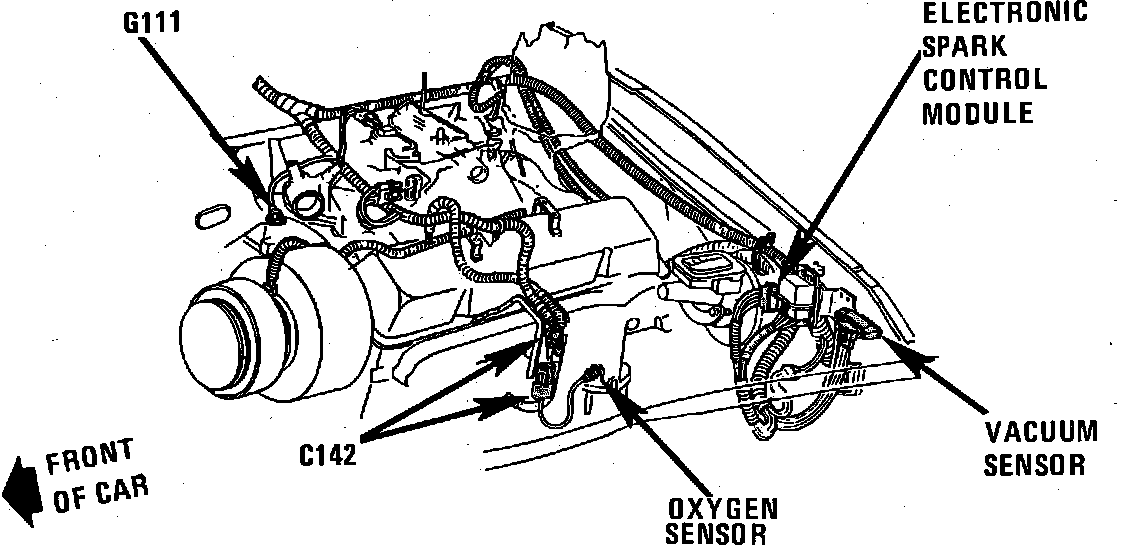

LH Side Of V6-173 Engine:

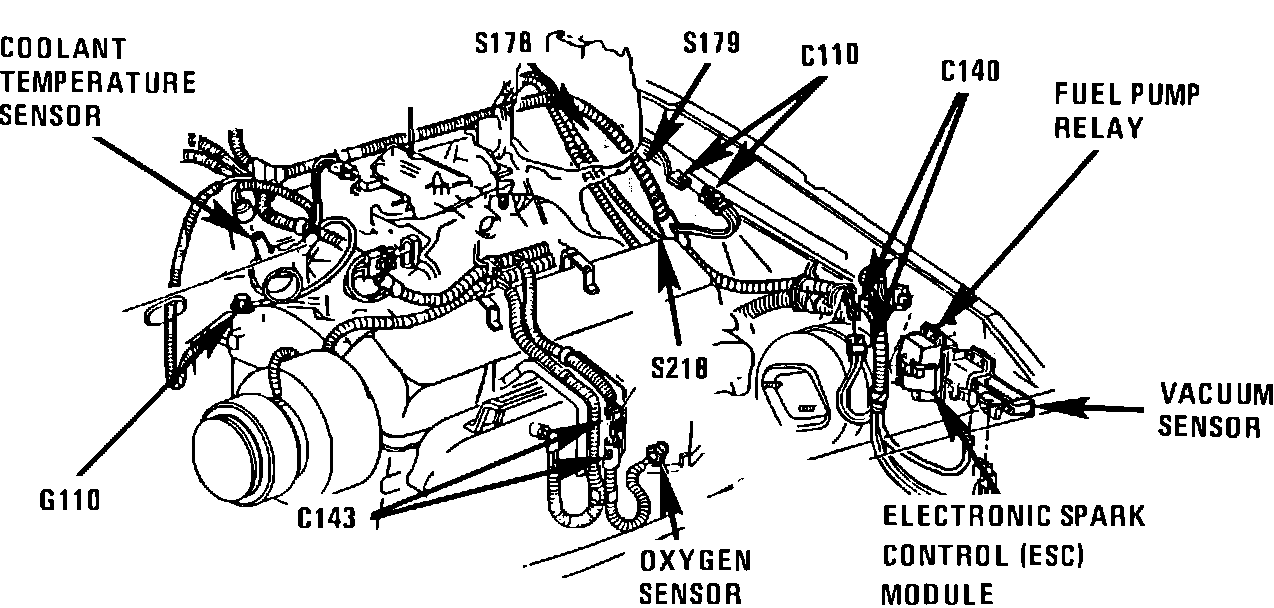

V8-305 Engine Compartment:
LH Front Of Dash, Near Brake Master Cylinder
Applicable to: 1984-85
