Home >> Pontiac >> 1985 >> Firebird V8-305 5.0L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Engine Control Module >> Specifications >> VIN H (5.0L)

VIN H (5.0L)

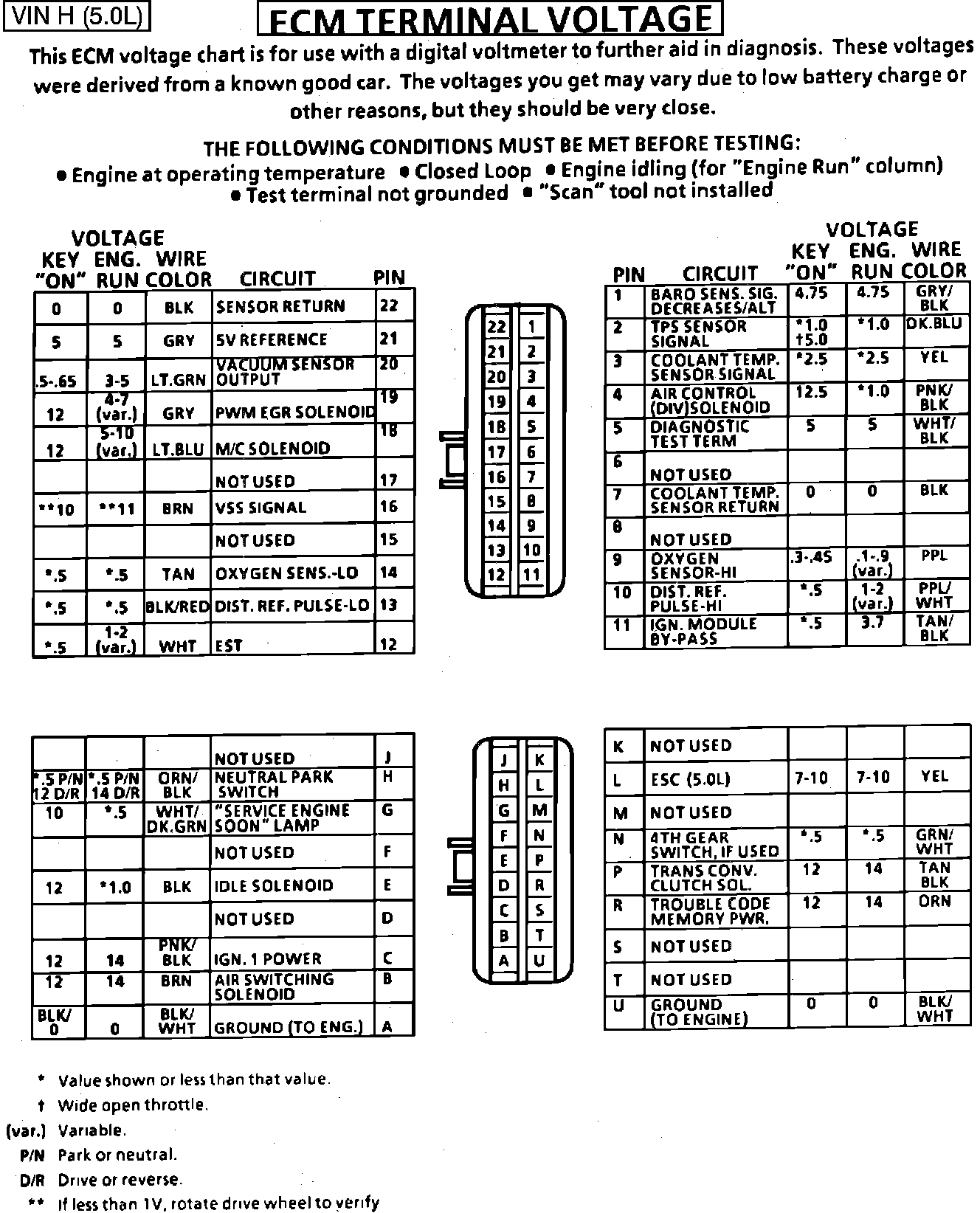

Fig. 027 - ECM Connector Terminal Identification & Voltage Specifications.:
