System Specifications

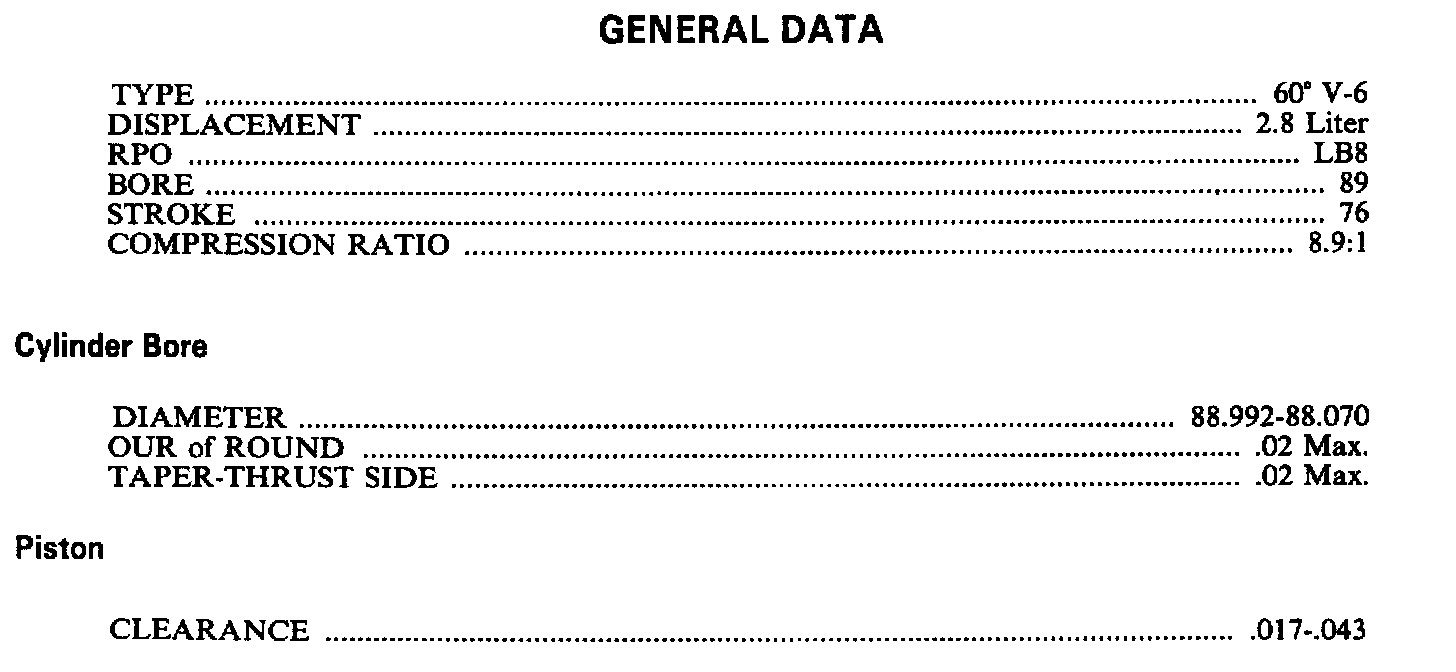

Engine Specifications:

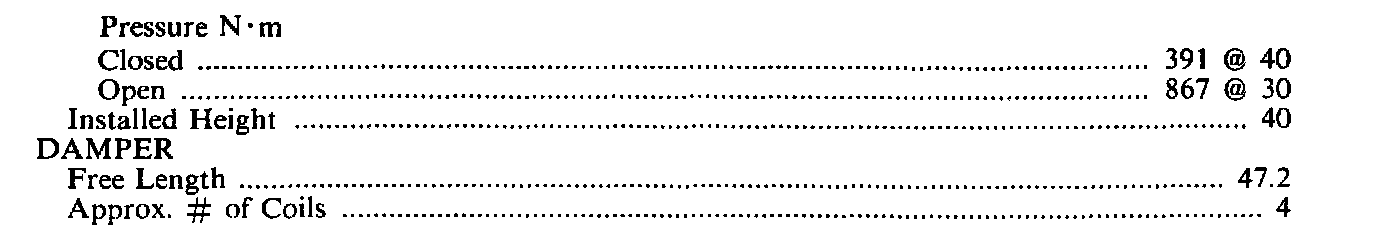

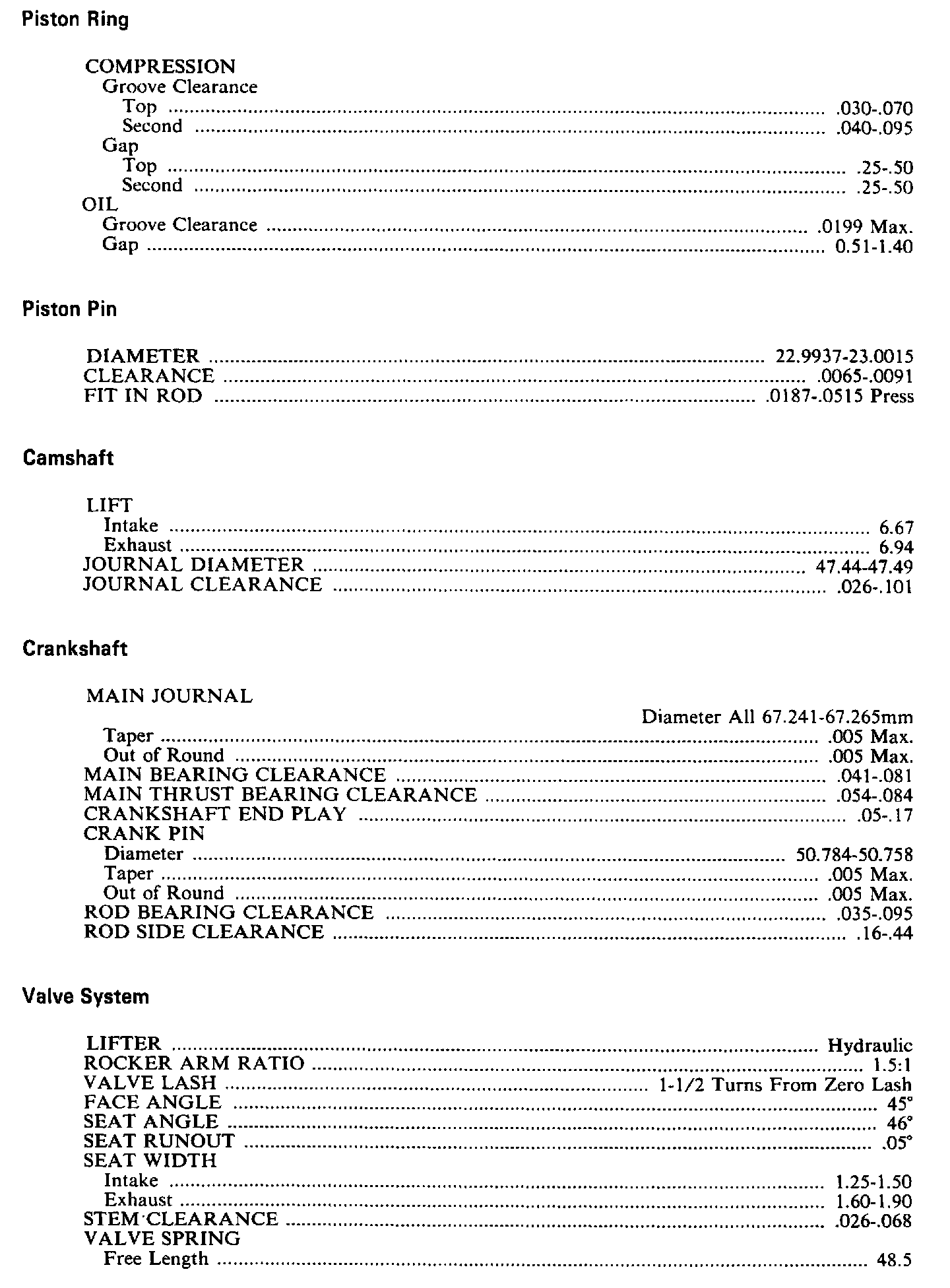

Continued Engine Specifications:




Continued Engine Specifications:

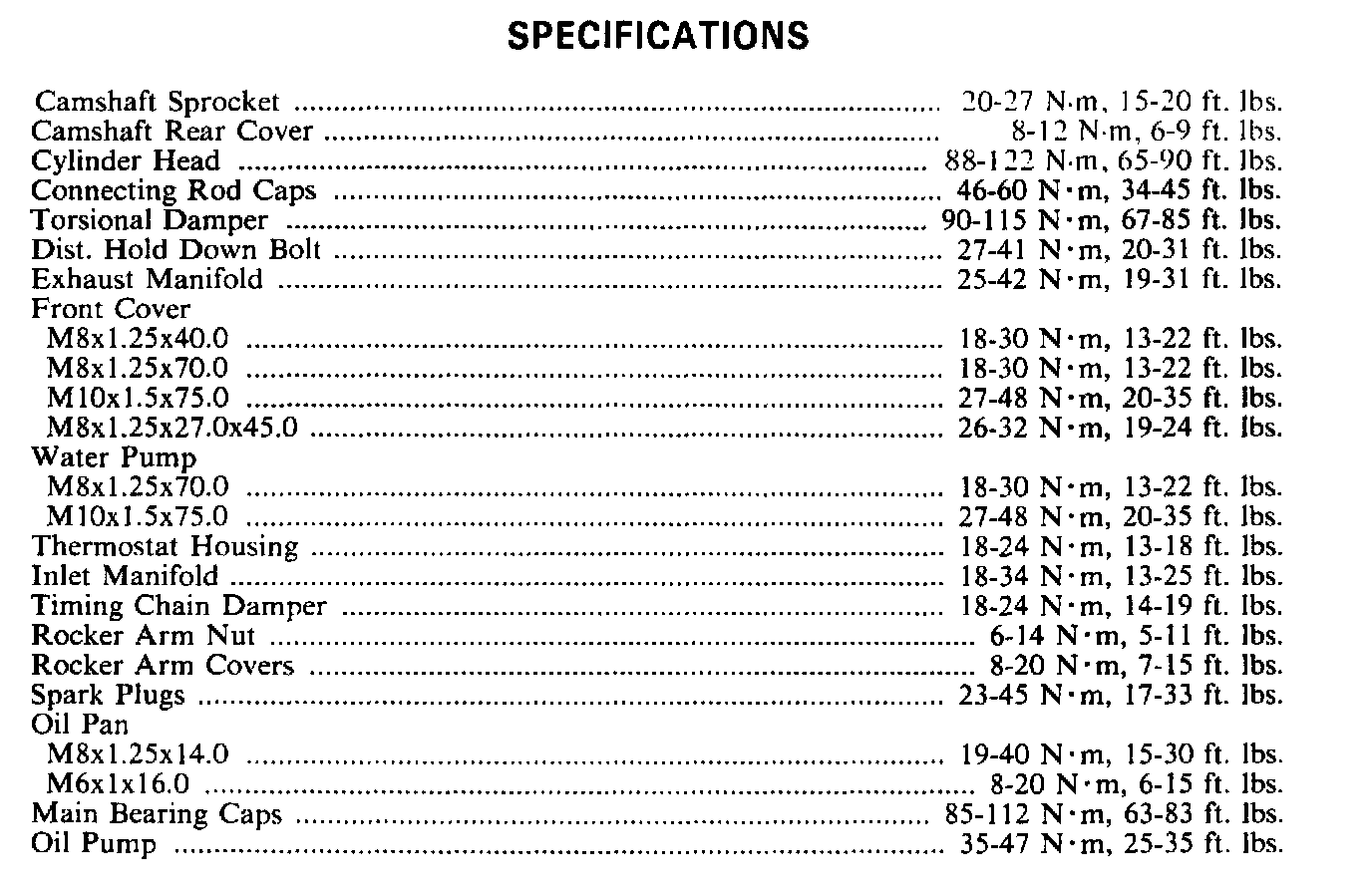

Torque Specifications:

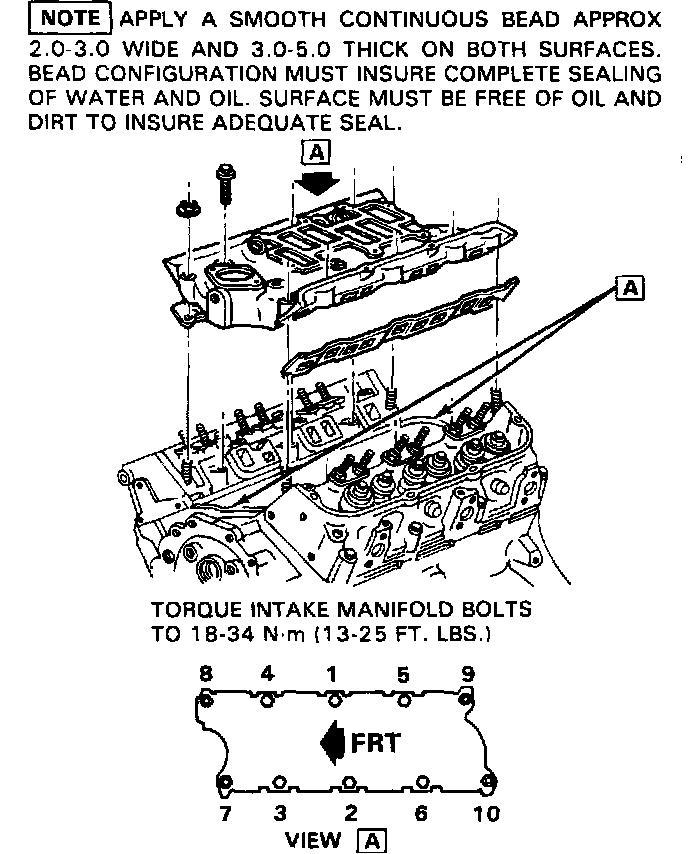

Intake Manifold Sequence:





Cylinder Head Sequence:
