Engine Control Module: Specifications

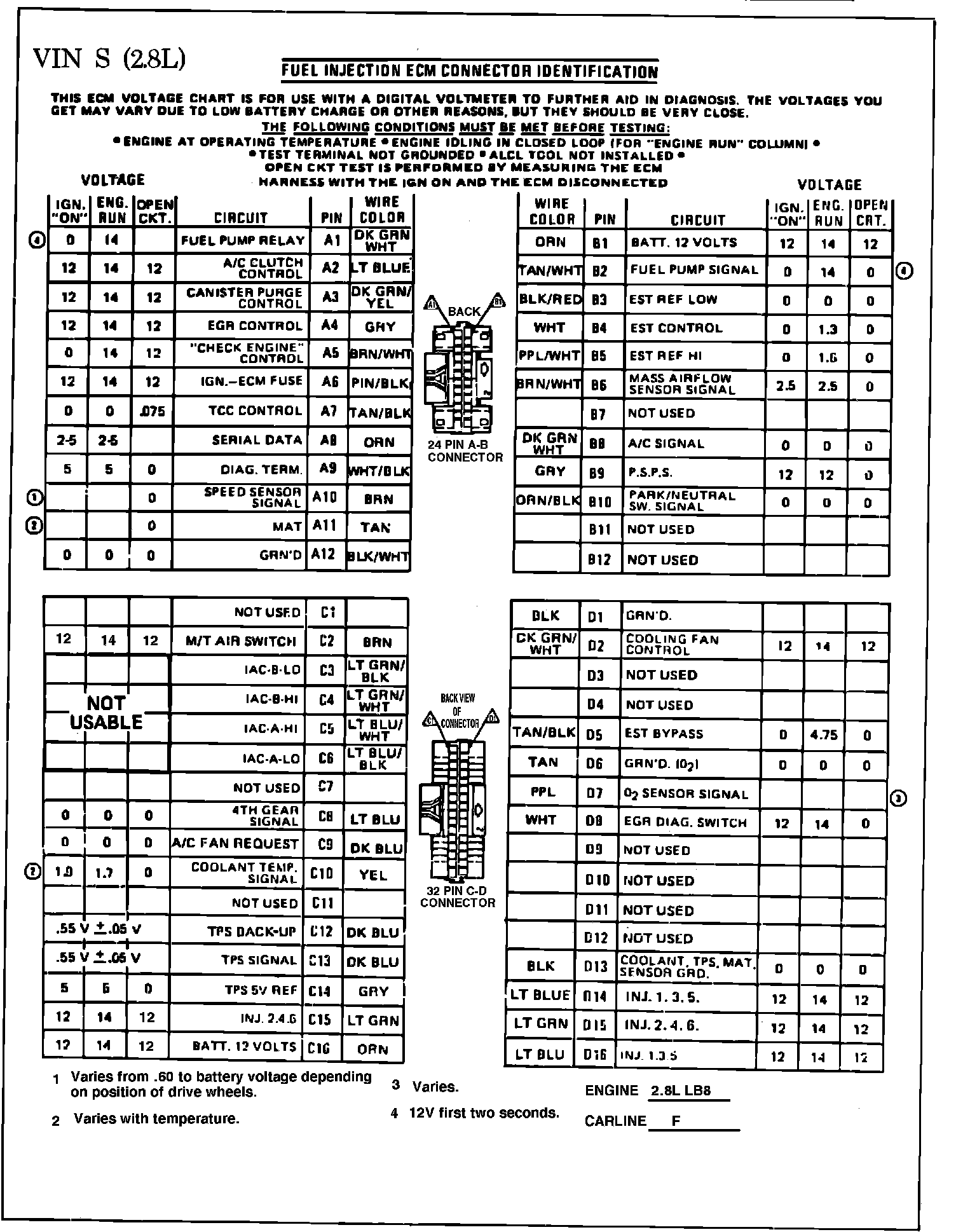

Fig. 033 ECM Connector Terminal Identification & Voltage Specifications:
